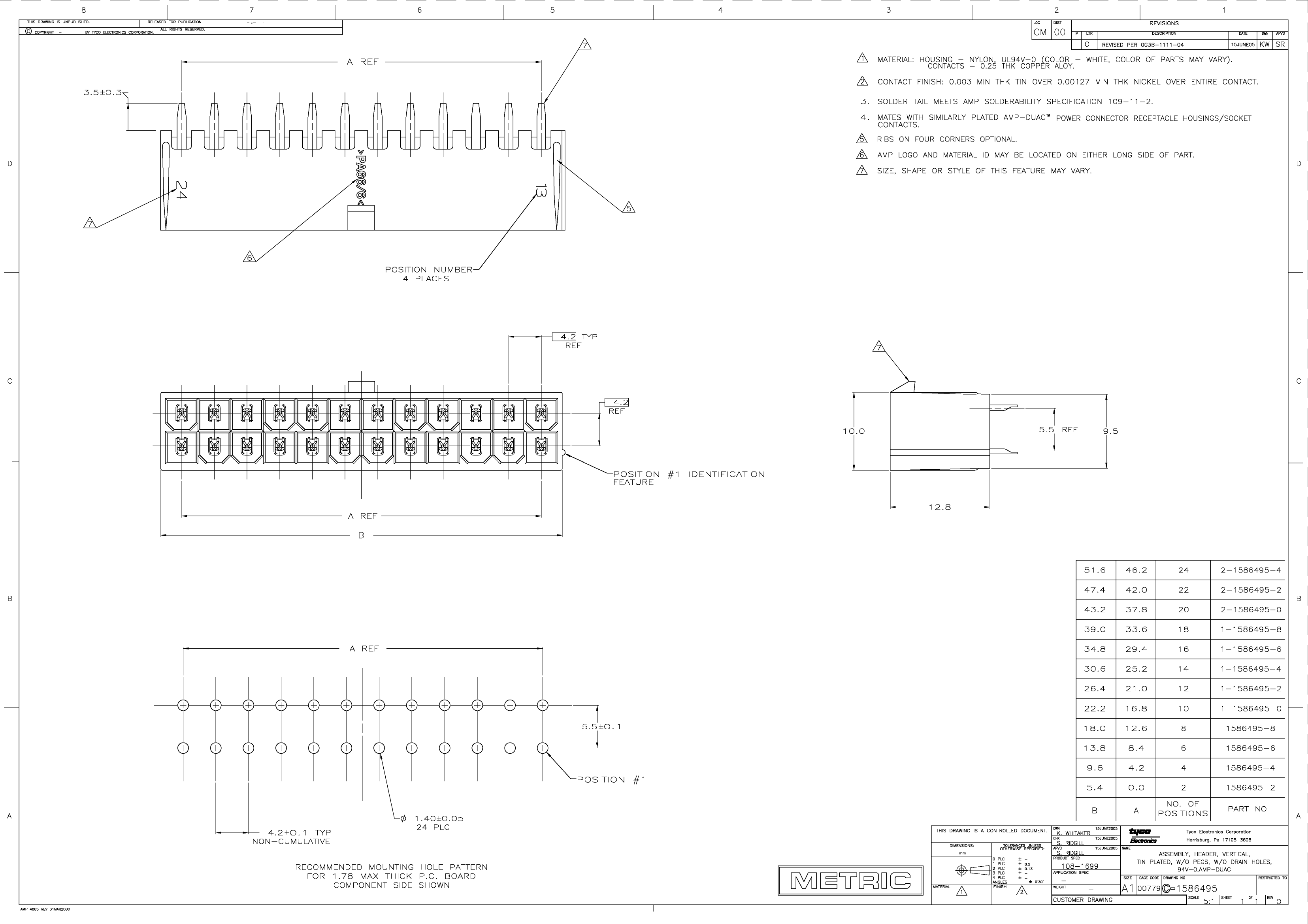

2-1586495-2: Descriptionconn header 22pos vert pcb tin; CategoryThe connector; File Size63KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-1586495-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1586495-2	-	-	View	Buy Now

2-1586495-2 Overview

conn header 22pos vert pcb tin

2-1586495-2 Parametric

Parameter Name	Attribute value
Datasheets
1586495
RoHS Informati
2-1586495-2 Statement of Compliance
RoHS 2 Stateme
3D Model
2-1586495-2.pdf
Standard Package	1,080
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	22
Number of Positions Loaded	All
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Contact Mating Length	-
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Locking Ram
Features	-
Contact Finish	Ti
Contact Finish Thickness	118.1µin (3.00µm)
Col	White
Mating Products	A113054-ND - CONN RECEPT 22POS W/POSTIVE LOCK

Preview

Download Datasheet

View All

2-1586495-2 Related Products

	2-1586495-2	1-1586495-4	1-1586495-8	2-1586495-4	1586495-8	2-1586495-0	1-1586495-6
Description	conn header 22pos vert pcb tin	conn header 14pos vert pcb tin	conn header 18pos vert pcb tin	conn header 24pos vert pcb tin	conn header 8pos vert pcb tin	conn header 20pos vert pcb tin	conn header 16pos vert pcb tin
Standard Package	1,080	16,200	1,260	60	192	84	1,440
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	22	14	18	24	8	20	16
Number of Positions Loaded	All	All	All	All	All	All	All
Pitch	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Number of Rows	2	2	2	2	2	2	2
Row Spacing	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Fastening Type	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Contact Finish Thickness	118.1µin (3.00µm)	118.1µin (3.00µm)	118.1µin (3.00µm)	118.1µin (3.00µm)	118.1µin (3.00µm)	118.1µin (3.00µm)	118.1µin (3.00µm)
Col	White	White	White	White	White	White	White
Mating Products	A113054-ND - CONN RECEPT 22POS W/POSTIVE LOCK	A111805-ND - 14P DUAC REC HSG	A112829-ND - CONN RCPT 18POS .165 NATURALA111807-ND - CONN RECEPT 18POS W/POSTIVE LOCK	A113271-ND - CONN RCPT HOUSING 24POS NATURAL2-106527-4-ND - CONN RECEPT 24POS W/POSTIVE LOCK	106527-8-ND - CONN RECEPT 8POS W/POSTIVE LOCK	2-106527-0-ND - CONN RECEPT 20POS W/POSTIVE LOCK	1-794657-6-ND - CONN RCPT 16POS .165 NATURALA111806-ND - CONN RECEPT 16POS W/POSTIVE LOCK
