F-214
SQW–112–01–F–D–VS–LC
SQW–114–01–F–6
TM
(2,00 mm) .0787"
SQW–111–01–L–6

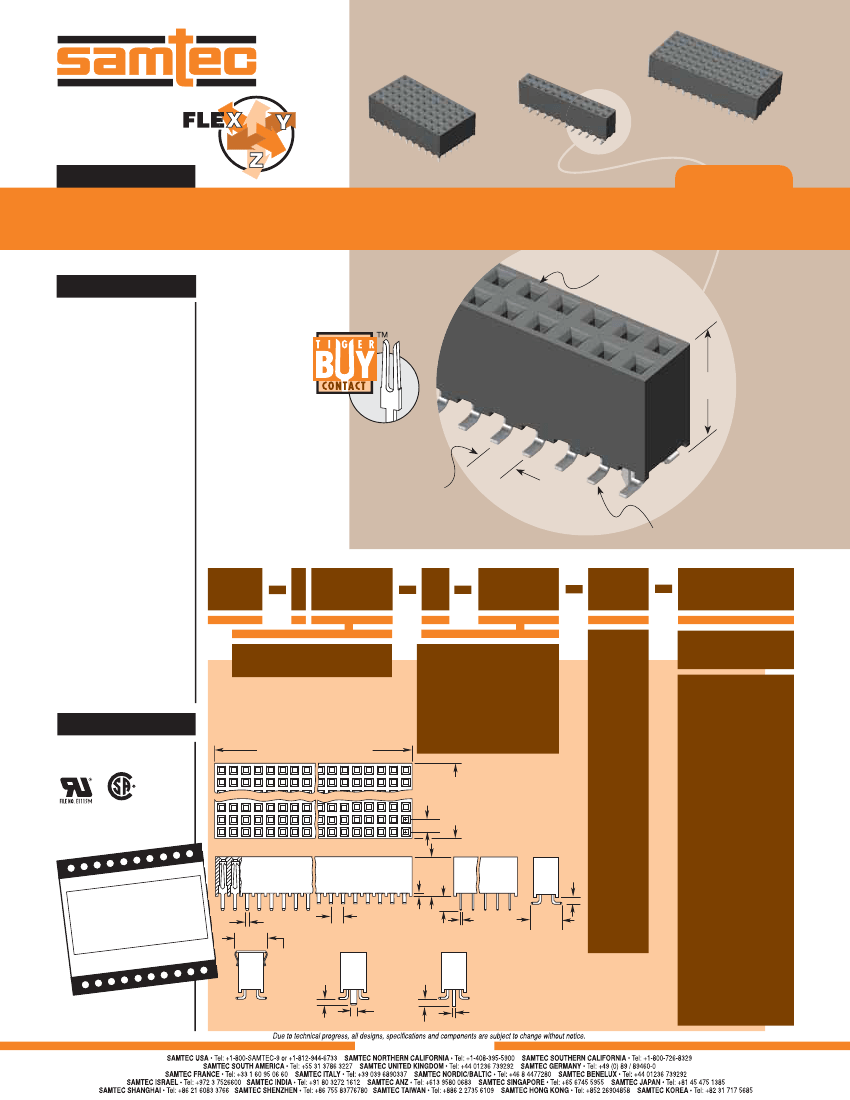

SQW SERIES
COST-EFFECTIVE RUGGED SOCKETS
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?SQW
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
Phosphor Bronze
Plating:
Sn or Au over
50µ" (1,27 µm) Ni
Current Rating (SQW/TMMH):
3.8 A per pin
(1 pin powered per row)
Voltage Rating:
500 VAC mated with
TMM or TMMH
Operating Temp Range:
-55°C to +125°C
Contact Resistance:
10 mΩ
Insertion Depth:
(2,62 mm) .103" to
(5,03 mm) .198" with
(0,38 mm) .015" wipe
Insertion Force:
(Single contact only)
1.8 oz (0,50 N) avg.
Withdrawal Force:
(Single contact only)
1.0 oz (0,28 N) avg.
Max Cycles:
100 with 10µ" (0,25 µm) Au
RoHS Compliant:
Yes
Mates with:
TMMH, TMM,
MTMM, MMT,
TW, TSH, TCMD,
LTMM, PTT
Choice of two
through six rows
(7,62 mm)
.300"
(2,00 mm)
.0787"
pitch
Choice of Surface Mount
or Through-hole
SQW
1
NO. PINS
PER ROW
01
PLATING
OPTION
ROW
OPTION
OPTION
Processing:
Lead–Free Solderable:
Yes, for -D & -D-VS
(Wave only for -T, -Q, -5 & -6)
SMT Lead Coplanarity:
(0,15 mm) .006" max
02 thru 50
–F
= Gold flash on contact,
Matte Tin on tail
–D
= Double
Row
–“XXX”
= Polarized Position
–D–VS only options:
–L
300
–D–VS
= Double
Row
Surface
Mount
–A
= Alignment Pin
(5 positions minimum)
Metal or plastic at
Samtec discretion.
(N/A with -LC)
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
No. of positions x
(2,00) .0787 + (0,30) .012
= 10µ" (0,25 µm)
Gold on contact,
Matte Tin on tail
06
FILE NO: 090871_0_000
(2,00) No. of
.0787 rows
TYP
x
(2,00)
.0787
295
01
–T
= Triple
Row
–LC
= Locking Clip
(5 positions minimum)
(N/A with -A)
(Manual placement
required)
–Q
= Four
Row
ILITY
L AVAILAB
APE & REE
T
arges.
(6,35)
.250
(2,00)
.0787
(0,38)
(0,25)
.015
(2,29) .010 TYP
.090
–D, –T, –Q,
–5, –6
(1,27)
.050
(0,25)
.010
x
(1,42)
.056
–LC OPTION
(1,27)
.050
–5
= Five
Row
–K
= (4,25 mm) .167" DIA
Polyimide Film
Pick & Place Pad
(4 positions minimum)
No tooling ch e lesser of
er is th
Minimum ordntity or 125 pieces.
qua
a full reel antity above minimum.
u
Order any q design, manufacture.
In-house turn-around.
Quick
tions
for specifica
Call Samtecring information.
and orde
(0,51) .020
(4,74)
.187
–D–VS
–6
= Six
Row
–P
= Pick & Place Pad
(4 positions minimum)
(5,72)
.225
x
(5,13)
.202
–P OPTION
(0,89)
.035
(1,09)
.043
DIA
–A OPTION
–TR
= Tape & Reel
Packaging
(4 thru 28 positions only)
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
WWW.SAMTEC.COM
