DG309CJ-4 datasheet, PDF - EEWORLD Datasheet

DG309CJ-4: DescriptionSPST, 4 Func, CMOS, PDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size361KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

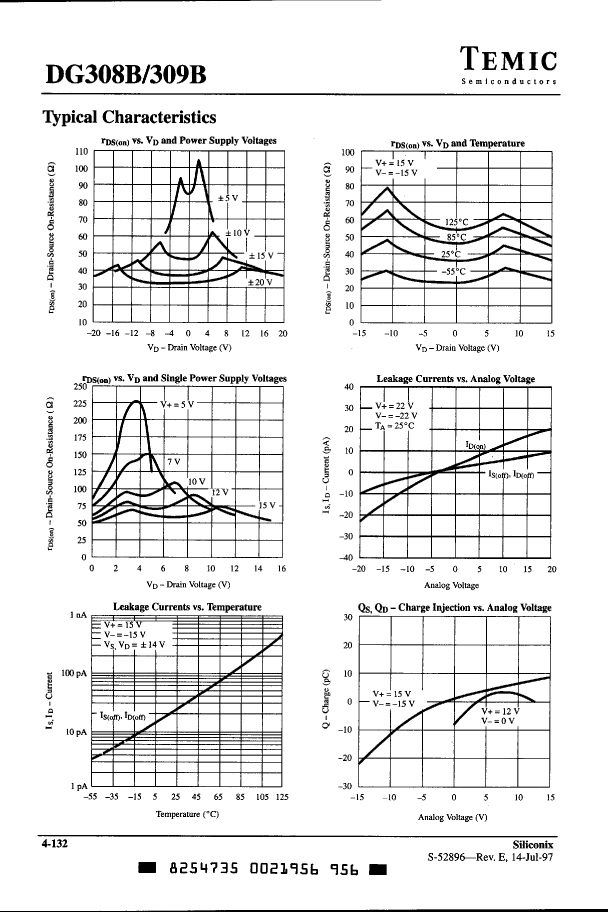

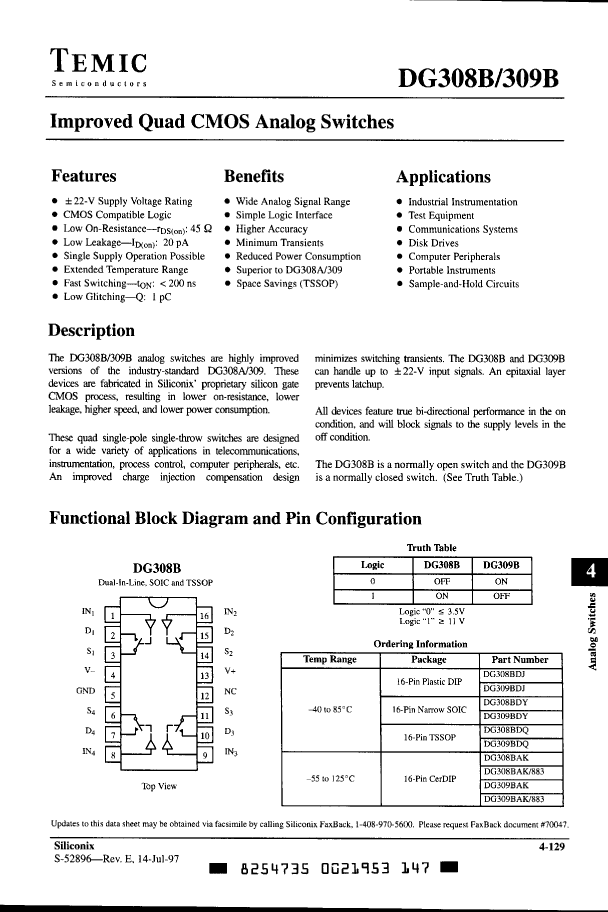

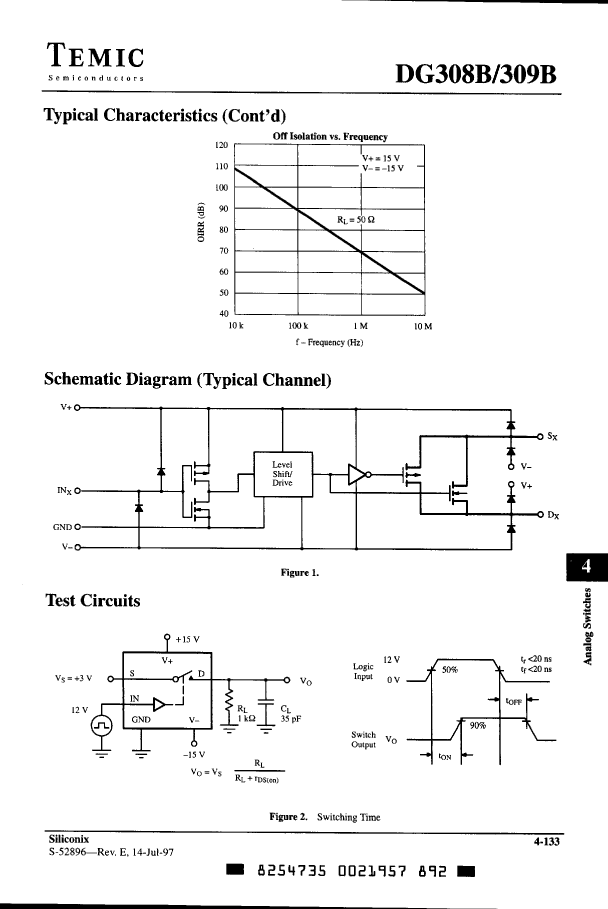

DG309CJ-4 Overview

SPST, 4 Func, CMOS, PDIP16

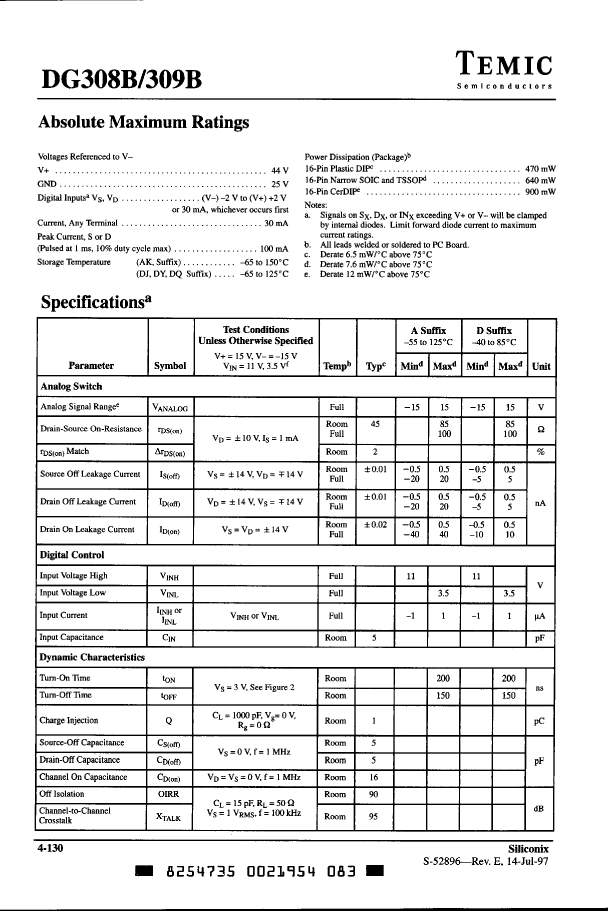

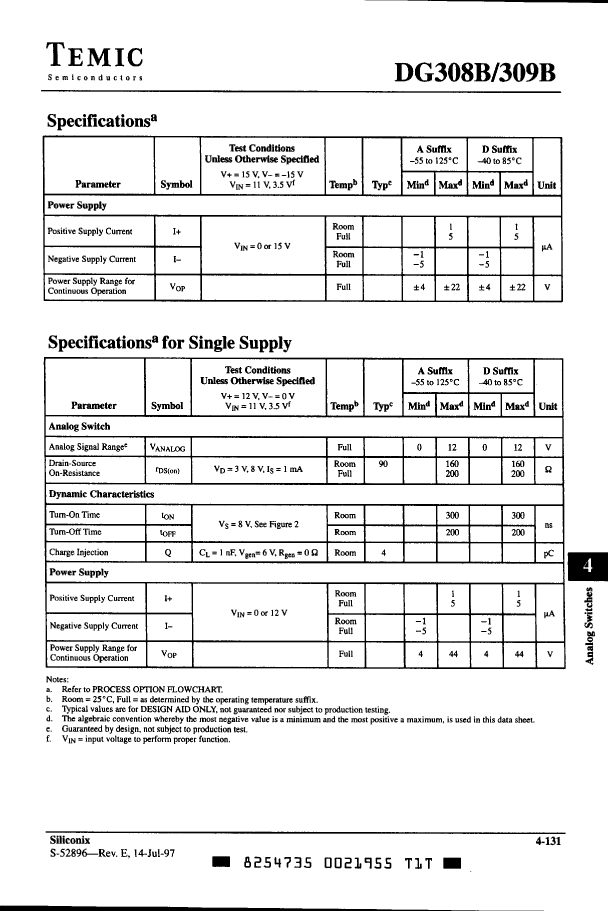

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of functions	4
Number of terminals	16
Maximum on-state resistance (Ron)	125 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum connection time	200 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	DG309CJ-4	DG308ACY	DG309CY
Description	SPST, 4 Func, CMOS, PDIP16	Multiplexers/Switches,	Multiplexers/Switches
Maker	Vishay	Vishay	Vishay
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	,
Reach Compliance Code	unknown	unknown	unknown
Is it Rohs certified?	incompatible	incompatible	-
Analog Integrated Circuits - Other Types	SPST	SPST	-
JESD-30 code	R-PDIP-T16	R-PDSO-G16	-
JESD-609 code	e0	e0	-
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-
normal position	NC	NO	-
Number of functions	4	4	-
Number of terminals	16	16	-
Maximum on-state resistance (Ron)	125 Ω	125 Ω	-
Maximum operating temperature	70 °C	70 °C	-
output	SEPARATE OUTPUT	SEPARATE OUTPUT	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	SOP	-
Encapsulate equivalent code	DIP16,.3	SOP16,.25	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	SMALL OUTLINE	-
power supply	+-15 V	+-15 V	-
Nominal supply voltage (Vsup)	15 V	15 V	-
surface mount	NO	YES	-
Maximum connection time	200 ns	200 ns	-
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-
technology	CMOS	CMOS	-
Temperature level	COMMERCIAL	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	GULL WING	-
Terminal pitch	2.54 mm	1.27 mm	-
Terminal location	DUAL	DUAL	-
