NRPN082MAMP-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> NRPN082MAMP-RC

NRPN082MAMP-RC: Descriptionconn header 2mm dual smd 16pos; CategoryThe connector The connector; File Size313KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

NRPN082MAMP-RC Overview

conn header 2mm dual smd 16pos

NRPN082MAMP-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Sullins Connector Solutions
Reach Compliance Code	compli
Board mount options	PEG
body width	0.157 inch
subject depth	0.087 inch
body length	0.63 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	NRP
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.5466 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	16

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

644

1071

1811

2024

DESCRIPTION

INITIAL RELEASE

ADD DIMENSION

UPDATE VIEWS, P/N CODING, POSI. CHART,

TOLERANCE & GUIDE POST LENGTH DIM.

HEAD HEIGHT 3.60 WAS 4.00, UPDATE PCB LAYOUT

& WARP TOLERANCE

DATE

6/15/2005

6/22/2006

1/15/2009

8/11/09

B±.020 [ .35]

.157 4.00

A±.010 [ .25]

.079±.002 2.00±0.05

.020 0.50

.079±.002 2.00±0.05

.142±.008 3.60±0.20

.059 1.50

.087 2.20

.018±.008 0.45±0.20

.256±.012 6.50±0.30

A±.004 [ .10]

C±.004 [ .10]

.006 [0.15] A

2X .089 2.25

.039 1.00

OPTIONAL

C±.008 [ .20]

02-20, 0.20mm MAX.

21-30, 0.30mm MAX.

31-40, 0.40mm MAX.

.079±.002 2.00±0.05

.040±.002 1.02±0.05

.047±.002 1.20±0.05

.063 1.60

.116±.002 2.95±0.05

NOTES:

1. INSULATOR MATERIAL: NYLON 6T, UL 94V-0.

2. CONTACT MATERIAL: BRASS.

3. CONTACT PLATING: GOLD FLASH OVERALL.

4. CURRENT RATING: 1 AMP.

5. VOLTAGE RATING: 150 V AC/DC.

6. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

7. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

8. DIELECTRIC WITHSTANDING: 500 VAC.

9. OPERATING TEMPERATURE: -40° C TO +105° C.

10. *PROCESSING TEMP.: 260° C FOR 10 SECS MAX.

.295±.004 7.50±0.10

RECOMMENDED PCB LAYOUT

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT

INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,

PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR

DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

oHS COMPLIANT

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR: 5

.XX= .01 [.2]

.XXX= .006 [.15]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

1/15/09

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

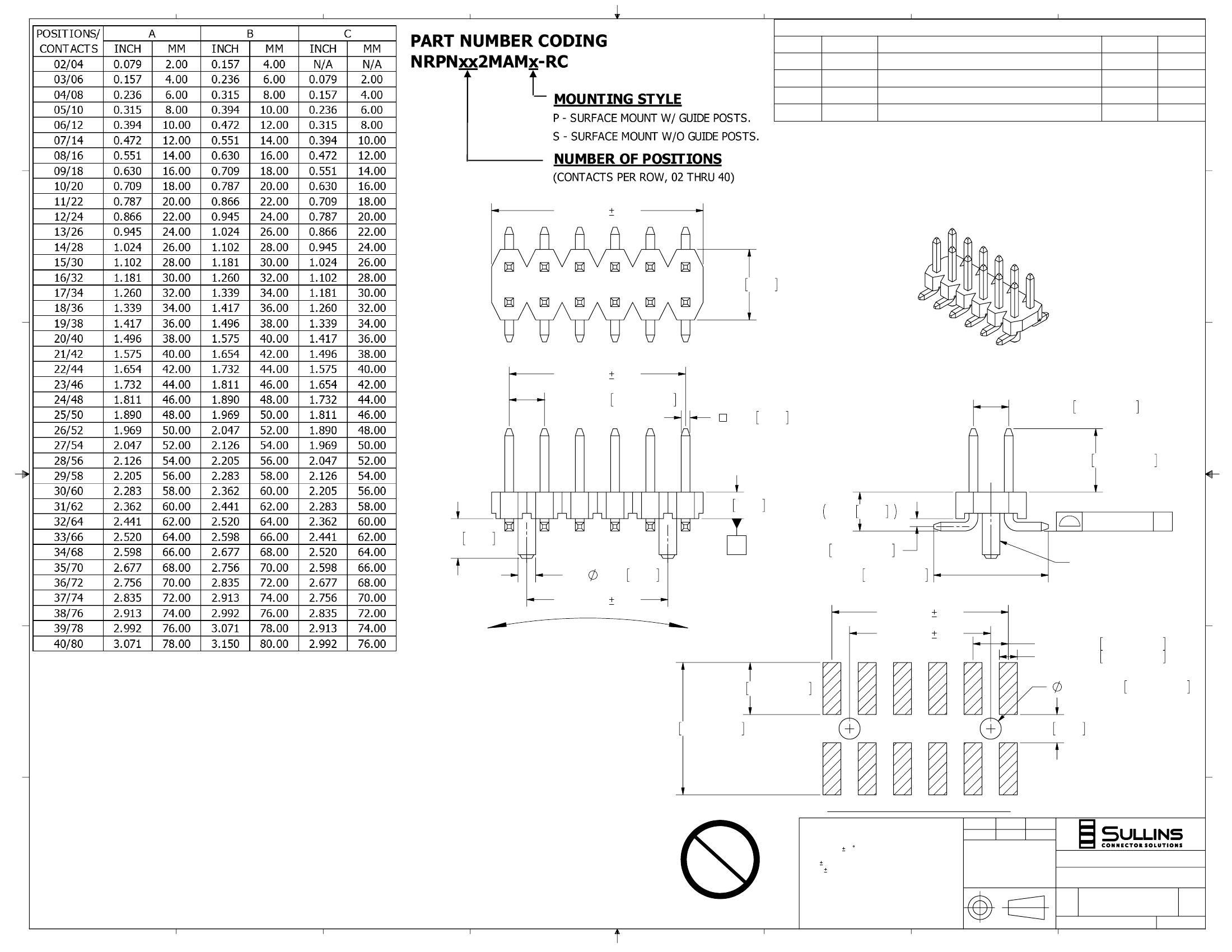

HEADER, MALE 2mm CC, 2 ROWS, SMT

NRPNxx2MAMx-RC

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: 16:1

REV

10495

SHEET 1 OF 1

FILE NAME: Z:\ECO PENDING\2024\10495, NRPNxx2MAMx-RC PRINT: 11/24/2009
