BF140-20C0610-0440-0960-0300NG datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF140-20C0610-0440-0960-0300NG

BF140-20C0610-0440-0960-0300NG: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Right Angle Reverse, 0.079 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF140-20C0610-0440-0960-0300NG Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle Reverse, 0.079 inch Pitch, Solder Terminal, Receptacle,

BF140-20C0610-0440-0960-0300NG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304448326
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.378 inch
subject depth	0.24 inch
body length	0.787 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
Manufacturer's serial number	BF140
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE REVERSE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

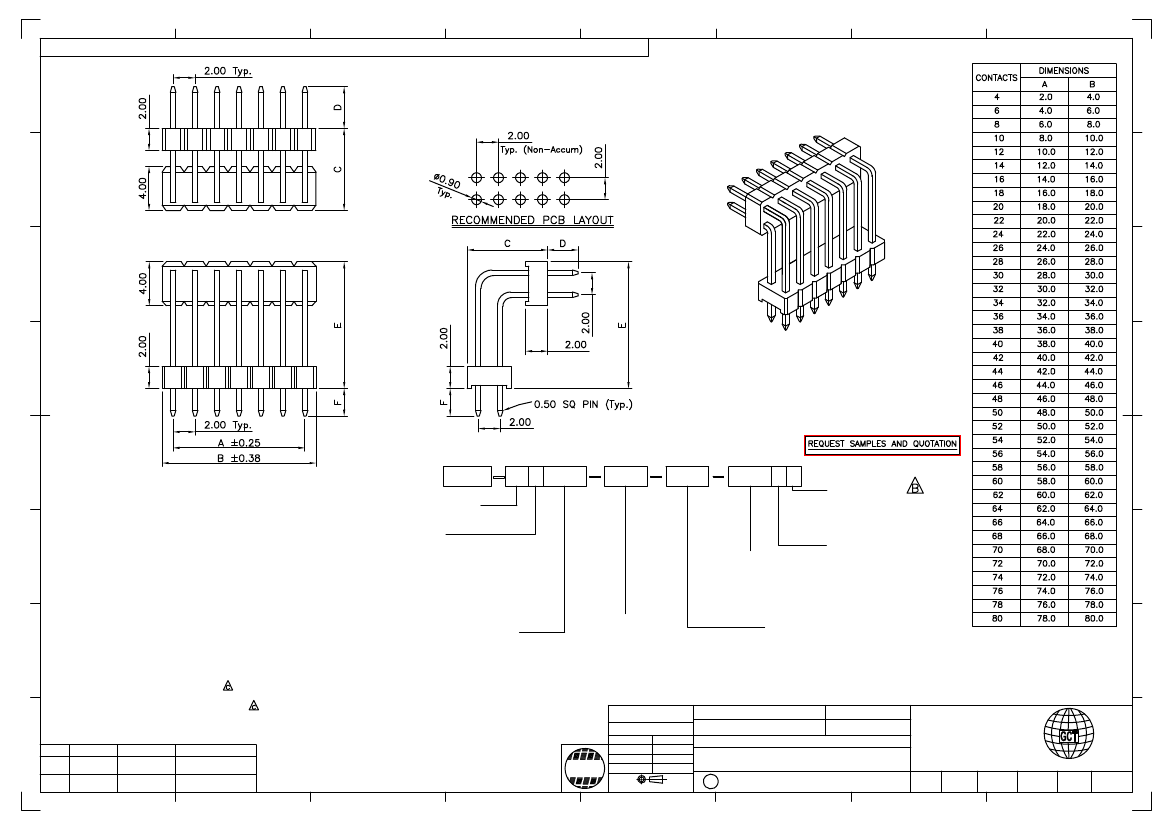

Global Connector Technology Ltd. - BF140: 2.0mm PITCH ELEVATED PIN HEADER, DUAL ROW, THROUGH HOLE, HORIZONTAL

SPECIFICATIONS

规格

CURRENT RATING

电流额定值：

2.0 AMP

INSULATION RESISTANCE

绝缘电阻值：

1000MOHMS MIN.

CONTACT RESISTANCE

接触电阻值：

20mOHMS MAX.

DIELECTRIC WITHSTANDING

耐电压：

500V AC

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.(NOT

SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BF065

BF075

BF080

BF095

BF100

BF105

BF115

BF120

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

31/10/07

PACKING OPTIONS

CHANGED

Ordering Grid

BF140

No. of Contacts

04 to 80

XX X XXXX

XXXX

XXXX X X

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Dimension C (1/100mm)

(Insulator to Insulator)

Standard - 6.10mm = 0610

Or specify Dimension C

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Dimension D (1/100mm)

(Post Height)

Standard - 4.40mm = 0440

Or specify Dimension D

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Dimension F(1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

Or specify Dimension F

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

Dimension E (1/100mm)

(Stack Height)

Standard - 9.60mm = 0960

Or specify Dimension E

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Part Number:-

Date:-

Tolerances

(Except as noted)

Dimensions in mm

X.°±5°

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

X. ± 0.30

BF140

Description:-

31 OCT 07

CHANGE TO SOLDER

TEMP. INFORMATION

05/08/09

27/04/09

RoHS

2.0mm PITCH ELEVATED PIN HEADER, DUAL ROW,

THROUGH HOLE, HORIZONTAL

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

LYH

E & OE

Sheet No.

1/1
