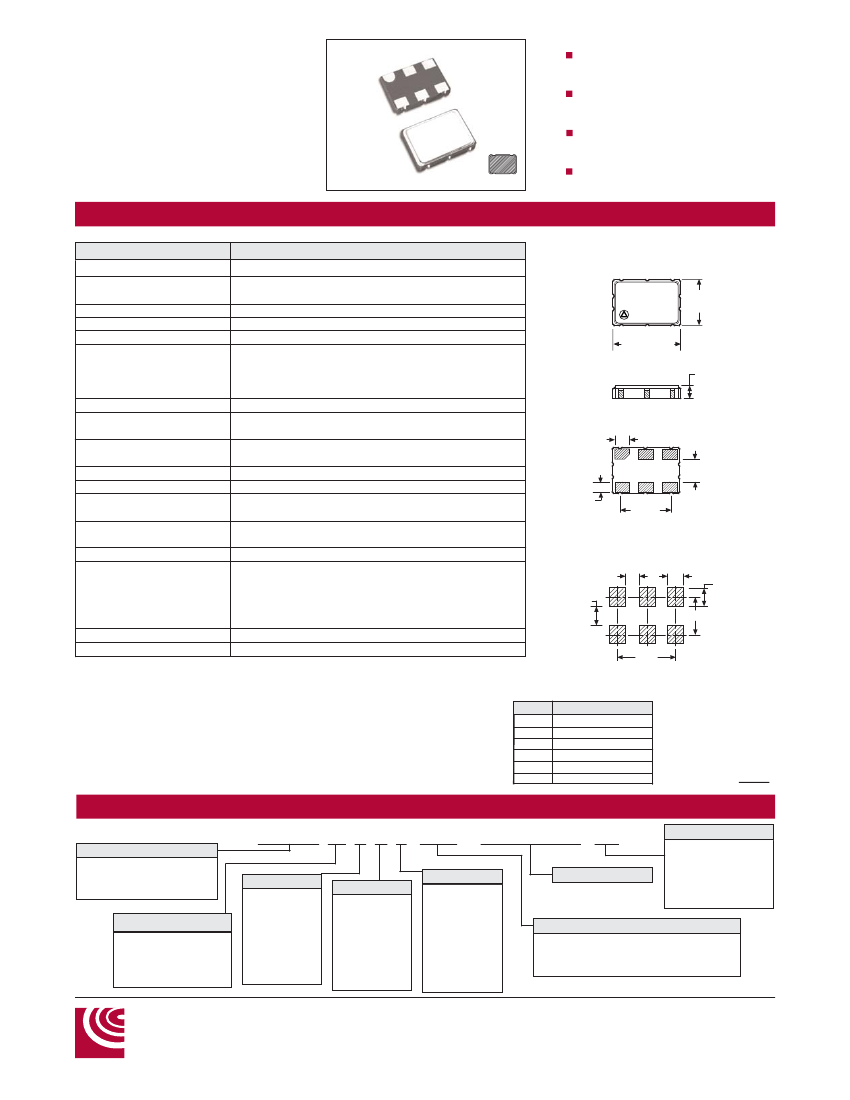

FMVC5S
SERIES
5.0 Vdc VCXO
Miniature, Low Profile
HCMOS / TTL Compatible
5.0 Vdc Supply Voltage
Excellent Stability
Actual Size
Ceramic SMD 5x7
SPECIFICATIONS
Parameter
Frequency Range
Overall Frequency Tolerance
Specification
05|issue1|012005
CERAMIC SMD
6
5
4
0.197
±0.008
(5.0
±0.2)
1
2
3
0.276
±0.008
(7.0
±0.2)
0.75
(1.90)
MAX
1.54 MHz - 200 MHz
±20 ppm to ±100 ppm (±50 ppm STD)
(Inclusive of Operating Temp., Supply Voltage, & Load.)
Operating Temperature Range 0 to +70°C Std.
Storage Temperature
-55 to +125°C
Supply Voltage (Vdd)
+5.0 Vdc (±0.5 Vdc)
Supply Current (Icc)
30 mA max. @ 1.54 to 23.9 MHz
50 mA max. @ 24.0 to 60.0 MHz
75 mA max. @ 61.0 to 160.0 MHz
90 mA max. @ 161.0 to 200.0 MHz
Symmetry (Duty Cycle)
40/60% Std., 45/55% Available (See Spec. Option S).
Output “0” Level (VOL)
0.4 Vdc max. (TTL)
0.5 Vdc max. (HCMOS)
Output “1” Level (VOH)
2.4 Vdc min. (TTL)
4.5 Vdc min. (HCMOS)
Rise and Fall Time
10 ns max. < 5 ns typical
Linearity
±20% max. Std. , ±10% Available (See Spec. Option L)
Output Load
10 TTL / 15 pF HCMOS < 40.0 MHz
15 pF HCMOS
Pullability
±100 to ±150 ppm typical @ 5.0 Vdd
(Select a min. and max. pullability from part number.)
Jitter (typical)
< 10 pico seconds, one sigma
Phase Noise (typical)
10 Hz
-75dBc/Hz
100 Hz
-110dBc/Hz
1kHz
-125dBc/Hz
10kHz
-130dBc/Hz
100kHz
-140dBc/Hz
Control Voltage (Vc)
Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer @5.0 Vdd
Aging @ 25°C
±3 ppm max first year
All specifications subject to change without notice.
Side View
0.055
(1.40)
TYP
1
2
3
0.102
(2.60) TYP
5
0.200
(5.08)
TYP
4
0.047
(1.10)
TYP
6
Bottom View
0.94
2.40
3.90
1.60
1.50
5.08
Soldering Position
PIN FUNCTION TABLE
Pin
1
2
3
4
5
6
Function
Control Voltage
Tri-State Control
Ground
Output
N/C
+Vdd
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
Product Family
HCMOS/TTL Compatible
5.0 Vdc VCXO
Ceramic SMD
Overall Frequency Tol.
25 - ± 25 ppm
50 - ± 50 ppm
00 - ± 100 ppm
nn - ± Custom Value
MARKING: See Page 57, Format H
Options
GW- Gull Wing
JL - J-Lead
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMVC5S 50 C G A S / L - XX.XXXXXXM - CM
Min. Pullability
A - +1-50 ppm
B - ± 75 ppm
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
X - Custom
Z - No Spec.
Max. Pullability
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
F - ± 175 ppm
G - ± 200 ppm
X - Custom
Z - No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
Frequency (MHz)
Spec. Options
S - Tight Symmetry (45/55%) Duty Cycle
L - Linearity ±10% Max.
BLANK- None Required (Std.)
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
1-800-800-XTAL
[9825]
www.fmi-inc.com
49
