RK1/4BCT252A8253F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RK1/4BCT252A8253F

RK1/4BCT252A8253F: DescriptionFixed Resistor, Metal Film, 0.25W, 825000ohm, 500V, 1% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size125KB，2 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

RK1/4BCT252A8253F Overview

Fixed Resistor, Metal Film, 0.25W, 825000ohm, 500V, 1% +/-Tol, 350ppm/Cel, Through Hole Mount, AXIAL LEADED

RK1/4BCT252A8253F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145067271956
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	6.95
Lead diameter	0.6 mm
Lead length	24 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	2.3 mm
Package length	6.3 mm
Package form	Axial
method of packing	AMMO PACK
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	825000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	350 ppm/°C
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	500 V

Preview

Download Datasheet

View All

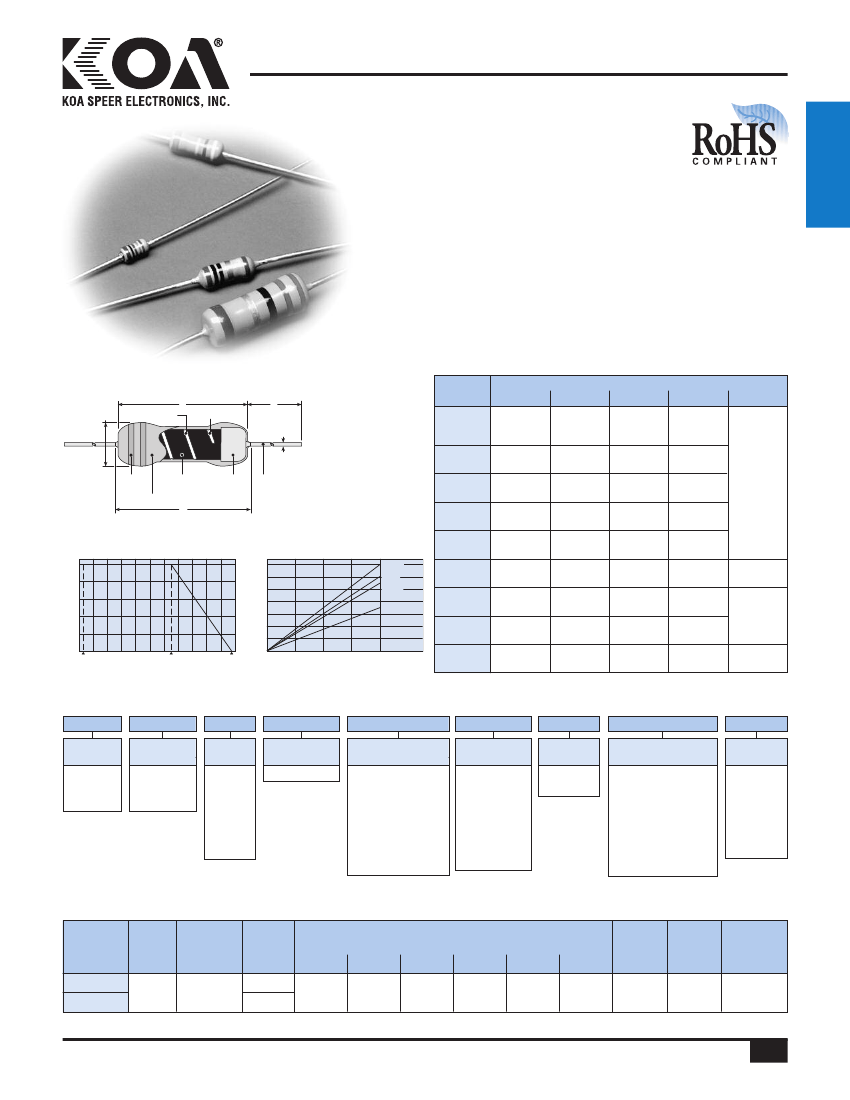

MF, MFS, RK

general purpose metal film leaded resistor

features

•

Semi-precision metal film resistors

Meets requirements of MIL-R-22684

Suitable for automatic machine insertion

MFS two times the power rating of the standard body type

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

•

AEC-Q200 Qualified: MF1/4, MFS1/4, MFS1/2

resistors

dimensions and construction

Trimming Line

Ceramic Core

Type

MFS1/4

MF1/4

L (ref.)

.126±.008

(3.2±0.2)

.248±.02

(6.3±0.5)

.248±.02

(6.3±0.5)

.354±.04

(9.0±1.0)

.354±.04

(9.0±1.0)

.610±.02

(15.5±0.5)

.248±.02

(6.3±0.5)

.374±.04

(9.5±1.0)

.610±.04

(15.5±1.0)

Dimensions

inches

(mm)

C (max.)

d (nom.)

.133

(3.4)

.280

(7.1)

.280

(7.1)

.437

(11.1)

.437

(11.1)

.721

(18.3)

.280

(7.1)

.437

(11.1)

.720

(18.3)

.066

(1.7

+.007

-.004

+0.2

)

-0.1

.018

(0.45)

.024

(0.6)

.024

(0.6)

.024

(0.6)

.024/.031

(0.6)/(0.8)

.031

(0.8)

.024

(0.6)

.024

(0.6)

.031

(0.8)

1.50±.118

(38.0±3.0)

0.94 min.

(24.0 min.)

1.50±.118

(38.0±3.0)

1.10±.118

(28.0±3.0)

.091±.012

(2.3±0.3)

.091±.012

(2.3±0.3)

.138±.016

(3.5±0.4)

.138±.016

(3.5±0.4)

.217±.02

(5.5±0.5)

.091±.012

(2.3±0.3)

.138±.016

(3.5±0.4)

.217±.02

(5.5±0.5)

Marking

Resistive

Film

End

Cap

Lead

Wire

MFS1/2

MF1/2C

MF1/2D

Insulation Coating

Derating Curve

100

% Rated Power

-60 -40 -20

-55

Surface Temperature Rise

Temperature Rise (°C)

MF1/2L

MF1

RK1/4

RK1/2

MFS1/2

MF1/2

MF1

MFS1/4

MF1/4

80 100 120 140 160

155

Ambient Temperature

(°C)

100

RK1

% Rated Power

* Lead length changes depending on taping and forming.

ordering information

Type

MFS

1/4

Power

Rating

1/4: 0.25W

1/2: 0.50W

1: 1W

T.C.R.

E: ±25

C: ±50

D: ±100

L: ±200

G: ±250

B: ±350

Termination

Material

C: SnCu

T52

Taping and

Forming

1/4: T26, T52, VT,

VTP, VTE, MT,

M, U, M10,

M12.5

1/2: T26, T52,

VTP, VTE,

M12.5, M15

1: T521

Lead

Diameter

MF1/2L: T52

& Bulk Only:

6: 0.6mm

8: 0.8mm

Blank: All

others sizes

& packaging

Packaging

A: Ammo

R: Reel

R20

Nominal

Resistance

+2%: 2 significant

figures + 1 multiplier

+0.5%,+1%:

3 significant figures

+ 1 multiplier

“R” indicates

decimal on value

<100Ω

Tolerance

B: ±0.1%

C: ±0.25%

D: ±0.5%

F: ±1%

G: ±2%

J: ±5%

For further information on

packaging, please refer to

Appendix C.

applications and ratings

Minimum

Absolute Absolute

Resistance Range (Ω)

Power

Operating

Part

Dielectric

T.C.R.

Maximum Maximum

Rating

Temperature

Designation

Withstanding (ppm/°C)

(B±0.1%) (C±0.25%) (D±0.5%) (F±1.0%) (G±2.0%) (J±5.0%)

Working Overload

@ 70°C

Range

Voltage

E-24

E-96

E-24 E-192 E-24 E-96

E-24

-55°C

MFS1/4C

C: ±50

49.9 -

0.25W

300V

—

10 - 1M

—

250V

500V

562k

MFS1/4D

D: ±100

+155°C

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

8/08/18

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

169
