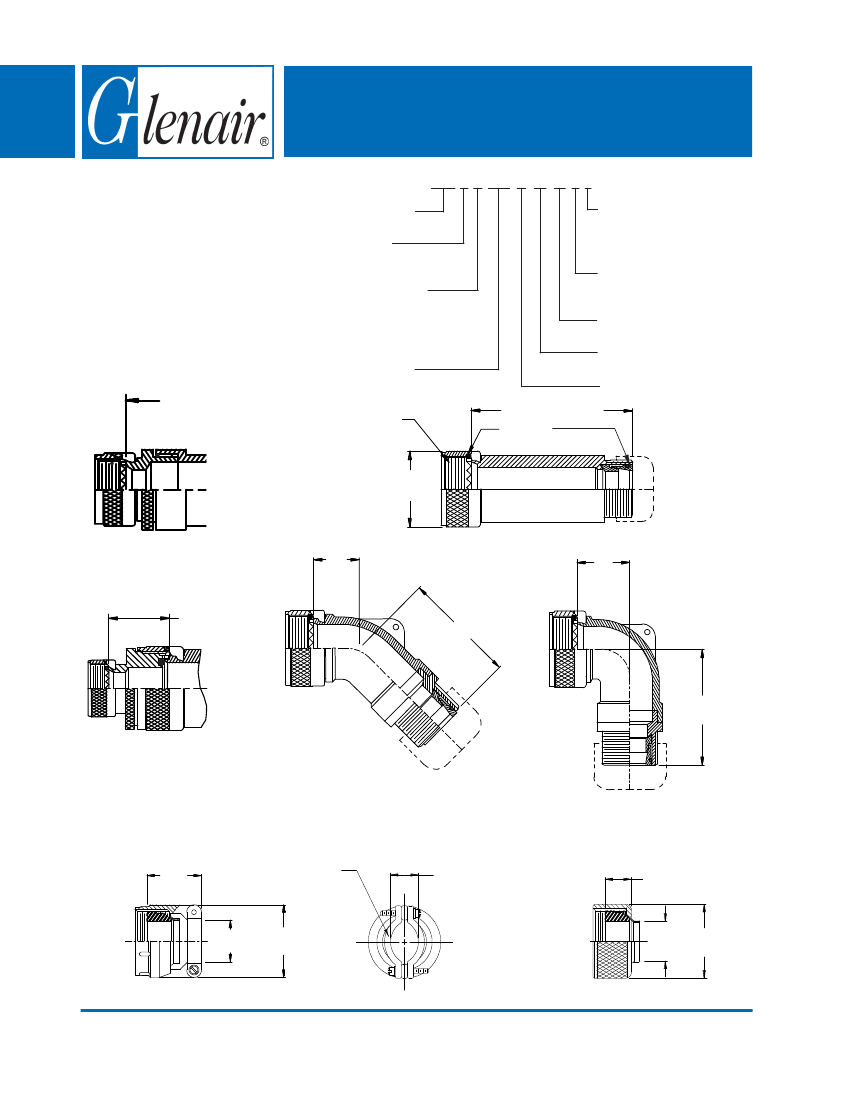

390-003
Water-Tight EMI/RFI Cable Sealing Backshell
with Strain Relief
Type A - Rotatable Coupling - Low Profile
39
CONNECTOR
DESIGNATORS
390 F S 003 M 16 10 E 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Finish (Table II)
Length *
O-Rings
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(C, E)
Cable Entry (Tables X, XI)
Shell Size (Table I)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE A OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
A Thread
(Table I)
C Typ.
(Table I)
* Length
± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
E
(Table
III)
F (Table III)
G
(Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE C
Medium Duty
(Table X)
Clamping
Bars
STYLE E
Medium Duty
(Table XI)
X (See
Note 6)
Y
T
Cable
Range
W
Cable
Range
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 18
with Strain Relief
Type A - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S H
08 09
10 11
12 13
14 15
16 17
18 19
20 21
22 23
24 25
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.602 (40.7)
1.662 (42.2)
1.722 (43.7)
2.062 (52.4)
2.172 (55.2)
2.362 (60.0)
2.362 (60.0)
2.512 (63.8)
2.512 (63.8)
2.562 (65.1)
2.662 (67.6)
2.752 (69.9)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.612 (40.9)
1.732 (44.0)
1.752 (44.5)
2.072 (52.6)
2.162 (54.9)
2.332 (59.2)
2.332 (59.2)
2.442 (62.0)
2.442 (62.0)
2.612 (66.3)
2.862 (72.7)
2.862 (72.7)
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
T
Max
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.281 (32.5)
1.281 (32.5)
1.406 (35.7)
1.656 (42.1)
1.906 (48.4)
1.906 (48.4)
2.000 (50.8)
TABLE X: CABLE ENTRY
Cable Range
X
W
Ref
Min
Max
Max
.135 (3.4)
.156 (4.0)
.812 (20.6)
.219 (5.6)
.203 (5.2)
.188 (4.8)
.937 (23.8)
.312 (7.9)
.281 (7.1)
.285 (7.2)
1.062 (27.0)
.438 (11.1)
.350 (8.9)
.312 (7.9)
1.188 (30.2)
.531 (13.5)
.390 (9.9)
.375 (9.5)
1.312 (33.3)
.625 (15.9)
.460 (11.7)
.500 (12.7)
1.562 (39.7)
.750 (19.1)
.510 (13.0)
.625 (15.9)
1.750 (44.5)
.938 (23.8)
.938 (23.8)
.695 (17.7)
2.250 (57.2)
1.250 (31.8)
.715 (18.2)
1.000 (25.4)
2.375 (60.3)
1.375 (34.9)
.915 (23.2)
1.250 (31.8)
2.625 (66.7)
1.625 (41.3)
1.070 (27.2)
1.500 (38.1)
2.812 (71.4)
1.875 (47.6)
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions E,
F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter
lengths on straight backshells.
5. Interface O-Ring not supplied
with connector designator A.
6. Saddles are bottomed on
Clamp Ears.
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
TABLE XI: CABLE ENTRY
Cable Range
Y
Z
Max
Max
Max
Min
.219 (5.6)
.739 (18.8)
.812 (20.6)
.156 (4.0)
.312 (7.9)
.739 (18.8)
.937 (23.8)
.188 (4.8)
.438 (11.1)
.739 (18.8)
1.062 (27.0)
.281 (7.1)
.531 (13.5)
.739 (18.8)
1.188 (30.2)
.312 (7.9)
.625 (15.9)
.791 (20.1)
1.312 (33.3)
.375 (9.5)
.750 (19.1)
.880 (22.4)
1.562 (39.7)
.500 (12.7)
.938 (23.8)
.901 (22.9)
1.750 (44.5)
.625 (15.9)
1.250 (31.8)
1.031 (26.2)
2.250 (57.2)
.938 (23.8)
1.375 (34.9)
1.250 (31.8)
2.375 (60.3)
1.000 (25.4)
1.625 (41.3)
1.250 (31.8)
2.625 (66.7)
1.250 (31.8)
1.875 (47.6)
1.312 (33.3)
2.812 (71.4)
1.500 (38.1)
