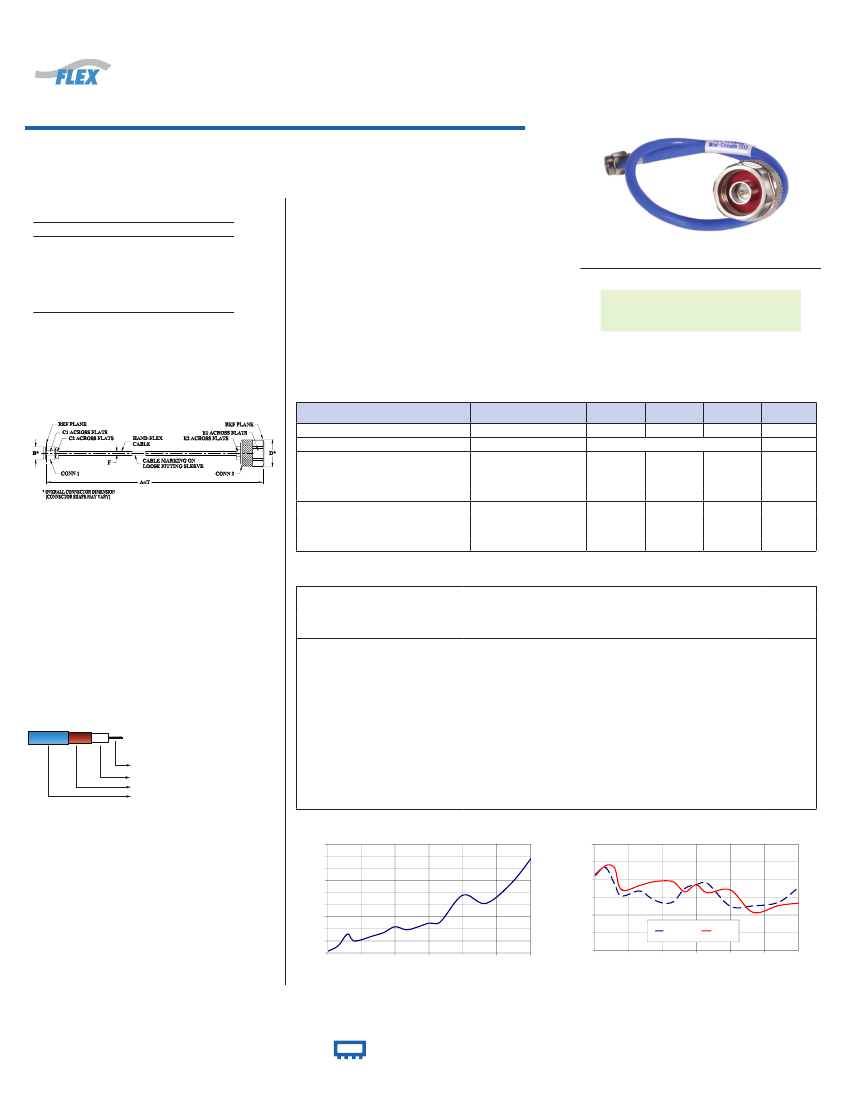

HAND
Coaxial Cable
50Ω
DC to 18 GHz
The Big Deal
• SMA to N-Type Connection
• Excellent Return Loss and Insertion Loss
• Tight Bend Radius (8mm min.)
• Ideal for interconnect of assembled systems
TM
141 SMNM Model Series
CASE STYLE: KQ1668-XX
XX= cable length in inches
Product Overview
141 SMNM+ series Hand-Flex coaxial cables are ideal for integrating coaxial components and sub-systems in
tight spaces and dense system configurations. SMA to N-Type connection avoids need for an adapter between
components with SMA-F and N-F connection ports, reducing system cost and improving reliability. Sturdy, hand-
formable cable construction maintains shape after bending with bend-radius as small as 8mm. 141 SMNM+ coaxial
cables have the advantages of wide frequency range and excellent return loss and insertion loss. Available in a
variety of lengths.
Key Features
Feature
Hand-Formable
Tight Bend Radius
Advantages
141 SMNM+ series Hand-Flex cables avoid the need for cable-bending tools, alleviating the risk
of damage during bending processes typical of semi-rigid cable assemblies.
Capable of bending to radii as small as 8mm, the 141 SMNM+ series is ideal for making
connections in tight spaces and dense system assemblies.
Typical return loss of 25 dB to 6 GHz and 18 dB to 18 GHz makes the 141 SMNM+ series ideal
for interconnecting a wide variety of RF components while minimizing VSWR ripple contribution
due to mating cables & connectors.
Mini-Circuits 141 SMNM+ series cables can support medium to high RF power levels and can be
used in the transmit path. (NOTE: power rating at sea-level).
Supports the connector bodies during installation, preventing stress to the connector/cable
interface.
Eliminates need for adapter when connecting to SMA-F and N-F connectors, reducing cost and
improving reliability.
Excellent Return loss
High Power Handling Capability:
• 546W at 0.5 GHz
• 90W at 18 GHz
Built-in Anti-torque Nut
SMA-Male / N-Male connectors
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
HAND
Coaxial Cable
50Ω
5 inch
DC to 18 GHz
Features
•
•
•
•
•
•
•
•
Wideband frequency coverage, DC to 18 GHz
Low Loss, 0.8 dB at 18 GHz
Excellent Return Loss, 27 dB at 18 GHz
Hand formable to almost any custom shape without
special bending tools
8mm bend radius for tight installations
Anti-torque nut prevents cable stress during installation
Insulated outer jacket standard
Ideal for interconnect of assembled systems
TM
141-5SMNM+
Maximum Ratings
Operating Temperature
Storage Temperature
Power Handling at 25°C,
Sea Level
-55°C to 105°C
-55°C to 105°C
546W at 0.5 GHz
387W at 1 GHz
273W at 2 GHz
156W at 6 GHz
121W at 10 GHz
90W at 18 GHz
CASE STYLE: KQ1668-5
Connectors
SMA-Male / N-Male
Model
141-5SMNM+
Price
$18.21 ea.
Qty.
(1-9)
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
Permanent damage may occur if any of these limits are exceeded.
Applications
•
•
•
•
Replacement for custom bent 0.141" semi-rigid cables
Communication receivers and transmitters
Military and aerospace system
Environmental and test chambers
Outline Drawing
TM
Electrical Specifications at 25°C
Parameter
Frequency Range
Length
1
Insertion Loss
DC - 2
2-6
6 - 10
10 - 18
DC - 2
2-6
6 - 10
10 - 18
—
—
—
—
23
23
17
17
Condition (GHz)
Min.
DC
Typ.
5
0.21
0.23
0.34
0.84
29
24
22
19
Max.
18
0.26
0.47
0.62
0.85
—
—
—
—
Unit
GHz
inches
dB
Return Loss
1. Custom sizes available, consult factory.
dB
Outline Dimensions (
inch
)
mm
A
5.0
127.00
E1
.750
19.05
B
.36
9.14
E2
.375
9.53
C1
.313
7.95
F
.163
4.14
C2
.250
6.35
T
.05
1.27
D
.88
22.35
wt
grams
39.02
Typical Performance Data
Frequency
(MHz)
Insertion Loss
(dB)
Return Loss
(dB)
SMA-Male
100
1000
1800
2404
4001
5000
6000
7001
8001
9000
10000
12001
14001
16242
18000
141-5SMNM+
INSERTION LOSS
0.9
INSERTION LOSS (dB)
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0
3000
6000
9000
12000
15000
18000
FREQUENCY (MHz)
RETURN LOSS (dB)
60
50
40
30
20
10
0
0
3000
6000
9000
12000
15000
18000
FREQUENCY (MHz)
SMA-MALE
N-MALE
N-Male
42.1
47.9
46.7
34.2
36.7
38.5
39.3
38.7
33.1
37.1
32.6
34.2
21.5
25.3
26.7
141-5SMNM+
RETURN LOSS
Cable Construction
Center Conductor: Silver Plated Copper Clad Steel
Dialectric: Solid PTFE
Outer Shield: Copper braid, tin soaked
Jacket: FEP, Blue (Unjacketed cable also available
upon request)
Connectors: Coupling Nut: Stainless Steel Passivated
Body: Stainless Steel Gold Plated
Center Pin: Silver Plated Copper Clad Steel
0.02
0.06
0.16
0.10
0.14
0.17
0.22
0.19
0.22
0.25
0.26
0.48
0.41
0.57
0.78
42.9
47.0
37.6
30.7
33.6
29.6
26.8
27.5
35.1
37.1
37.8
24.9
25.2
27.1
35.6
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Rev. OR
M146864
141-5SMNM+
RK/CP
140903
