LGY1J122MHLZ25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LGY1J122MHLZ25

LGY1J122MHLZ25: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1200uF, Through Hole Mount; CategoryPassive components capacitor; File Size94KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

LGY1J122MHLZ25 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1200uF, Through Hole Mount

LGY1J122MHLZ25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	2023941328
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.8248 mA
Manufacturer's serial number	GY
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	1300 mA
surface mount	NO
Delta tangent	0.25
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

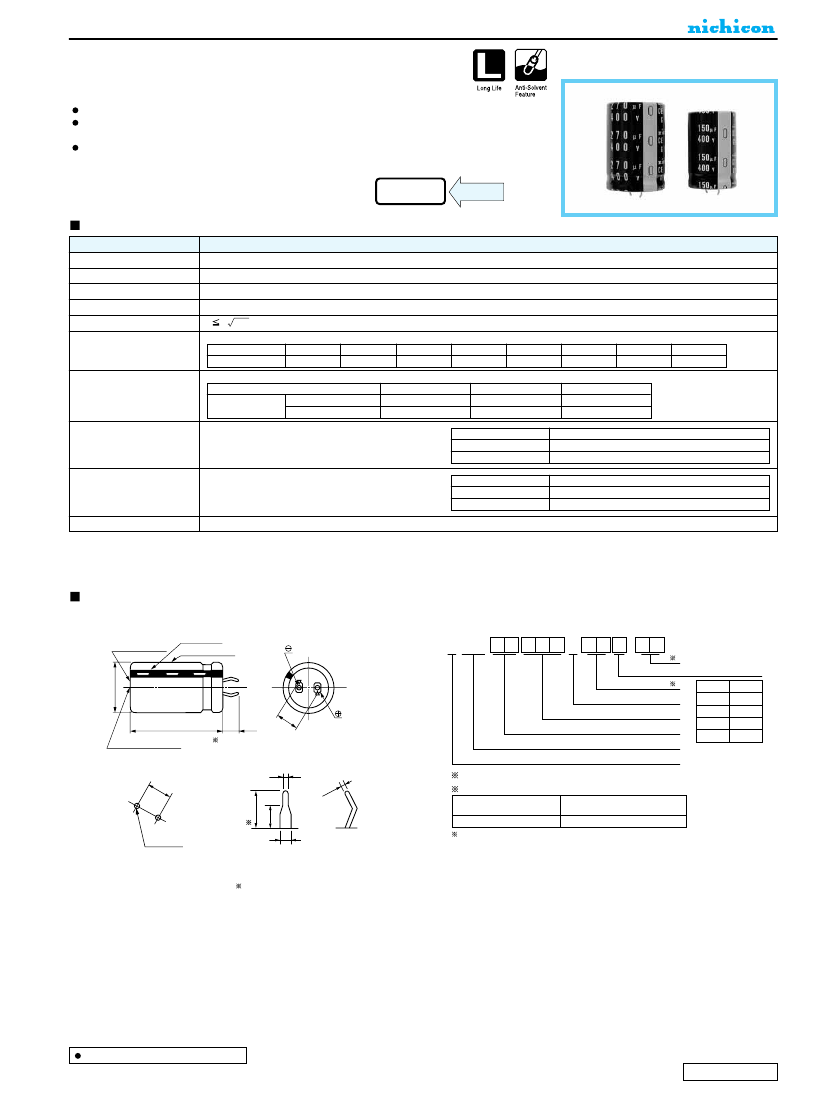

ALUMINUM ELECTROLYTIC CAPACITORS

Snap-in Terminal Type, Long Life, Wide Temperature Range

series

(Less than 100V )

Long life assurance series withstanding 5000 , 7000 hours application of ripple current at 105

°C.

Suited for use in industrial power supplies applications where high reliability and dependable

performance are the most important.

Suited for ballast application.

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Long Life

Performance Characteristics

–

40 ~ +105°C (16~250V) ,

–

25 ~ +105°C (315 ~ 450V)

16 ~ 450V

39 ~ 47000µF

± 20% at 120Hz, 20°C

3 CV

(µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF), V : Voltage(V)]

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage(V)

tan

(MAX.)

0.50

0.40

0.35

16 ~ 100

0.30

0.25

160 ~ 250

80 , 100

0.20

160 ~ 400

0.15

450

0.20

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage(V)

–

25°C/ Z+20°C

Impedance ratio

–

40°C/ Z+20°C

ZT/Z20 (MAX.)

315 ~ 450

—

Within ±25% of initial value

250% or less of initial specified value

Initial specified value or less

Within ±15% of initial value

150% or less of initial specified value

Initial specified value or less

Endurance

After an application of DC voltage (in the range of rated DC voltage

even after over-lapping the specified ripple current) for 7000 hours

(16 ~ 100V : 5000 hours) at 105°C, capacitors meet the characteristic

requirements listed at right.

After leaving capacitors under no load at 105°C for 1000

hours, they meet the requirements listed at right.

Printed with white color letter on black sleeve.

Capacitance change

tan

Leakage current

Capacitance change

tan

Leakage current

Shelf Life

Marking

Drawing

Bottom plate

(code HL only)

Type numbering system (Example : 200V 680

Polarity bar

Sleeve (P.E.T.)

10 11

L G Y 2 D 6 8 1 M E L A

(

)

Case dia. code

φD

+1MAX.

Configuration

φD

Code

Capacitance tolerance (±20%)

L±

Rated Capacitance (680µF)

Rated voltage (200V)

Pressure relief vent

4.0±0.5

0.8

+0.2

-0.1

Series name

Type

+0 .1

-0

4.0±0.5

1 16 ~ 100V products : Case height code

2 Configuration

Pb-free terminal

Pb-free PET sleeve (Black)

Sn-Pb finished terminal

PVC sleeve (containing Pb) (Dark Brown)

2.5

2- 2

φ ±

0.1

(PC board hole dimensions)

1.5

(Terminal dimensions)

+0.2

-0.1

Please contact to us if other configurations are required.

The other terminal is also available upon request.

Please refer page 202 for schematic of dimensions.

Minimum order quantity : 50pcs.

Dimension table in next page.

CAT.8100T
