PLS0E821MCO8CM

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 2.5V, 20% +Tol, 20% -Tol, 820uF,
CategoryPassive components    capacitor
File Size54KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

PLS0E821MCO8CM Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 2.5V, 20% +Tol, 20% -Tol, 820uF,

PLS0E821MCO8CM Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid763881794
package instruction,
Reach Compliance Codecompliant
Country Of OriginJapan
ECCN codeEAR99
YTEOL7
capacitance820 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter6.3 mm
dielectric materialsALUMINUM
ESR8 mΩ
length9 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package formRadial
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)2.5 V
ripple current4800 mA
seriesLS(RADIAL)
Terminal pitch2.5 mm

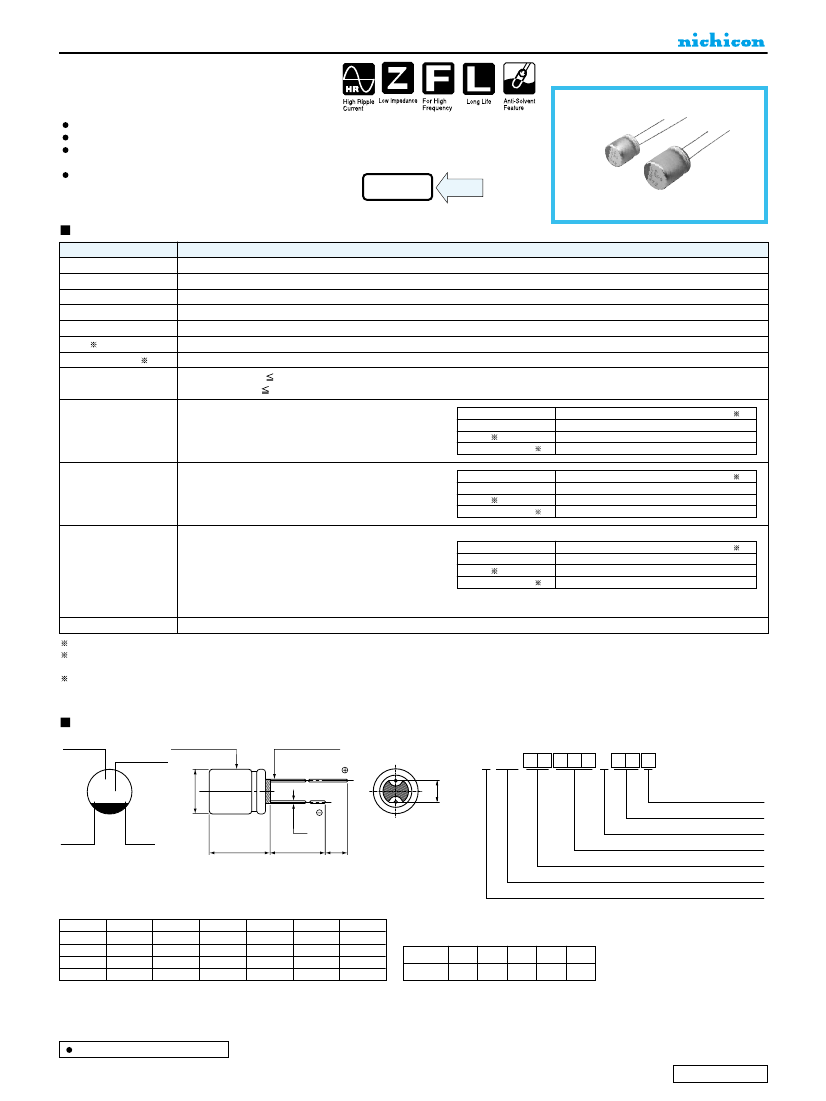

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
LS
Radial Lead Type, Long Life Assurance
series
Ultra-low ESR, High ripple current.
Load life of 5000 hours at 105°C.
Radial lead type :
Lead free flow soldering condition correspondence.
Compliant to the RoHS directive (2002/95/EC).
LS
Long Life
LF
Specifications
Item
Category Temperature Range
Rated Voltage Range
Performance Characteristics
– 55 to +105°C
2.5 to 16V
± 20%
at 120Hz, 20°C
Rated Capacitance Range
100 to 1500µF
Capacitance Tolerance
Tangent of loss angle (tan
δ)
Less than or equal to the specified value at 120Hz, 20°C
ESR (
1)
2)
Less than or equal to the specified value at 100kHz, 20°C
Less than or equal to the specified value.
Z+105°C / Z+20°C
Z
55°C / Z+20°C
1.25
1.25
(100kHz)
After 2 minutes' application of rated voltage at 20°C
Leakage Current (
Temperature Characteristics
(Max.Impedance Ratio)
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 5000 hours at 105°C.
Capacitance change
tan
δ
ESR (
1)
2)
Leakage current (
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Damp Heat
(Steady State)
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 60°C, 90% RH.
Capacitance change
tan
δ
ESR (
1)
2)
Leakage current (
Resistance to
Soldering Heat
After soldering the capacitor under the soldering conditions
prescribed here as preheat at 150 to 200°C for 60 to 180 seconds
and peak temperature at 265°C for 10 seconds or less, the
capacitor shall meet the specifications listed at right, provided that
its temperature profile is measured at both of terminal ends facing
the soldering side.
Navy blue print on the case top
Capacitance change
tan
δ
ESR (
1)
2)
Leakage current (
Within ± 10% of the initial capacitance value ( 3)
130% or less than the initial specified value
130% or less than the initial specified value
Less than or equal to the initial specified value
Marking
1 ESR should be measured at both of the terminal ends closest to the capacitor body.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
3 Initial value : The value before test of examination of resistance to soldering.
Dimensions
Capacitance
Type numbering system (Example : 10V 270
µ
F)
Resin coated Case
Silvered lead Wire
1
2
3
4
5
6
7
8
9 10 11 12
Voltage(A:10V)
φ
D+0.5 MAX.
P L S 1 A 2 7 1 MDO 1
P
±0.5
Size code
Configuration
LS
270
A
941
φ
d
Series
Lot. No.
L+0.5MAX.
15MIN
4MIN
Capacitance toleranc (±20%)
Rated capacitance (270µF)
Rated voltage (10V)
Series name
Type
(mm)
Size
φD
L
P
φd
φ6.3
×
9L
φ6.3
×
10.5L
φ8
×
7L
6.3
8.0
6.3
8.5
6.5
10.0
2.5
3.5
2.5
0.6
0.6
0.5
φ8
×
9L
8.0
8.5
3.5
0.6
φ8
×
12L
φ10
×
13L
8.0
10.0
11.5
12.5
3.5
5.0
0.6
0.6
Voltage
V
Code
2.5
e
4
g
6.3
j
10
A
16
C
Please refer to page 20 about the end seal configulation.
Dimension table in next page.
CAT.8100Z
