8-1437532-2 datasheet, PDF - EEWORLD Datasheet

8-1437532-2: Descriptionconn socket assy 40pos 500 ser; CategoryThe connector; File Size448KB，3 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

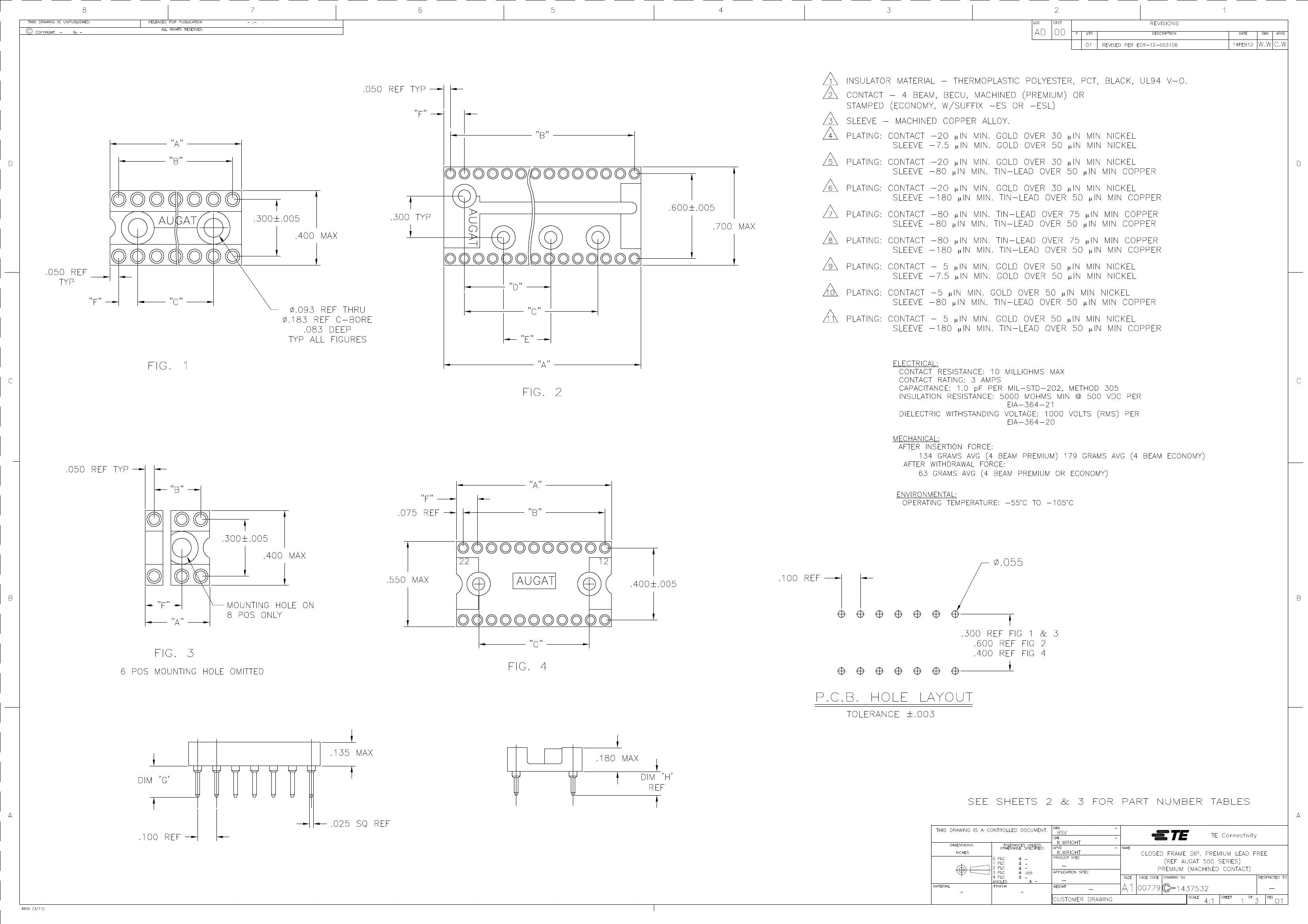

8-1437532-2 Overview

conn socket assy 40pos 500 ser

Parameter Name	Attribute value
Datasheets
1437532
Standard Package	12
Category	Connectors, Interconnects
Family	Sockets for ICs, Transistors
Packaging	-
Type	DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid)	40 (2 x 20)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	-
Contact Finish Thickness - Mating	-
Contact Material - Mating	-
Mounting Type	Through Hole
Features	Closed Frame
Terminati	Wire W
Pitch - Pos	0.100" (2.54mm)
Contact Finish - Pos	-
Contact Finish Thickness - Pos	-
Contact Material - Pos	-
Housing Material	-
Operating Temperature	-
Termination Post Length	0.510" (12.95mm)
Material Flammability Rating	UL94 V-0
Current Rating	-
Contact Resistance	-

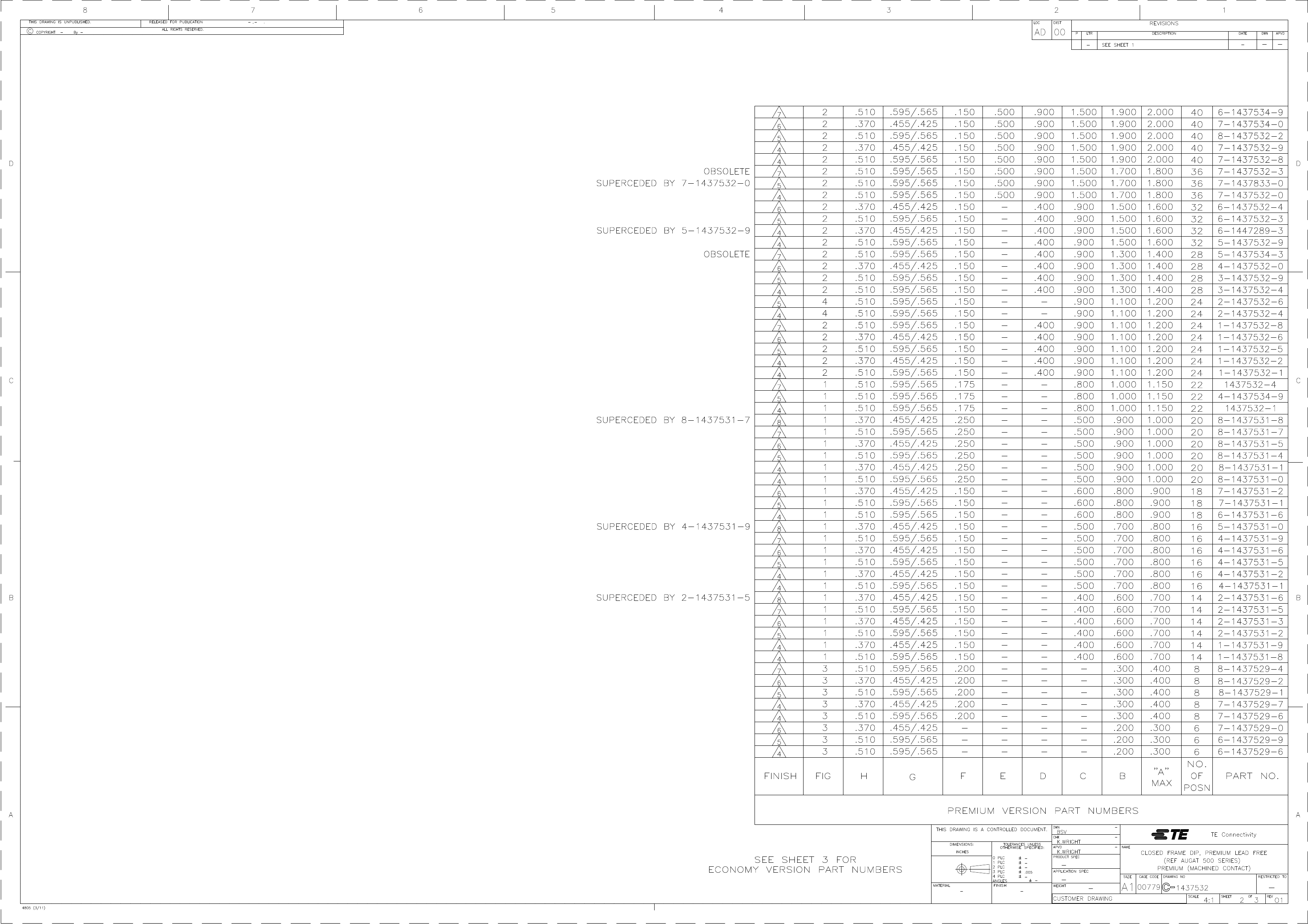

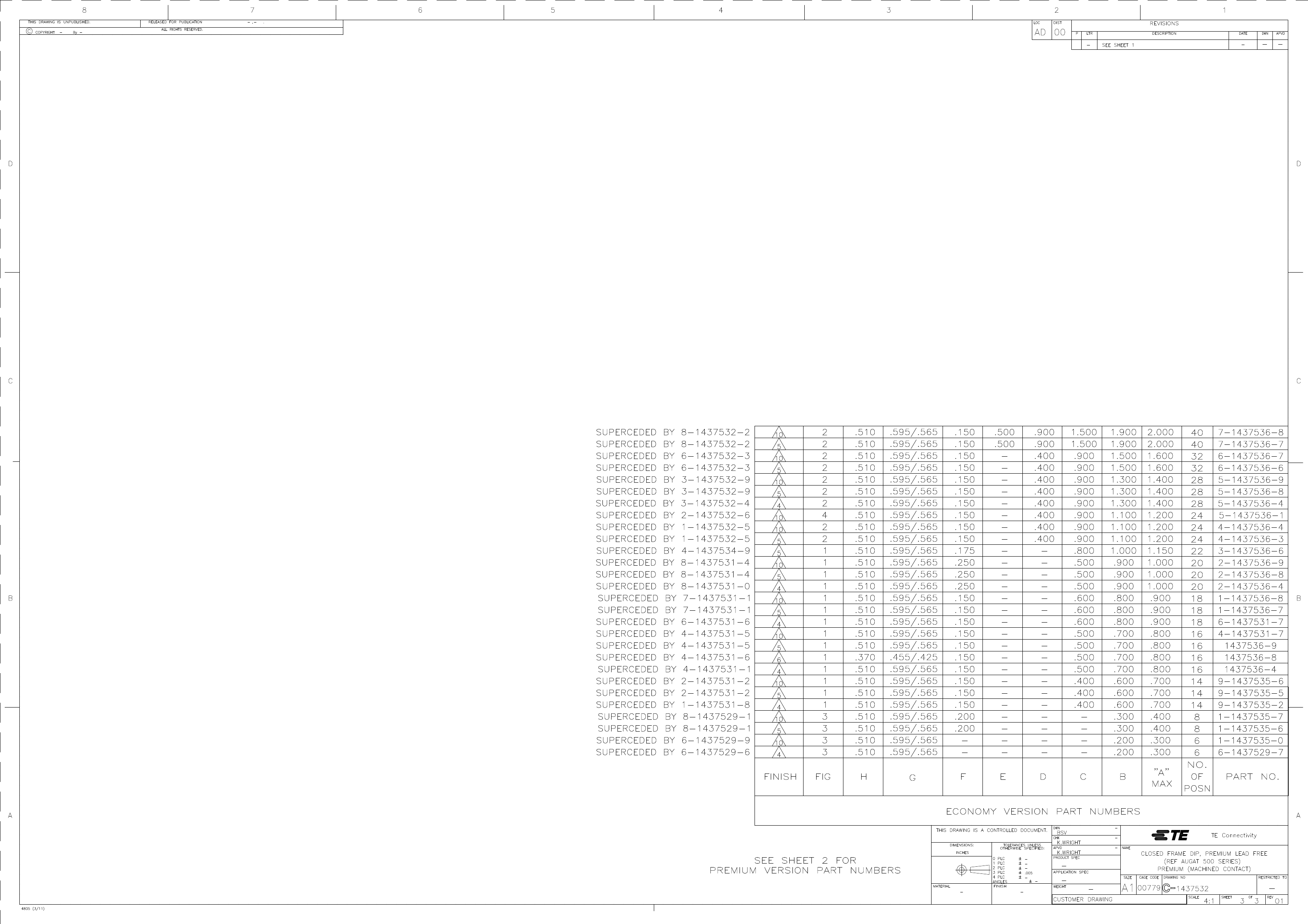

	8-1437532-2	1437532-7	1-1437532-5	7-1437532-1	1437532-5
Description	conn socket assy 40pos 500 ser	conn socket assy 22pos 500 ser	conn socket assy 24pos 500 ser	socket dip 36pos T/H gold	conn socket assy 22pos 500 ser
Standard Package	12	147	200	1,300	21
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Sockets for ICs, Transistors	Sockets for ICs, Transistors	Sockets for ICs, Transistors	Sockets for ICs, Transistors	Sockets for ICs, Transistors
Type	DIP, 0.6" (15.24mm) Row Spacing	DIP, 0.4" (10.16mm) Row Spacing	DIP, 0.6" (15.24mm) Row Spacing	DIP, 0.6" (15.24mm) Row Spacing	DIP, 0.4" (10.16mm) Row Spacing
Number of Positions or Pins (Grid)	40 (2 x 20)	22 (2 x 11)	24 (2 x 12)	36 (2 x 18)	22 (2 x 11)
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Features	Closed Frame	Closed Frame	Closed Frame	Closed Frame	Closed Frame
Terminati	Wire W	-	Wire W	Solde	-
Pitch - Pos	0.100" (2.54mm)	-	0.100" (2.54mm)	0.100" (2.54mm)	-
Termination Post Length	0.510" (12.95mm)	-	0.510" (12.95mm)	0.125" (3.18mm)	-
