OSTVK071150 datasheet, PDF - EEWORLD Datasheet

OSTVK071150: Descriptionterm block hdr 7pos 45deg 3.5mm; CategoryThe connector; File Size64KB，1 Pages; ManufacturerOn-Shore Technology ( OST ); Websitehttp://www.on-shore.com; Environmental Compliance

Download Datasheet Parametric View All

OSTVK071150 Overview

term block hdr 7pos 45deg 3.5mm

Parameter Name	Attribute value
Datasheets

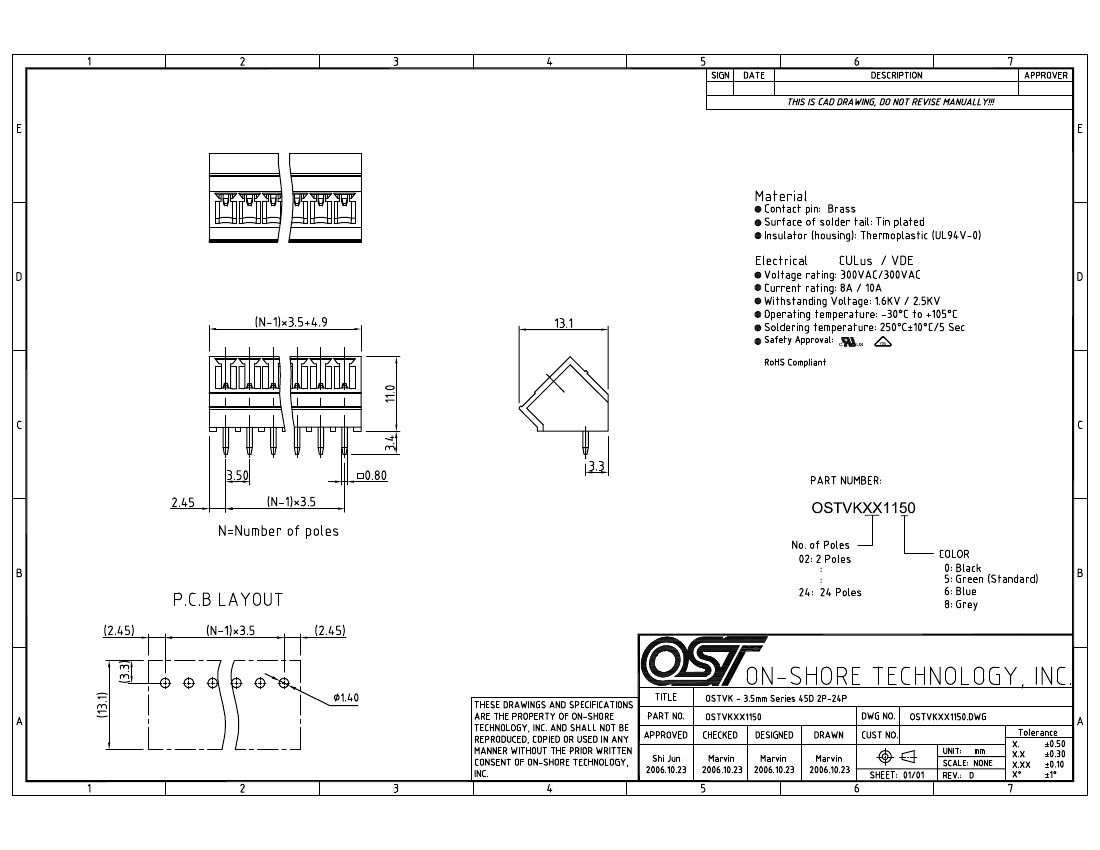

OSTVKxx1150
Standard Package	1
Category	Connectors, Interconnects
Family	Terminal Blocks - Headers, Plugs and Sockets
Packaging	Bulk
Terminal Block Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	7
Positions Per Level	7
Pitch	0.138" (3.50mm)
Number of Levels	1
Header Orientati	45°
Plug Wire Entry	-
Terminati	Solde
Wire Gauge	-
Curre	8A
Voltage	300V
Mounting Type	Through Hole
Features	-
Col	Gree
Mating Products	OSTVM071550-ND - TERM BLOCK PLUG 7POS STR 3.5MMOSTV7071151-ND - TERM BLOCK HDR 7POS R/A 3.5MMOSTV7071150-ND - TERM BLOCK HDR 7POS VERT 3.5MMOSTTS07115B-ND - TERM BLOCK PLUG 7POS 3.5MMOSTTS07115A-ND - TERM BLOCK PLUG 7POS 90DEG 3.5MMOSTTJ0711530-ND - TERM BLOCK PLUG 7POS STR 3.5MM
