Resistors
Surface Mount TSSOP
Surface Mount TSSOP
Resistor Networks
Resistor Networks
TSSOP Series
Absolute tolerances to ±0.1%
Tight TC Tracking to ±5ppm/°C
TSSOP Series
Ratio match tolerances to ±0.05%
•
Absolute tolerances to ±0.1%
Ultra-stable tantalum nitride resistors
•
Tight TC Tracking to ±5ppm/°C
Standard Sn/Pb and Pb-free terminations available
•
Ratio match tolerances to ±0.05%
•
Ultra-stable tantalum nitride resistors
•
Standard Sn/Pb and Pb-free terminations available
All Pb-free parts comply with EU Directive 2011/65/EU amended by (EU) 2015/863 (RoHS3)
IRC’s TaNSil
®
TSSOP resistor networks are ideally suited for high volume applications that demand a small, low-profile footprint.
The small wire-bondable chip package provides higher component density, lower resistor cost and high reliability.
The tantalum nitride film system on silicon provides precision tolerance, exceptional TCR tracking, low cost and miniature package.
Excellent performance in harsh, humid environments is a trademark of IRC’s self-passivating TaNSil
®
resistor film.
For applications requiring high performance resistor networks in a low cost, low profile, surface mount package, specify IRC TSSOP
resistor networks.
Electrical Data
Resistance Range
Absolute Tolerance
Ratio Tolerance to R1
Absolute TCR
Tracking TCR
Element Power Rating @ 70°C
Isolated Schematic
Bussed Schematic
Package Power Rating @ 70°C
Rated Operating Voltage
______
(not to exceed
√
P x R)
Operating Temperature
Noise
100mW
50mW
16-Pin
20-Pin
24-Pin
800mW
1.0W
1.0W
10Ω to 250KΩ
To ±0.1%
To ±0.05%
To ±25ppm/°C
To ±5ppm/°C
Environmental Data
Test Per
MIL-PRF-83401
Typical
Delta R
Max Delta
R
Thermal Shock
±0.02%
±0.1%
Power Conditioning
±0.03%
±0.1%
High Temperature Exposure
±0.03%
±0.5%
Short-time Overload
±0.02%
±0.5%
100 Volts
-55°C to
+125°C
<-30dB
Low Temperature Storage
±0.03%
±0.5%
Life
±0.05%
±0.1%
General Note
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s
right to make
considered accurate at time of going to print.
TT Electronics reserves the
own data and is
changes in product specification without notice or liability.
All information is subject to TT Electronics’
South Staples Street • Corpus Christi Texas
at time of
© IRC Advanced Film Division
• 4222
own data and is considered accurate
78411 USA
going to print.
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
BI Technologies IRC Welwyn
A subsidiary of
TT electronics plc
TSSOP Series Issue January 2009 Sheet 1 of 4
www.ttelectronics.com/resistors
© TT Electronics plc
06.18
Surface Mount TSSOP
Resistor Networks
TSSOP Series
Surface Mount TSSOP
Resistor Networks
Manufacturing Capabilities
ISOLATED SCHEMATIC A
BUSSED SCHEMATIC B
Absolute
TCR
(±ppm/°C)
Ohmic
Range
(Ω)
10 - 25
26 - 50
51 - 200
Available
Tolerances
Available
Ratio
Tolerances
FG
CDFG
CDFG
ABCDFG
Best
Tracking
(±ppm/°C)
100
50
10
5
Ohmic
Range
(W)
10 - 25
26 - 50
51 - 100
101 - 200
201 - 500
501 - 100K
Available
Tolerances
Available
Ratio
Tolerances
FG
DFG
CDFG
BCDFG
BCDFG
Best
Tracking
(±ppm/°C)
200
100
50
25
20
5
100
50
25
20
5
50
25
20
5
20
5
FGJ
DFGJ
CDFGJ
BCDFGJ
FGJ
FGJ
DFGJ
DFGJ
BCDFGJ
250
201 - 250K
BCDFGJ ABCDFG
FGJ
DFGJ
DFGJ
BCDFGJ
DFG
CDFG
BCDFG
BCDFG
26 - 50
51 - 200
100
201 - 250K
DFGJ
CDFGJ
BCDFGJ
CDFG
CDFG
ABFG
50
10
5
26 - 50
51 - 100
101 - 200
201 - 500
501 - 100K
BCDFGJ ABCDFG
DFGJ
DFGJ
BCDFGJ
CDFG
BCDFG
BCDFG
26 - 50
51 - 200
50
201 - 250K
DFGJ
CDFGJ
BCDFGJ
CDFG
CDFG
ABFG
50
10
5
51 - 100
101 - 200
201 - 500
501 - 100K
BCDFGJ ABCDFG
BCDFGJ
BCDFG
51 - 200
25
201 - 250K
CDFGJ
BCDFGJ
CDFG
ABFG
10
5
201 - 500
501 - 100K
BCDFGJ ABCDFG
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
TSSOP Series Issue January 2009 Sheet 2 of 4
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
BI Technologies IRC Welwyn
www.ttelectronics.com/resistors
© TT Electronics plc
06.18
Surface Mount TSSOP
Resistor Networks
TSSOP Series
Surface Mount TSSOP
Resistor Networks

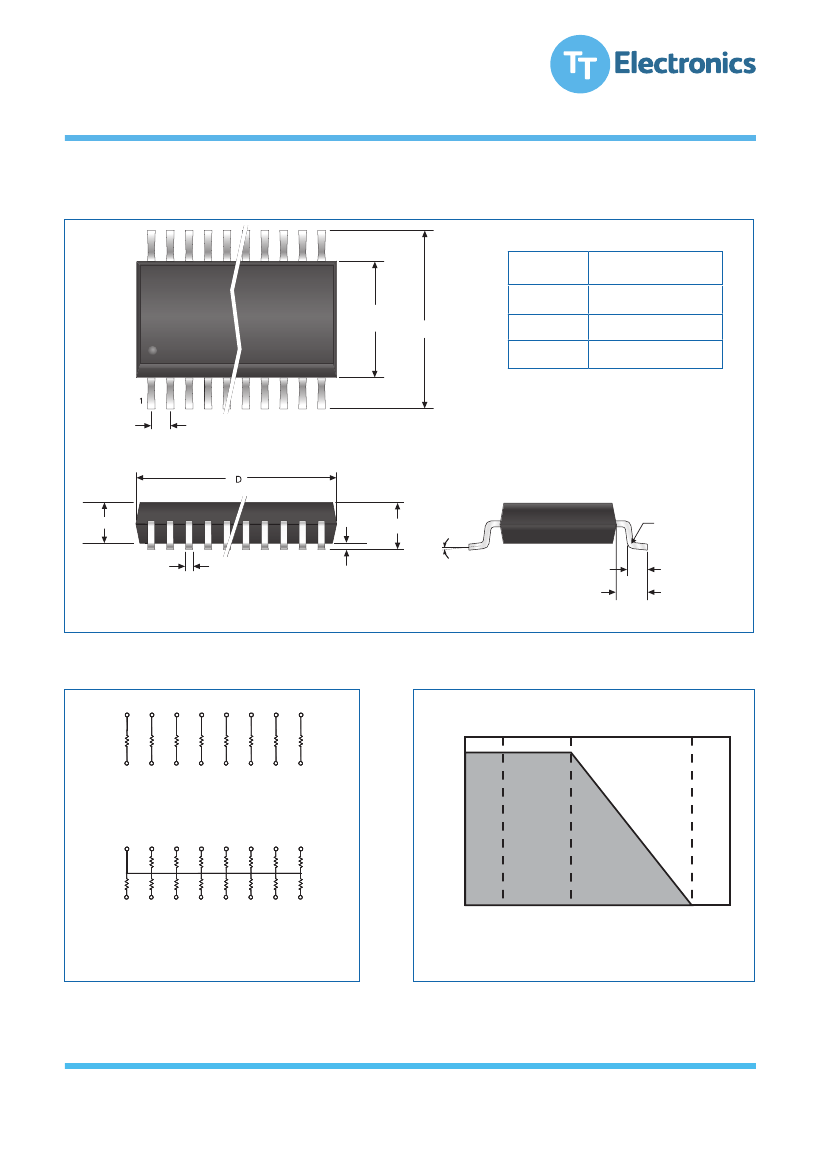

Physical Data
# OF PINS
16
4.4mm ±0.1
6.4 BSC
DIMENSION "D"
5.0mm±0.1
6.5mm±0.1
7.8mm±0.1
20
24
Note: N = number of pins (16, 20, 24)
0.65mm BSC
0.90mm±0.05
1.10 max
SEATING PLANE
R=0.09mm min
0.1mm
0.10mm±0.05
0° - 8°
0.60mm±0.15
1.0mm REF
Note: Lead Coplanarity 0.004" max.
Note: All dimesions exclude mold flash and
end flash which shall not exceed 0.006" per side.
Drawing proportions not to scale.
Schematic Data
N
R1
Power Derating Curve
100
1
2
3
Schematic A
Isolated
N
% Of Rated Power
50
R1
10
1
2
3
Schematic B
Bussed
Note: N = number of pins (16, 20, 24)
25°
70°
125°
Temperature in °C
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
TSSOP Series Issue January 2009 Sheet 3 of 4
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
BI Technologies IRC Welwyn
www.ttelectronics.com/resistors
© TT Electronics plc
06.18
Surface Mount TSSOP
Surface Mount TSSOP
Resistor Networks
Resistor Networks
TSSOP Series
Ordering Data
Prefix
Style, Schematic and Termination
GUS - TS8A - 01 - 1002 - F
B
TS8A = 16-pin, 8 Isolated Resistors with standard Sn/Pb terminations
TS8ALF = 16-pin, 8 Isolated Resistors with 100% matte tin, Pb-free terminations
TS8B = 16-pin, 15 Bussed Resistors with standard Sn/Pb terminations
TS8BLF = 16-pin, 15 Bussed Resistors with 100% matte tin, Pb-free terminations
TS0A = 20-pin, 10 Isolated Resistors with standard Sn/Pb terminations
TS0ALF = 20-pin, 10 Isolated Resistors with 100% matte tin, Pb-free terminations
TS0B = 20-pin, 19 Bussed Resistors with standard Sn/Pb terminations
TS0BLF = 20-pin, 19 Bussed Resistors with 100% matte tin, Pb-free terminations
TSCA = 24-pin, 12 Isolated Resistors with standard Sn/Pb terminations
TSCALF = 24-pin, 12 Isolated Resistors with 100% matte tin, Pb-free terminations
TSCB = 24-pin, 23 Bussed Resistors with standard Sn/Pb terminations
TSCBLF = 24-pin, 23 Bussed Resistors with 100% matte tin, Pb-free terminations
Absolute TCR Code
00 = ±250 ppm/°C; 01 = ±100 ppm/°C; 02 = ±50 ppm/°C; 03 = ±25 ppm/°C
Resistance Code
4-Digit Resistance Code
Ex: 1002 = 10KΩ, 50R1 = 50.1Ω
Absolute Tolerance Code
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%; C = ±0.25%; B = ±0.1%
Ratio Tolerance Code (optional)
G = ±2%; F = ±1%; D = ±0.5%; C = ±0.25%; B = ±0.1%; A = ±0.05%
Packaging
Specify tubes or tape & reel.
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
TSSOP Series Issue January 2009 Sheet 4 of 4
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
BI Technologies IRC Welwyn
www.ttelectronics.com/resistors
© TT Electronics plc
06.18
