790D
Vishay Sprague
Resin-Molded, Radial-Lead
Solid Tantalum Capacitors
FEATURES
•
Terminations: Tin/lead (SnPb), 100 % tin (Sn)
•
Four case sizes precisely molded with a
flame retardant epoxy resin
•
Stand off on all case sizes
•
Available on tape for automatic insertion
equipment
(only A- and B-case, C- and D-case on request)
•
Low leakage current
•
Low impedance
•
Extended value ranges available
•
Compliant to RoHS directive 2002/95/EC
Pb-free
Available
RoHS*
COMPLIANT
PERFORMANCE CHARACTERISTICS
Operating Temperature: - 55 °C to + 125 °C
ORDERING INFORMATION
790D
MODEL
790D =
Standard
and
extended
range
157
CAPACITANCE
Expressed in
picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros following.
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
006
DC VOLTAGE
RATING
Expressed in volts.
To complete the
three-digit block,
zeros precede the
voltage rating. A
decimal point is
indicated by an “R”
(6R3 = 6.3 V)
R
CASE
CODE
See
ratings
and
case
codes
table
2
STYLE
NUMBER
P
PACKAGING
E3
ROHS
COMPLIANT
E3 = 100 %
tin
termination
(RoHS
compliant)
Blank = SnPb
termination
Insulated
See taping specification
case
B : Bulk
(standard) G : Ammopack H = 16.5 mm
H : Ammopack H = 18.5 mm
I : Ammopack shouldered
Leads (A case)
X : Reel Pack H = 16.5 mm
Y : Reel Pack H = 18.5 mm
Z : Reel pack shouldered
Leads (A case)

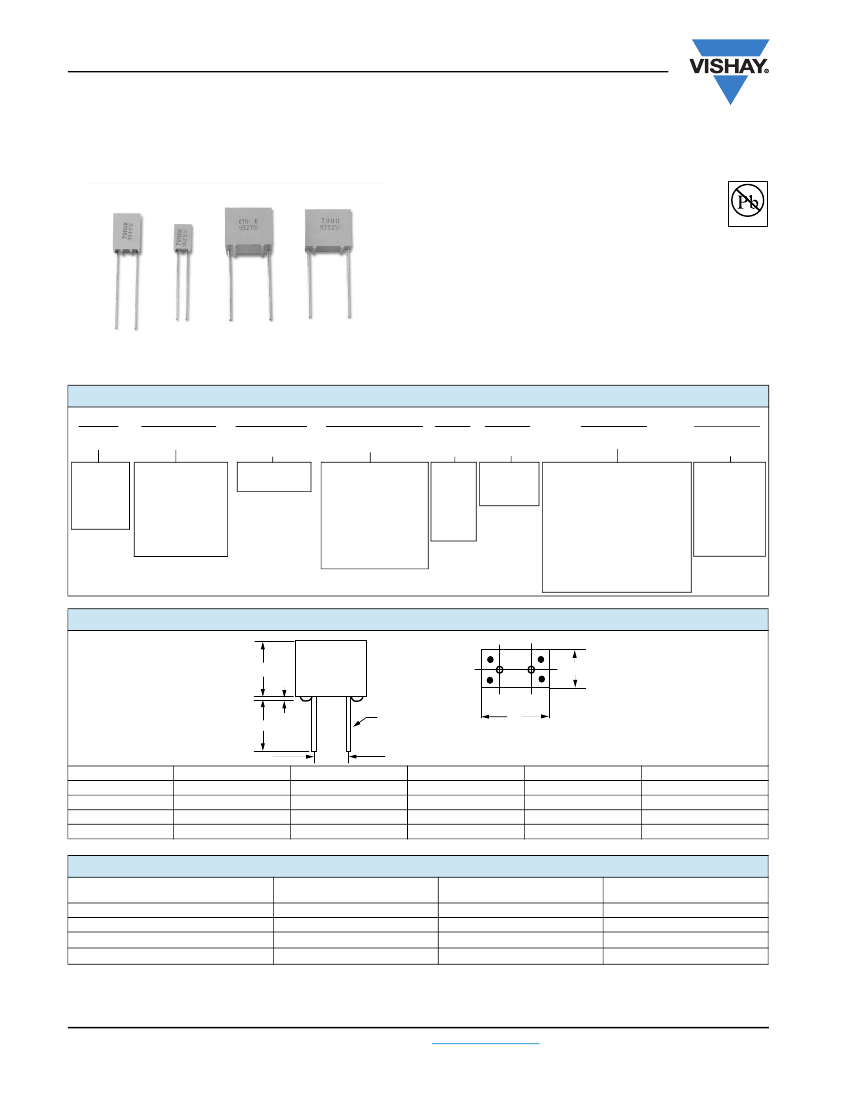

DIMENSIONS
in millimeters
H
0.3
MIN.
B
+
Ø
A
12 Min.
e
CASE CODE
A
B
C
D
H MAX. (mm)
7.3
10.5
10.5
10.5
A MAX. (mm)
4.7
7.3
12.3
12.3
B MAX. (mm)
4.2
4.8
7.3
12.3
E ± 0.15 (mm)
2.54
5.08
10.16
10.16
Ø 0.05 (+ 10 %) (mm)
0.5
0.5
0.6
0.6
PACKAGING QUANTITIES
CASE CODE
A
B
C
D
Note
(1)
Non preferred configuration on request only
* Pb containing terminations are not RoHS compliant, exemptions may apply
www.vishay.com
1
For technical questions, contact:
tantalum@vishay.com
Document Number: 42072
Revision: 28-Jul-10
REEL
X/Y
1000
1000
300
(1)
200
(1)
AMMO
G/H
1000
1000
300
(1)
200
(1)
BULK
B
500
250
100
50
790D
Resin-Molded, Radial-Lead
Solid Tantalum Capacitors
RATINGS AND CASE CODES
RATED VOLTAGE U
R
AT + 85 °C
6.3 V
C
R
µF
4.0 V
Std.
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
D
C
C
D
B
B
C
C
A
B
B
B
C
C
D
C
D
A
B
B
B
C
C
A
A
B
B
C
A
A
B
B
B
C
B
A
A
A
A
A
A
A
B
B
B
B
B
C
C
C
A
B
B
B
B
C
C
C
A
A
A
Ext.
6.3 V
Std.
Ext.
10 V
Std.
Ext.
10 V
16 V
20 V
25 V
35 V
40 V
50 V
Vishay Sprague
CATEGORY VOLTAGE U
C
AT + 125 °C
13 V
Std.
Ext.
16 V
Std.
Ext.
23 V
Std.
Ext.
25 V
Std.
A
Ext.
32 V
Std.
A
A
A
Ext.
Document Number: 42072
Revision: 28-Jul-10
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
2
790D
Vishay Sprague
Resin-Molded, Radial-Lead
Solid Tantalum Capacitors
STANDARD/EXTENDED RATINGS
CAPACITANCE
C
R
(µF)
CASE CODE
PART NUMBER
MAX. DCL
AT + 25 °C
(µA)
MAX. DF
120 Hz, AT + 25 °C
(%)
MAX. IMPEDANCE
100 kHz, AT + 25 °C
(Ω)
U
R
= 6.3 V AT + 85 °C, SURGE = 8 V . . . U
C
= 4 V AT + 125 °C, SURGE = 5 V
6.8
22
47
68
150
220
330
A
A
B
B
C
C
D
790D685X(*)6R3A2(#)
790D226X(*)6R3A2(#)
790D476X(*)6R3B2(#)
790D686X(*)6R3B2(#)
790D157X(*)6R3C2(#)
790D227X(*)6R3C2(#)
790D337X(*)6R3D2(#)
1.0
1.3
2.9
4.2
9.4
13.8
20.7
6
6
6
6
6
6
8
4.0
2.1
1.3
1.3
0.6
0.6
0.4
U
R
= 10 V AT + 85 °C, SURGE = 13 V . . . U
C
= 6.3 V AT + 125 °C, SURGE = 8 V
4.7
15
33
47
68
100
150
220
A
A
B
B
B
C
C
D
790D475X(*)010A2(#)
790D156X(*)010A2(#)
790D336X(*)010B2(#)
790D476X(*)010B2(#)
790D686X(*)010B2(#)
790D107X(*)010C2(#)
790D157X(*)010C2(#)
790D227X(*)010D2(#)
1.0
1.5
3.3
4.7
6.8
10.0
15.0
22.0
6
6
6
6
6
6
6
8
4.0
2.5
1.3
1.4
1.3
0.6
0.6
0.4
U
R
= 16 V AT + 85 °C, SURGE = 20 V . . . U
C
= 10 V AT + 125 °C, SURGE = 13 V
2.2
3.3
10
15
22
33
47
68
100
100
A
A
A
B
B
B
C
C
C
D
790D225X(*)016A2(#)
790D335X(*)016A2(#)
790D106X(*)016A2(#)
790D156X(*)016B2(#)
790D226X(*)016B2(#)
790D336X(*)016B2(#)
790D476X(*)016C2(#)
790D686X(*)016C2(#)
790D107X(*)016C2(#)
790D107X(*)016D2(#)
1.0
1.0
1.6
2.4
3.5
5.2
7.5
10.8
16.0
16.0
6
6
6
6
6
6
6
6
6
6
5.5
4.4
2.7
1.6
1.3
1.6
0.8
0.6
0.7
0.5
U
R
= 20 V AT + 85 °C, SURGE = 26 V . . . U
C
= 13 V AT + 125 °C, SURGE = 16 V
2.2
6.8
15
22
47
68
100
A
A
B
B
C
C
D
790D225X(*)020A2(#)
790D685X(*)020A2(#)
790D156X(*)020B2(#)
790D226X(*)020B2(#)
790D476X(*)020C2(#)
790D686X(*)020C2(#)
790D107X(*)020C2(#)
1.0
1.3
3.0
4.4
9.4
13.6
20.0
6
6
6
6
6
6
6
5.5
3.5
1.5
2.1
0.7
0.8
0.7
Note
• Extended Ratings in bold print
(*) Insert 0 for ± 20 % tolerance or 9 for ± 10 %
(#) See order information, packaging code
www.vishay.com
3
For technical questions, contact:
tantalum@vishay.com
Document Number: 42072
Revision: 28-Jul-10
790D
Resin-Molded, Radial-Lead
Solid Tantalum Capacitors
STANDARD/EXTENDED RATINGS
CAPACITANCE
C
R
(µF)
CASE CODE
PART NUMBER
MAX. DCL
AT + 25 °C
(µA)
MAX. DF
120 Hz, AT + 25 °C
(%)
MAX. IMPEDANCE
100 kHz, AT + 25 °C
(Ω)
Vishay Sprague
U
R
= 25 V AT + 85 °C, SURGE = 32 V . . . U
C
= 16 V AT + 125 °C, SURGE = 20 V
1.5
4.7
10
15
22
33
A
A
B
B
B
C
790D155X(*)025A2(#)
790D475X(*)025A2(#)
790D106X(*)025B2(#)
790D156X(*)025B2(#)
790D226X(*)025B2(#)
790D336X(*)025C2(#)
1.0
1.1
2.5
3.7
5.5
8.2
6
6
6
6
6
6
6.0
4.5
1.6
2.4
2.1
0.8
U
R
= 35 V AT + 85 °C, SURGE = 45 V . . . U
C
= 23 V AT + 125×C, SURGE = 29 V
3.3
10
33
A
B
C
790D335X(*)035A2(#)
790D106X(*)035B2(#)
790D336X(*)035C2(#)
1.2
3.5
11.6
6
6
6
6.0
2.6
1.3
U
R
= 40 V AT + 85 °C, SURGE = 52 V . . . U
C
= 25 V AT + 125 °C, SURGE = 32 V
0.10
0.33
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
A
A
A
A
B
B
B
B
B
C
C
C
790D104X(*)040A2(#)
790D334X(*)040A2(#)
790D474X(*)040A2(#)
790D105X(*)040A2(#)
790D155X(*)040B2(#)
790D225X(*)040B2(#)
790D335X(*)040B2(#)
790D475X(*)040B2(#)
790D685X(*)040B2(#)
790D106X(*)040C2(#)
790D156X(*)040C2(#)
790D226X(*)040C2(#)
1.0
1.0
1.0
1.0
1.0
1.0
1.3
1.8
2.7
4.0
6.0
8.8
6
6
6
6
6
6
6
6
6
6
6
6
30
14
11
6.5
5.2
4.0
2.8
2.0
1.6
1.3
1.0
0.8
U
R
= 50 V AT + 85 °C, SURGE = 65 V . . . U
C
= 32 V AT + 125 °C, SURGE = 41 V
0.10
0.15
0.22
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
A
A
A
A
A
B
B
B
B
C
C
C
790D104X(*)050A2(#)
790D154X(*)050A2(#)
790D224X(*)050A2(#)
790D684X(*)050A2(#)
790D105X(*)050A2(#)
790D155X(*)050B2(#)
790D225X(*)050B2(#)
790D335X(*)050B2(#)
790D475X(*)050B2(#)
790D685X(*)050C2(#)
790D106X(*)050C2(#)
790D156X(*)050C2(#)
1.0
1.0
1.0
1.0
1.0
1.0
1.1
1.6
2.3
3.4
5.0
7.5
6
6
6
6
6
6
6
6
6
6
6
6
30
24
18
8.0
6.5
5.2
4.0
2.8
2.0
1.6
1.3
1.0
Note
• Extended Ratings in bold print
(*) Insert 0 for ± 20 % tolerance or 9 for ± 10 %
(#) See order information, packaging code
Document Number: 42072
Revision: 28-Jul-10
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
4
790D
Vishay Sprague
Resin-Molded, Radial-Lead
Solid Tantalum Capacitors

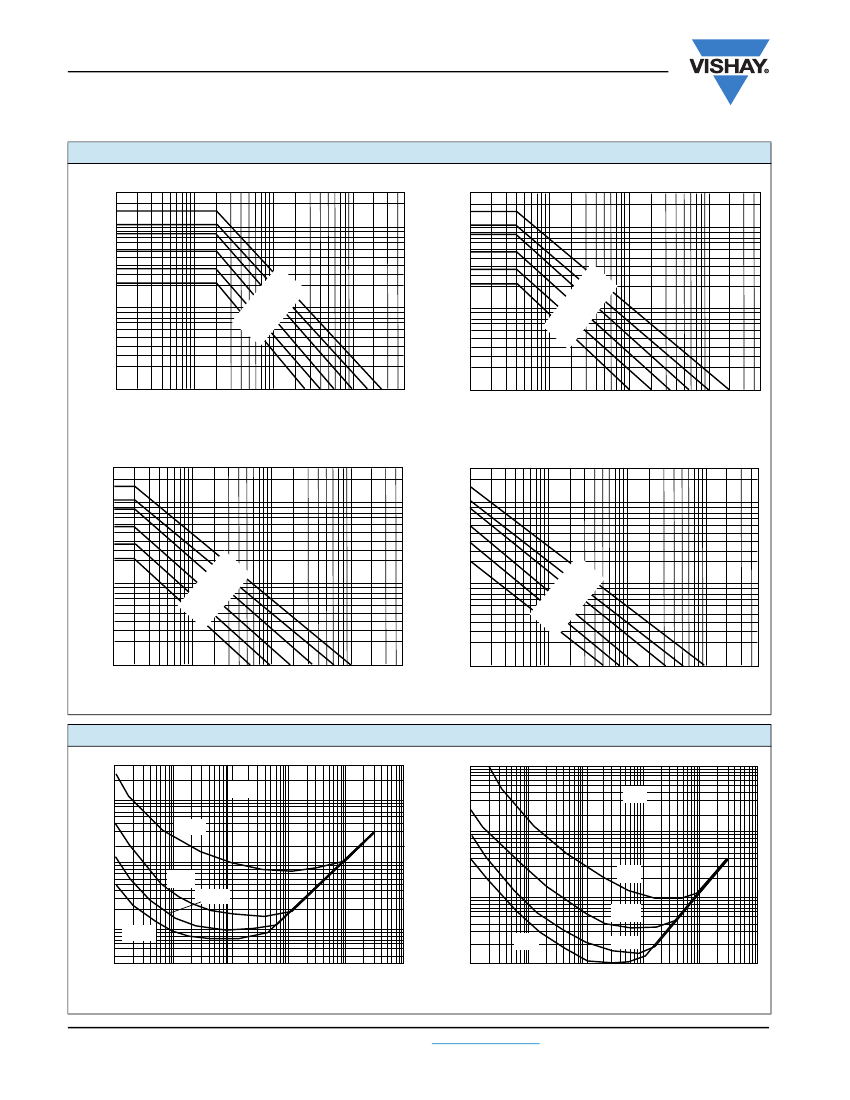

MAXIMUM PERMISSIBLE RIPPLE VOLTAGE AT + 25 °C
CASE SIZE “A”
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
5
10K
50
100K
500
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
5
10K
50
100K
500
5
35 0 V
/4
2 0V
16 5 V
1 V
6. 0 V
3V
CASE SIZE “B”
35 50
/ V
25 40 V
16 V
10 V
6. V
3V
U
rms
FREQUENCY IN Hz
CASE SIZE “C”
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
5
10K
50
100K
500
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
U
rms
FREQUENCY IN Hz
CASE SIZE “D”
5
35 0 V
/4
2 0
16 5 V V
10 V
6. V
3V
U
rms
U
rms
35 50
/ V
25 40
V
16 V
10 V
6. V
3V
5
10K
50
100K
500
FREQUENCY IN Hz
FREQUENCY IN Hz
TYPICAL CURVES OF IMPEDANCE VS FREQUENCY
30
6.3 V
10
6.8 µF
100
35 V
10
Ω
1
47 µF
150 µF
0.1
Ω
1 µF
1
6.8 µF
330 µF
47 µF
0.1
22 µF
1K
10K
100K
1M
10M
100M
1K
10K
100K
1M
10M
100M
FREQUENCY IN Hz
FREQUENCY IN Hz
www.vishay.com
5
For technical questions, contact:
tantalum@vishay.com
Document Number: 42072
Revision: 28-Jul-10
