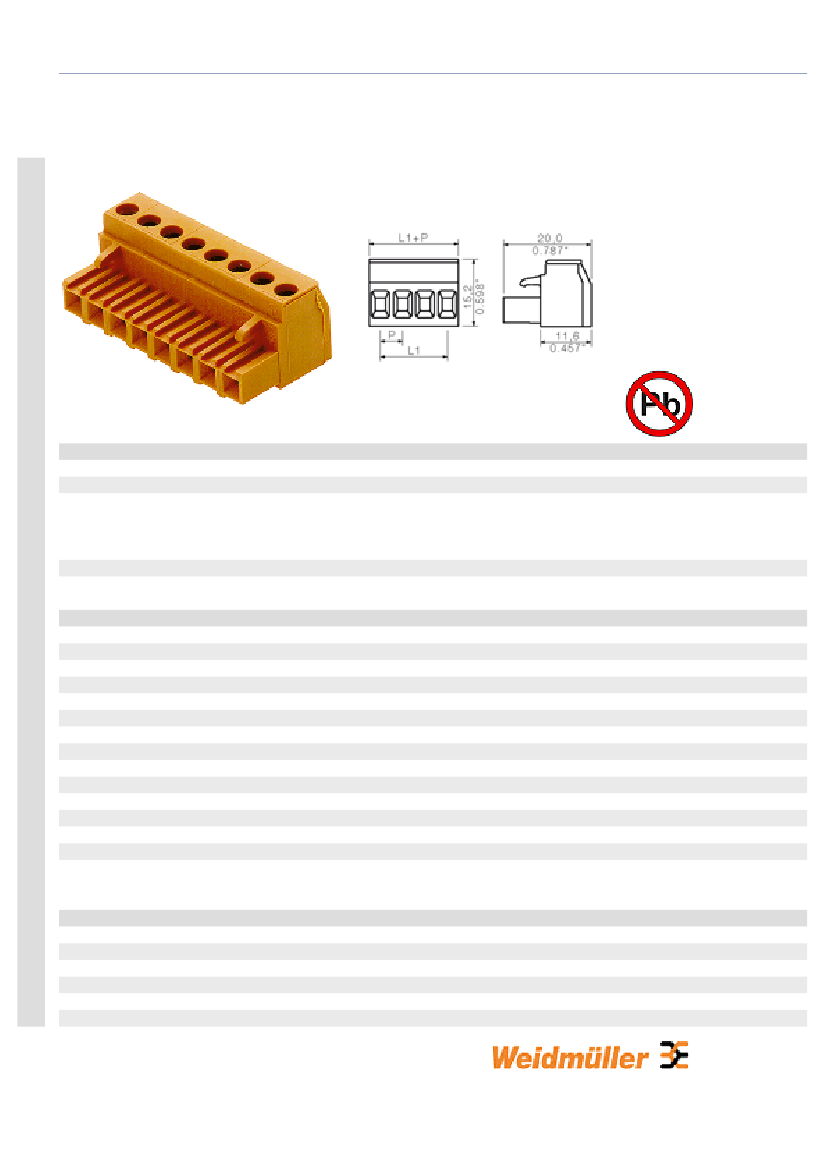

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, cable grip connection pitch 5.08 | BLA | BLA
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
1282860000
BLA 13 SN OR
PCB plug-in connector, Female connectors,
Clamping yoke connection, Clamping range, max.:
3.32 mm², Pitch: 5.08 mm, No. of poles: 13, 180°,
Box
4008190100476
50 pc(s).
Clamping yoke connection
180°
5.08 mm
0.2 inch
13
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
7 mm
60.96 mm
2.4 inch
Finger-safe unplugged/ back-of-hand-safe
plugged
PBT GF
orange
Similar to RAL 2000
IIIa
V-0
>= 200
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, cable grip connection pitch 5.08 | BLA | BLA
Material data
Contact base material
Contact surface
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
CuSn
tinned
0.13 mm²
3.32 mm²
28
16
0.2 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
2.4 mm x 1.5 mm;
17.5 A
12.5 A
16 A
11 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 100 A
300 V
10 A
26
12
300 V
10 A
26
12
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, cable grip connection pitch 5.08 | BLA | BLA
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1281760000
1281860000
1281960000
1282060000
1282160000
1282260000
1282360000
Part designation
BLA 2 SN OR
BLA 3 SN OR
BLA 4 SN OR
BLA 5 SN OR
BLA 6 SN OR
BLA 7 SN OR
BLA 8 SN OR
Version
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 2, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 3, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 5, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 7, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 8, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Socket
strips, cable grip connection pitch 5.08 | BLA | BLA
1282460000
1282560000
1282660000
1282760000
1282960000
1283060000
1283160000
1283260000
1283360000
1283460000
1283560000
1283660000
1314260000
1314360000
1314460000
BLA 9 SN OR
BLA 10 SN OR
BLA 11 SN OR
BLA 12 SN OR
BLA 14 SN OR
BLA 15 SN OR
BLA 16 SN OR
BLA 17 SN OR
BLA 18 SN OR
BLA 19 SN OR
BLA 20 SN OR
BLA 21 SN OR
BLA 22 SN OR
BLA 23 SN OR
BLA 24 SN OR
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 10, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 11, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 12, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 14, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 15, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 16, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 17, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 18, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 19, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 20, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 21, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 22, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 23, 180°, Box
PCB plug-in connector, Female connectors, Clamping yoke
connection, Clamping range, max.: 3.32 mm², Pitch: 5.08 mm, No.
of poles: 24, 180°, Box
