Series 200 thru 216
Male/Female DIP Jumpers
Features:
• Aries offers a wide array of DIP jumper configurations for all
your programming needs.
• Reliable, electronically tested solder connections.
• Protective covers are ultrasonically welded on and
provide strain relief for cables.
• 10-color cable allows for easy identification and tracing.
• Consult factory for jumper lengths under 2.000 [50.80].
Specifications:
• All body material is red UL 94-HB Glass-filled Nylon.
Consult factory for UL 94V-0 rated material.
• Solder tail pins are Brass, 1/2 hard.
• Socket contacts Grade A spring-tempered Phosphor Bronze
per QQ-B-750.
• Pin and contact plating is 10µ [.25µm] min. Gold per MIL-G-
45204 over 50µ [1.27µm] min. Nickel per
QQ-N-290.
• Cable insulation is UL Style 2697 Polyvinyl Chloride (PVC).
• Laminate is clear PVC, self-extinguishing.
• Conductors are 28 AWG, 7/36 strand, Tinned Copper per
ASTM B 33.
• Cable current rating=1 Amp @ 10°C [50°F] above
ambient.
• Cable voltage rating=300 Volts.
• Cable temperature rating=176°F [80°C].
• Cable capacitance=13.0 pf/ft. [42.7pf/meter] nominal
@1 MHz.
• Crosstalk: 10’ sample, 5 ns rise time with 2 lines
driven. Near end=4.7%; Far end=4.3% nominal.
•Propagation delay=1.5 ns/ft. [4.9 ns/meter] nominal.
•Insulation resistance=1010 Ohms (10 ft. [3 meters] min.).
Mounting Considerations:
•Suggested PCB hole size=.033 ± .002 [.86 ± .05].
Note: Aries specializes in custom design and production. In addition to
the standard products shown on this page, special materials, platings,
sizes, and configurations can be furnished, depending on quantities.
Aries reserves the right to change product specifications without notice.
ORDERING INFORMATION
XX-XXX-XXXXX
No. of
conductors
(see table)
Length “L”
in inches
(min. length
=2.000 [50.80])
Optional suffix:
ST=stripped and
Tinned ends
(Series 206, 210)
Jumper
series
A
LL

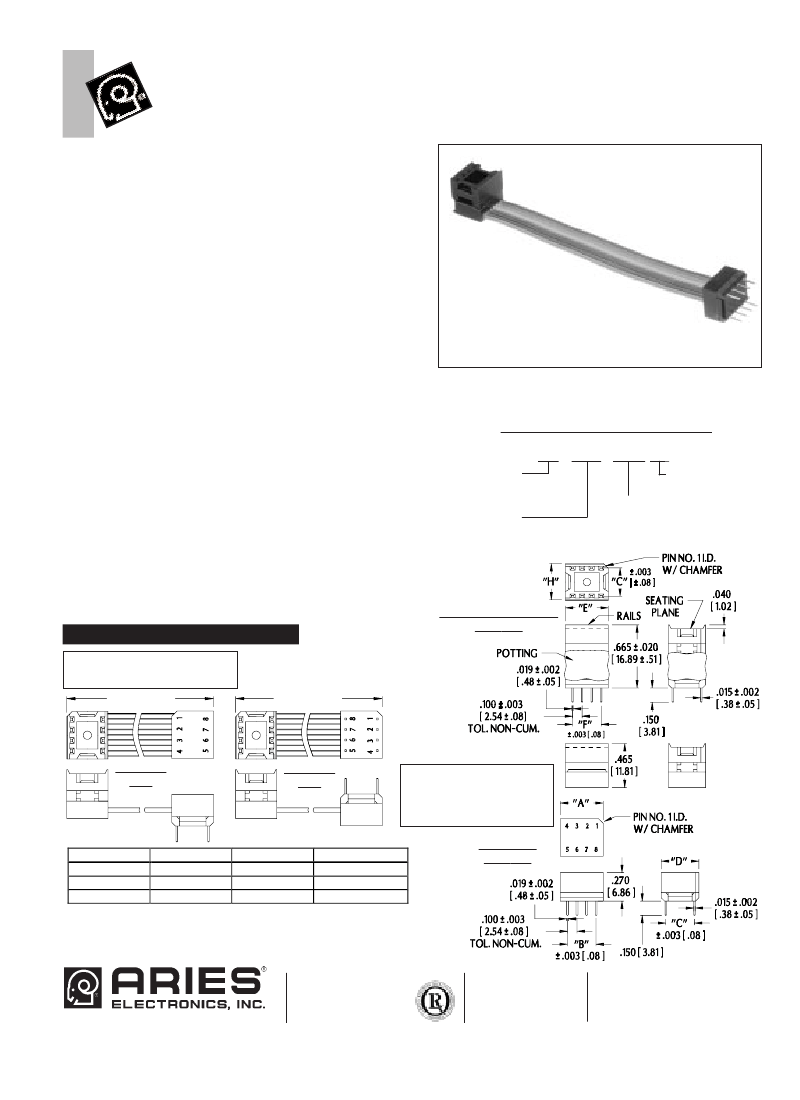

DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“L” ± .125
Note: 18, 20 and
28 position headers
do not have
numbers on covers.
“L” ± .125
HEADER/SOCKET
DETAIL
SERIES
200
SERIES
214

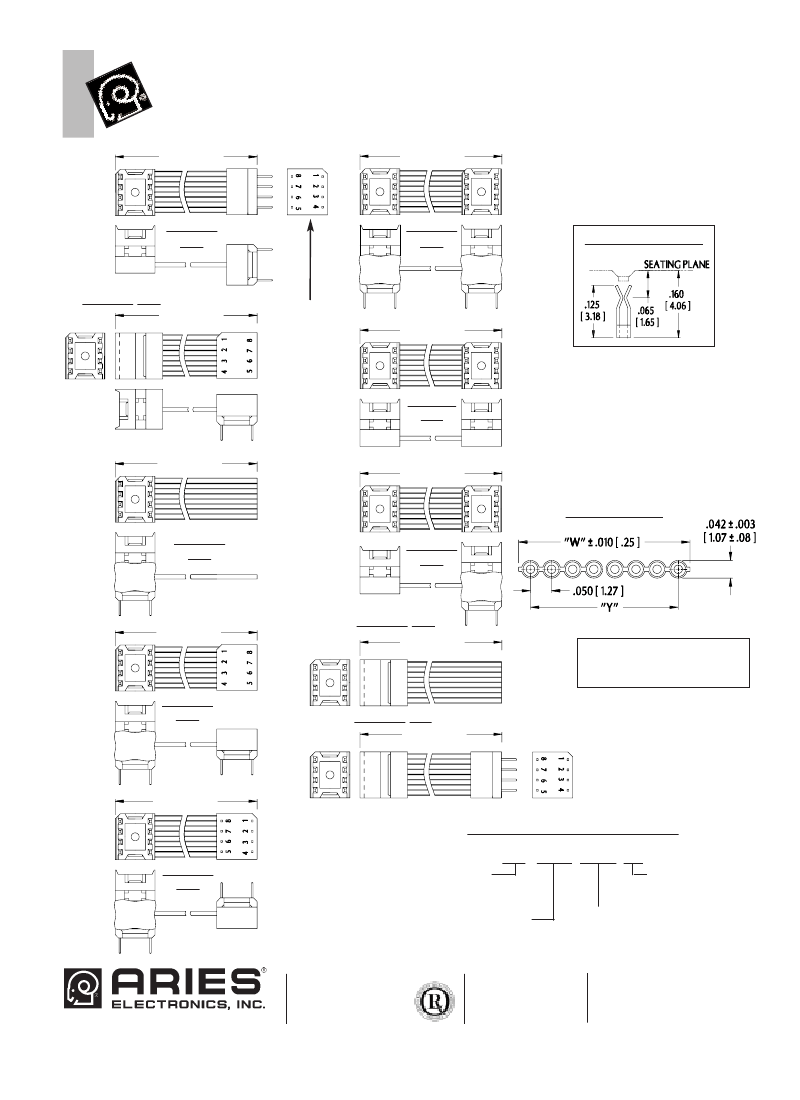

See Data Sheet No.
11013 for other
configurations and
additional information.
HEADER
DETAIL
Centers “C”
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. “D”
.395 [10.03]
.495 [12.57]
.695 [17.65]
Dim. “H”
.390 [9.90]
.490 [12.45]
.690 [17.54]
Available Sizes
8, 14 thru 20
22
24, 28, 40
“A”=(NO. OF CONDUCTORS X .050 [1.27]) + .095 [2.41]
“B”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
“E”=(NO. OF CONDUCTORS + 1) X .050 [1.27]
“F”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
