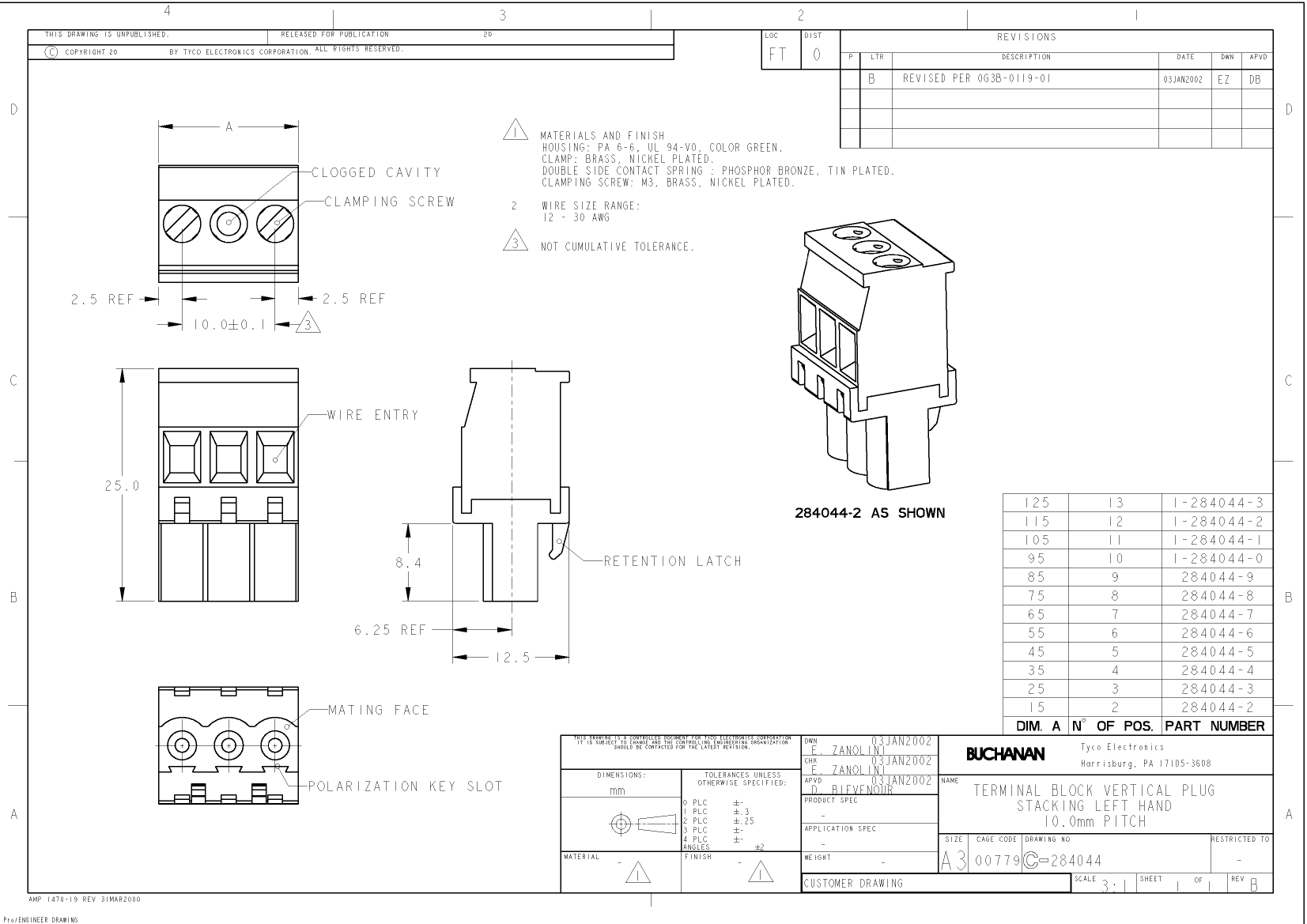

PDF
Preview

1-284044-0

Description
term block plug 10pos 10mm
CategoryThe connector
File Size36KB，1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

1-284044-0 Overview

term block plug 10pos 10mm

1-284044-0 Parametric

Parameter NameAttribute value
Datasheets
284044
Standard Package200
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Headers, Plugs and Sockets
PackagingBulk
Terminal Block TypePlug, Female Sockets
Number of Positions10
Positions Per Level10
Pitch0.394" (10.00mm)
Number of Levels1
Header Orientati-
Plug Wire Entry270°
TerminatiScrew
Wire Gauge12-30 AWG
Curre15A
Voltage300V
Mounting TypeFree Hanging (In-Line)
FeaturesRetention Latches (Non-Wire Side)
ColGree
Mating Products1-282827-0-ND - TERM BLOCK HDR 10POS VERT 10MM1-282826-0-ND - TERM BLOCK HDR 10POS VERT 10MM1-282816-0-ND - TERM BLOCK HDR 10POS R/A 10MM1-282817-0-ND - TERM BLOCK HDR 10POS R/A 10MM

Preview

Download Datasheet

1-284044-0 Related Products

1-284044-0 284044-3 284044-4 284044-5 284044-6 284044-9 284044-7 1-284044-1 1-284044-2 1-284044-3
Description term block plug 10pos 10mm term block plug 3pos 270deg 10mm term block plug 4pos 270deg 10mm term block plug 5pos 270deg 10mm term block plug 6pos 270deg 10mm term block plug 9pos 270deg 10mm term block plug 7pos 270deg 10mm term block plug 11pos 10mm term block plug 12pos 10mm term block plug 13pos 10mm
Standard Package 200 600 400 400 400 200 200 100 100 100
Category Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects
Family Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets Terminal Blocks - Headers, Plugs and Sockets
Packaging Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk
Terminal Block Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 10 3 4 5 6 9 7 11 12 13
Positions Per Level 10 3 4 5 6 9 7 11 12 13
Pitch 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm)
Number of Levels 1 1 1 1 1 1 1 1 1 1
Plug Wire Entry 270° 270° 270° 270° 270° 270° 270° 270° 270° 270°
Terminati Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw
Wire Gauge 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG
Curre 15A 15A 15A 15A 15A 15A 15A 15A 15A 15A
Voltage 300V 300V 300V 300V 300V 300V 300V 300V 300V 300V
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Features Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side)
Col Gree Gree Gree Gree Gree Gree Gree Gree Gree Gree
Mating Products 1-282827-0-ND - TERM BLOCK HDR 10POS VERT 10MM1-282826-0-ND - TERM BLOCK HDR 10POS VERT 10MM1-282816-0-ND - TERM BLOCK HDR 10POS R/A 10MM1-282817-0-ND - TERM BLOCK HDR 10POS R/A 10MM 282827-3-ND - TERM BLOCK HDR 3POS VERT 10MM282826-3-ND - TERM BLOCK HDR 3POS VERT 10MM282817-3-ND - TERM BLOCK HDR 3POS R/A 10MM282816-3-ND - TERM BLOCK HDR 3POS R/A 10MM 282827-4-ND - TERM BLOCK HDR 4POS VERT 10MMA113310-ND - TERM BLOCK HDR 4POS VERT 10MM282817-4-ND - TERM BLOCK HDR 4POS R/A 10MM282816-4-ND - TERM BLOCK HDR 4POS R/A 10MM 282827-5-ND - TERM BLOCK HDR 5POS VERT 10MM282826-5-ND - TERM BLOCK HDR 5POS VERT 10MM282816-5-ND - TERM BLOCK HDR 5POS R/A 10MM282817-5-ND - TERM BLOCK HDR 5POS R/A 10MM 282827-6-ND - TERM BLOCK HDR 6POS VERT 10MMA113311-ND - TERM BLOCK HDR 6POS VERT 10MM282817-6-ND - TERM BLOCK HDR 6POS R/A 10MM282816-6-ND - TERM BLOCK HDR 6POS R/A 10MM 282827-9-ND - TERM BLOCK HDR 9POS VERT 10MM282826-9-ND - TERM BLOCK HDR 9POS VERT 10MM282816-9-ND - TERM BLOCK HDR 9POS R/A 10MM282817-9-ND - TERM BLOCK HDR 9POS R/A 10MM 282827-7-ND - TERM BLOCK HDR 7POS VERT 10MM282826-7-ND - TERM BLOCK HDR 7POS VERT 10MM282816-7-ND - TERM BLOCK HDR 7POS R/A 10MM282817-7-ND - TERM BLOCK HDR 7POS R/A 10MM 1-282827-1-ND - TERM BLOCK HDR 11POS VERT 10MM1-282826-1-ND - TERM BLOCK HDR 11POS VERT 10MM1-282817-1-ND - TERM BLOCK HDR 11POS R/A 10MM1-282816-1-ND - TERM BLOCK HDR 11POS R/A 10MM 1-282827-2-ND - TERM BLOCK HDR 12POS VERT 10MM1-282826-2-ND - TERM BLOCK HDR 12POS VERT 10MM1-282817-2-ND - TERM BLOCK HDR 12POS R/A 10MM1-282816-2-ND - TERM BLOCK HDR 12POS R/A 10MM 1-282827-3-ND - TERM BLOCK HDR 13POS VERT 10MM1-282826-3-ND - TERM BLOCK HDR 13POS VERT 10MM1-282817-3-ND - TERM BLOCK HDR 13POS R/A 10MM1-282816-3-ND - TERM BLOCK HDR 13POS R/A 10MM
