1-284051-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-284051-4

1-284051-4: Descriptionterm block plug 2pos 10.16mm; CategoryThe connector; File Size217KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

1-284051-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-284051-4	-	-	View	Buy Now

1-284051-4 Overview

term block plug 2pos 10.16mm

1-284051-4 Parametric

Parameter Name	Attribute value
Datasheets
284051
RoHS Informati
1-284051-4 Statement of Compliance
RoHS 2 Stateme
Standard Package	100
Category	Connectors, Interconnects
Family	Terminal Blocks - Headers, Plugs and Sockets
Packaging	Bulk
Terminal Block Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Pitch	0.400" (10.16mm)
Number of Levels	1
Header Orientati	-
Plug Wire Entry	90°
Terminati	Screw
Wire Gauge	12-30 AWG
Curre	15A
Voltage	300V
Mounting Type	Free Hanging (In-Line)
Features	Retention Latches (Wire Side)
Col	Gree
Mating Products	282819-2-ND - TERM BLOCK HDR 2POS R/A 10.16MM282818-2-ND - TERM BLOCK HDR 2POS R/A 10.16MM1776161-2-ND - TERM BLOCK HDR 2POS VERT 10.16MMA113312-ND - TERM BLOCK HDR 2POS VERT 10.16MM

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

PART STATUS UPDATED

11JAN2018

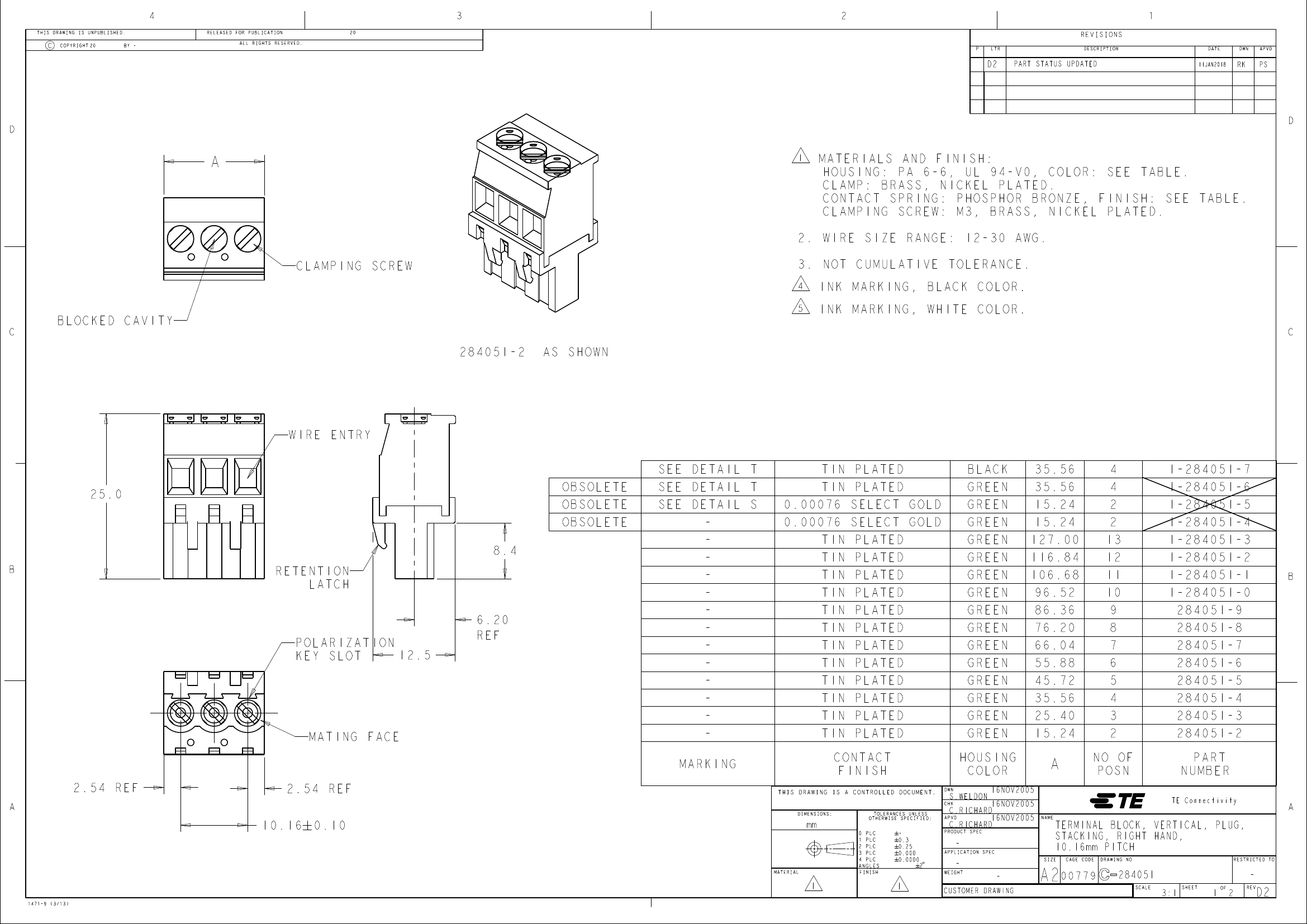

MATERIALS AND FINISH:

HOUSING: PA 6-6, UL 94-V0, COLOR: SEE TABLE.

CLAMP: BRASS, NICKEL PLATED.

CONTACT SPRING: PHOSPHOR BRONZE, FINISH: SEE TABLE.

CLAMPING SCREW: M3, BRASS, NICKEL PLATED.

2. WIRE SIZE RANGE: 12-30 AWG.

CLAMPING SCREW

3. NOT CUMULATIVE TOLERANCE.

INK MARKING, BLACK COLOR.

INK MARKING, WHITE COLOR.

BLOCKED CAVITY

284051

-2

AS SHOWN

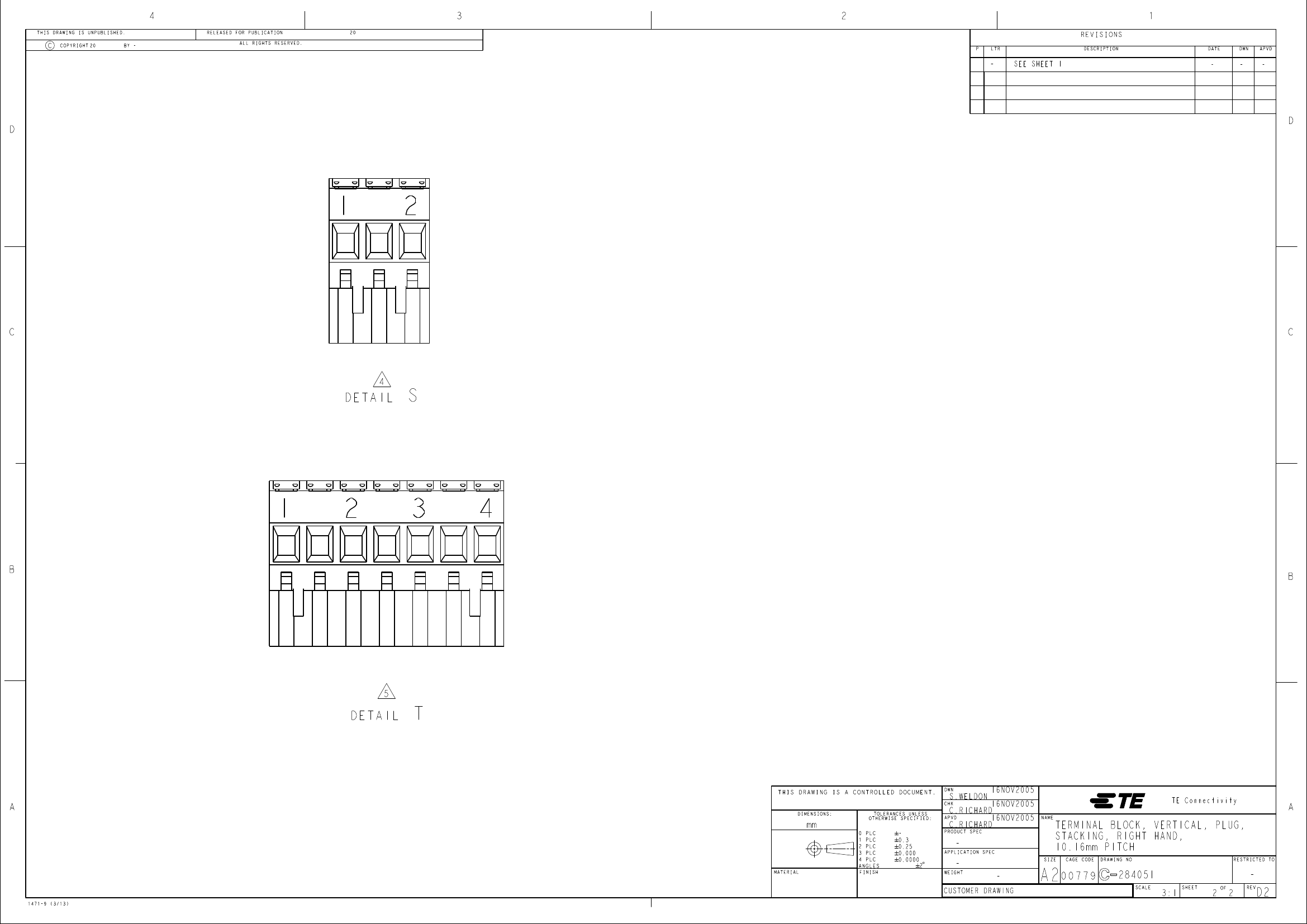

WIRE ENTRY

SEE DETAIL T

SEE DETAIL S

6.20

REF

12.5

MATING FACE

TIN PLATED

BLACK

35.56

15.24

1- 284051 -7

1- 284051 -6

1- 284051 -5

1- 284051 -4

1- 284051 -3

1- 284051 -1

1- 284051 -0

284051 -8

284051 -7

284051 -5

284051 -4

284051 -3

284051 -2

PART

NUMBER

TE Connectivity

NAME

25.0

OBSOLETE

8.4

0.00076 SELECT GOLD

TIN PLATED

CONTACT

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

0.00076 SELECT GOLD

TIN PLATED

GREEN

127.00

116.84

106.68

96.52

86.36

76.20

55.88

45.72

35.56

15.24

25.40

66.04

NO OF

POSN

RETENTION

LATCH

1- 284051 -2

284051 -9

POLARIZATION

KEY SLOT

284051 -6

TIN PLATED

GREEN

MARKING

2.54

REF

2.54

10.16

REF

HOUSING

COLOR

DWN

CHK

S.WELDON

C.RICHARD

16NOV2005

0.10

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.25

0.000

0.0000

PRODUCT SPEC

C.RICHARD

APPLICATION SPEC

2 $

WEIGHT

1471-9 (3/13)

CUSTOMER DRAWING

00779

SIZE

TERMINAL BLOCK, VERTICAL, PLUG,

STACKING, RIGHT HAND,

10.16mm PITCH

CAGE CODE

DRAWING NO

RESTRICTED TO

284051

SCALE

3:1

SHEET

REV
