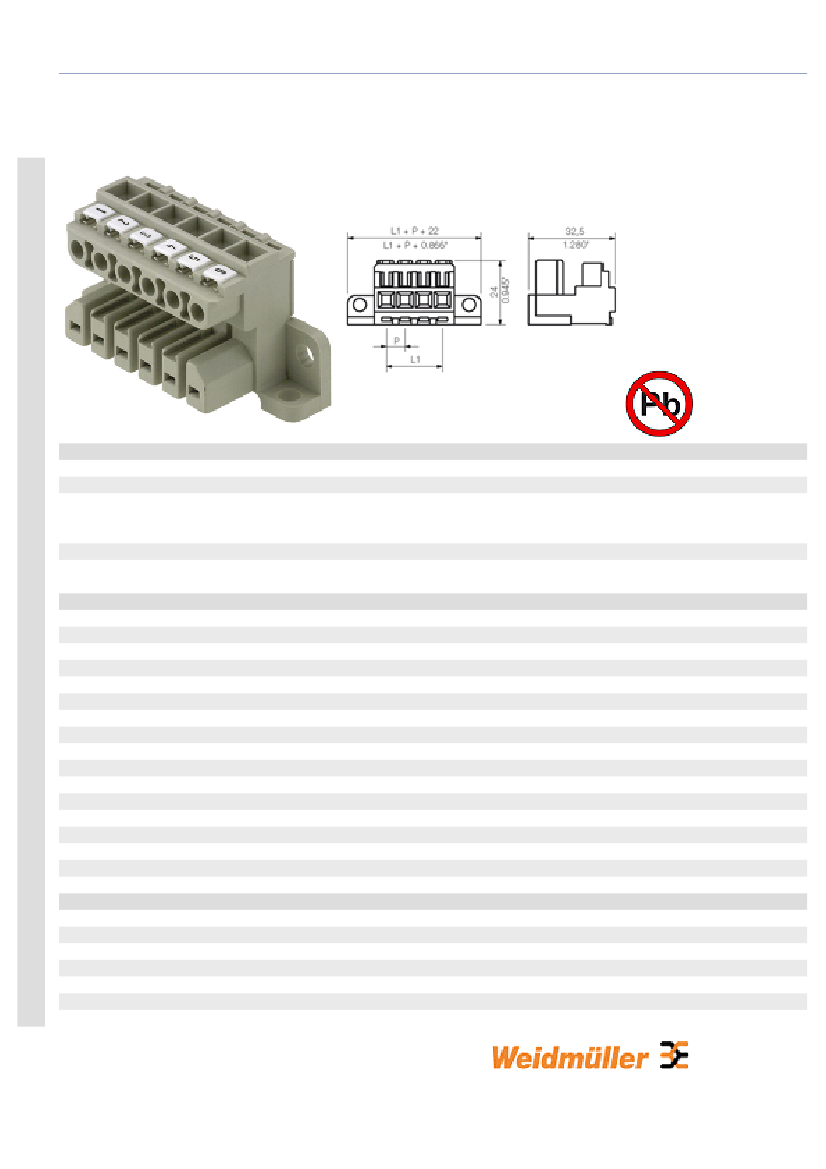

Product catalogue | PCB connection systems | PCB plug-in connectors | STV high-performance connector | Socket
connectors, pressure clamp connection, pitch 7.00 | STWS SB
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1612950000
STW S 4 SB GR
PCB plug-in connector, Female connectors, Leaf
spring connection, Clamping range, max.: 4 mm²,
Pitch: 7.00 mm, No. of poles: 4, 90°, Box
4008190401375
10 pc(s).
Leaf spring connection
90°
7 mm
0.276 inch
4
1
0.6 x 3.5
DIN 5264
0.5 Nm
0.6 Nm
M3
9 mm
21 mm
0.827 inch
IP 20
Safe from finger touch
Wemid (PA)
pebble grey
Similar to RAL 7032
I
V-0
>= 600
CuZn
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | STV high-performance connector | Socket
connectors, pressure clamp connection, pitch 7.00 | STWS SB
Material data
Contact surface
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1977 rating data
Rated voltage (UL 1977)
Rated current (UL 1977)
AWG-conductor, min. (UL 1977)
AWG-conductor, max. (UL 1977)
silver-plated
0.32 mm²
4 mm²
22
12
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
2.8 mm x 2.2 mm;
32 A
28 A
32 A
24 A
1,000 V
500 V
500 V
6 kV
6 kV
6 kV
3 x 1s with 340 A
300 V
25 A
20
12
600 V
25 A
22
12
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | STV high-performance connector | Socket
connectors, pressure clamp connection, pitch 7.00 | STWS SB
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
Similar products
Order No.
1612930000
1612940000
1612960000
1612970000
1612980000
1612990000
1613000000
1613010000
Part designation
STW S 2 SB GR
STW S 3 SB GR
STW S 5 SB GR
STW S 6 SB GR
STW S 7 SB GR
STW S 8 SB GR
STW S 9 SB GR
STW S 10 SB GR
Version
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 2, 90°,
Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 3, 90°,
Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 5, 90°,
Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 6, 90°,
Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 7, 90°,
Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 8, 90°,
Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 9, 90°,
Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 4 mm², Pitch: 7.00 mm, No. of poles: 10, 90°,
Box
-3-
