Part Number

Search

8012950000

Description
interface rsf 50 pos
CategoryThe connector
File Size82KB,3 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

8012950000 Online Shopping

Suppliers Part Number Price MOQ In stock
8012950000 - - View Buy Now

8012950000 Overview

interface rsf 50 pos

8012950000 Parametric

Parameter NameAttribute value
Datasheets
8012950000
Standard Package1
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Interface Modules
Process Side ConnectiTerminal Blocks - Screw Connecti
Control Side ConnectiRectangular, Male
Control Side Cable RetaineLatches
Positions / Poles50
Features-
Voltage - Rated60VAC, 75VDC
Current Rating (Per Contact)1A
Operating Temperature0°C ~ 55°C
Length3.74" (95.00mm)
Width3.43" (87.00mm)
Wire Gauge12-26 AWG
Associated Produc38340-ND - DIN RAIL 35MMX7.5MM UNSLOT 2M49800-ND - DIN RAIL 35MMX7.5MM UNSLOT 2M0122800000-ND - DIN RAIL 32X15MM UNSLOT STEEL 2M0199360000-ND - BRACKET END TS32 FOR SAK16 PA BG281-2903-ND - ENDPLATE EW 35 FOR TS 35 PA BG
Other NamesQ4254202T0759320

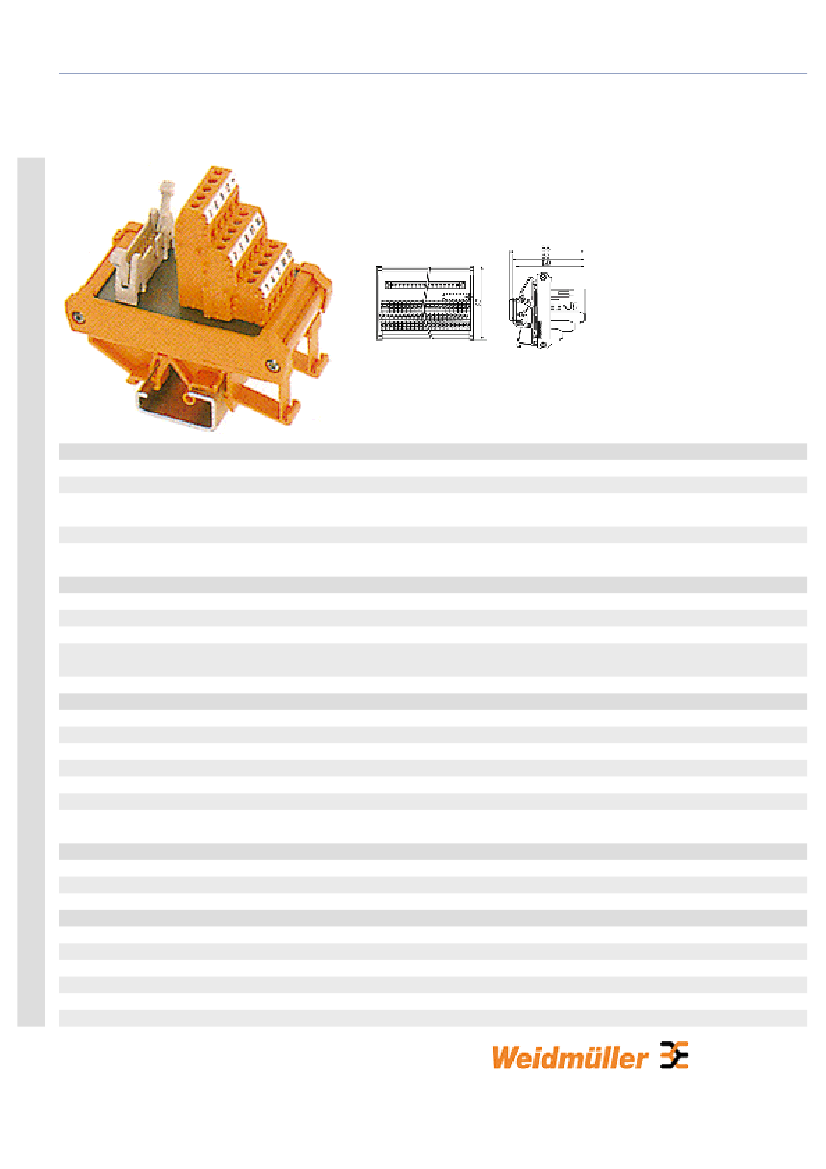

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 603-1 | RSF screw connection /
IEC 603-1
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Connection data
Connection on control side
Connection on process side
Contact assembly
Implementation of connection level / plug
connector
Ratings
Ambient temperature (operational)
Number of signals
Rated control voltage
Rated current per connection
Storage temperature
Test torque
Test voltage (~eff)
Insulation coordination (EN 50 178)
Overvoltage category
Pollution severity
Connection cross-section
Flexible, max. (H07V-U)
Flexible, max. AEHK
Flexible, min. (AEHK)
Flexible, min. (H07V-U)
Solid, max. (H07V-U)
Solid, min. (H07V-U)
8012950000
RS F50 LP3R 3/51
Interface unit, Plug-in connector, acc. to IEC
603-1/ DIN 41651, Number of signals: 50
4008190126810
1 pc(s).
Plug-in connector, acc. to IEC 603-1/ DIN 41651
PCB terminal LP3R
50-pole
1:1
0 °C...+55 °C
50
60 V AC/ 75 V DC
1A
-40 °C...+70 °C
0.5 Nm
1 kV
III
2
1.5 mm²
2.5 mm²
0.5 mm²
0.5 mm²
4 mm²
0.5 mm²
-1-
