ED1100/16

Description
term block plug 16pos 90deg 5mm
CategoryThe connector
File Size660KB,1 Pages
ManufacturerOn-Shore Technology ( OST )
Websitehttp://www.on-shore.com
Environmental Compliance
Download Datasheet Parametric View All

ED1100/16 Overview

term block plug 16pos 90deg 5mm

ED1100/16 Parametric

Parameter NameAttribute value
Datasheets
ED1100/X, EDZ1100/X
Product Photos
ED(Z)1100/16
Other Related Documents
ED Part Number Breakdow
Catalog Drawings
ED1100 Series F
ED1100 Series Side
Standard Package50
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Headers, Plugs and Sockets
PackagingBulk
Terminal Block TypePlug, Female Sockets
Number of Positions16
Positions Per Level16
Pitch0.197" (5.00mm)
Number of Levels1
Header Orientati-
Plug Wire Entry90°
TerminatiScrew
Wire Gauge10-22 AWG
Curre15A
Voltage300V
Mounting TypeFree Hanging (In-Line)
FeaturesRetention Latches (Non-Wire Side)
ColGree
Dynamic CatalogED1100 and EDZ1100 Series
Mating ProductsED1845-ND - TERM BLOCK HDR 16POS VERT 5MMED1813-ND - TERM BLOCK HDR 16POS R/A 5MM
Other NamesED2387

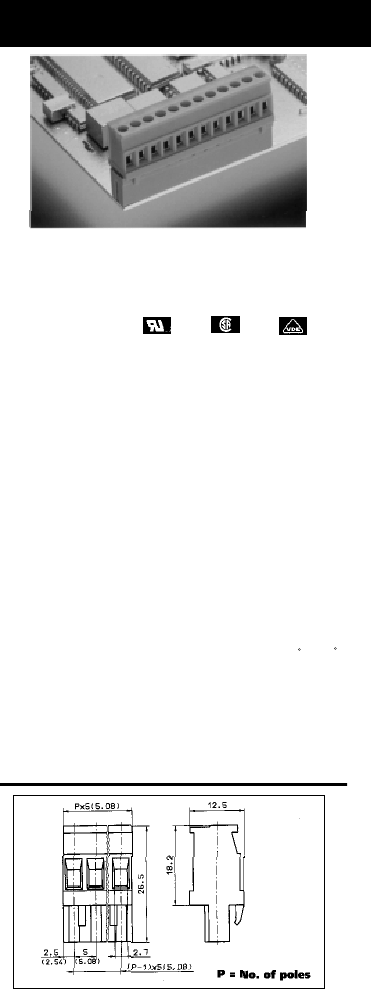

ED1100/X (5.0 mm)
EDZ1100/X (5.08 mm)
2-20 (16) poles, Spacing 5.0 mm or 5.08 mm
insert required no. of poles
x
How to order see page 5
Ratings:
Rated Voltage
300 V
300 V
Rated Current
15A
12 A
Wire Size
AWG 22-10 AWG 22-10
Rating Impulse Voltage/Dirt Level
Rated Torque/ScrewSize
Max. Rated Cross Section
Single Wire (solid)
Stranded Wire (flexible)
Stranded wire with Ferrules
Dimensions
Spacing
Stripped Length
Materials
Insulating Material
Flammability Class
Temperature Range
Terminal Block
Contact
Color
Green
250 V
12 A (T60)
2.5 mm
2
4 kV/3
0.5 Nm/M3
2.5 mm
2
2.5 mm
2
2.5 mm
2
5.0 mm (5.08 mm)
7.0 mm
PA
UL94 V-0
-30 C/+105 C
CuZn
CuSn
