280430-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 280430-1

280430-1: Descriptionconn tab hsg .250 8pos red; CategoryThe connector; File Size192KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

280430-1 Overview

conn tab hsg .250 8pos red

280430-1 Parametric

Parameter Name	Attribute value
Datasheets
280430
3D Model
280430-1.pdf
Standard Package	800
Category	Connectors, Interconnects
Family	Terminals - Housings, Boots
Style	Housing
Terminal Type	Quick Connect, Disconnec
Gende	Male, Tab
Terminal Size	0.250" (6.35mm)
Number of Positions	8
Stacking Directi	Top to Bottom and Side to Side
For Use With/Related Products	0.250" (6.35mm) Quick Connects
Mounting Type	Panel Mou
Col	Red
Material	Nyl
Note	Contacts Not Provided
Associated Produc	A118151TR-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA118150TR-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA118121TR-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA118120TR-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA118151CT-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA118150CT-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA118121CT-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA118120CT-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA116249CT-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA116205CT-ND - CONN QC TAB 11-14AWG 0.250 CRIMPA111657CT-ND - CONN QC TAB 13.5-17AWG 0.250A111328CT-ND - CONN QC TAB 18-22AWG 0.250 CRIMPA111137CT-ND - CONN QC TAB 14-18AWG 0.250 CRIMPA111031CT-ND - CONN QC TAB 14-20AWG 0.250 CRIMPA107147CT-ND - CONN QC TAB 13-17AWG 0.250 CRIMPA107146CT-ND - CONN QC TAB 13-17AWG 0.250 CRIMPA107123CT-ND - CONN QC TAB 14-18AWG 0.250 CRIMPA107120CT-ND - CONN QC TAB 17-28AWG 0.250 CRIMPA107115CT-ND - CONN QC TAB 10-11AWG 0.250 CRIMPA107091CT-ND - CONN QC TAB 14-18AWG 0.250 CRIMPA107075CT-ND - CONN QC TAB 17-20AWG 0.250 CRIMPA107074CT-ND - CONN QC TAB 17-20AWG 0.250 CRIMPA107073CT-ND - CONN QC TAB 18-22AWG 0.250 CRIMPA107070CT-ND - CONN QC TAB 18-22AWG 0.250 CRIMPA107069CT-ND - CONN QC TAB 14-18AWG 0.250 CRIMPA107068CT-ND - CONN QC TAB 14-18AWG 0.250 CRIMPA105455CT-ND - CONN QC TAB 10-11.5AWG 0.250A105206CT-ND - CONN QC TAB 0.250 CRIMPA104093CT-ND - CONN QC TAB 18-22AWG 0.250 CRIMP962825-8-ND - CONN QC TAB 20-24AWG 0.250 CRIMP962825-4-ND - CONN QC TAB 20-24AWG 0.250 CRIMP962825-2-ND - CONN QC TAB 20-24AWG 0.250 CRIMP928962-7-ND - CONN QC

Preview

Download Datasheet

View All

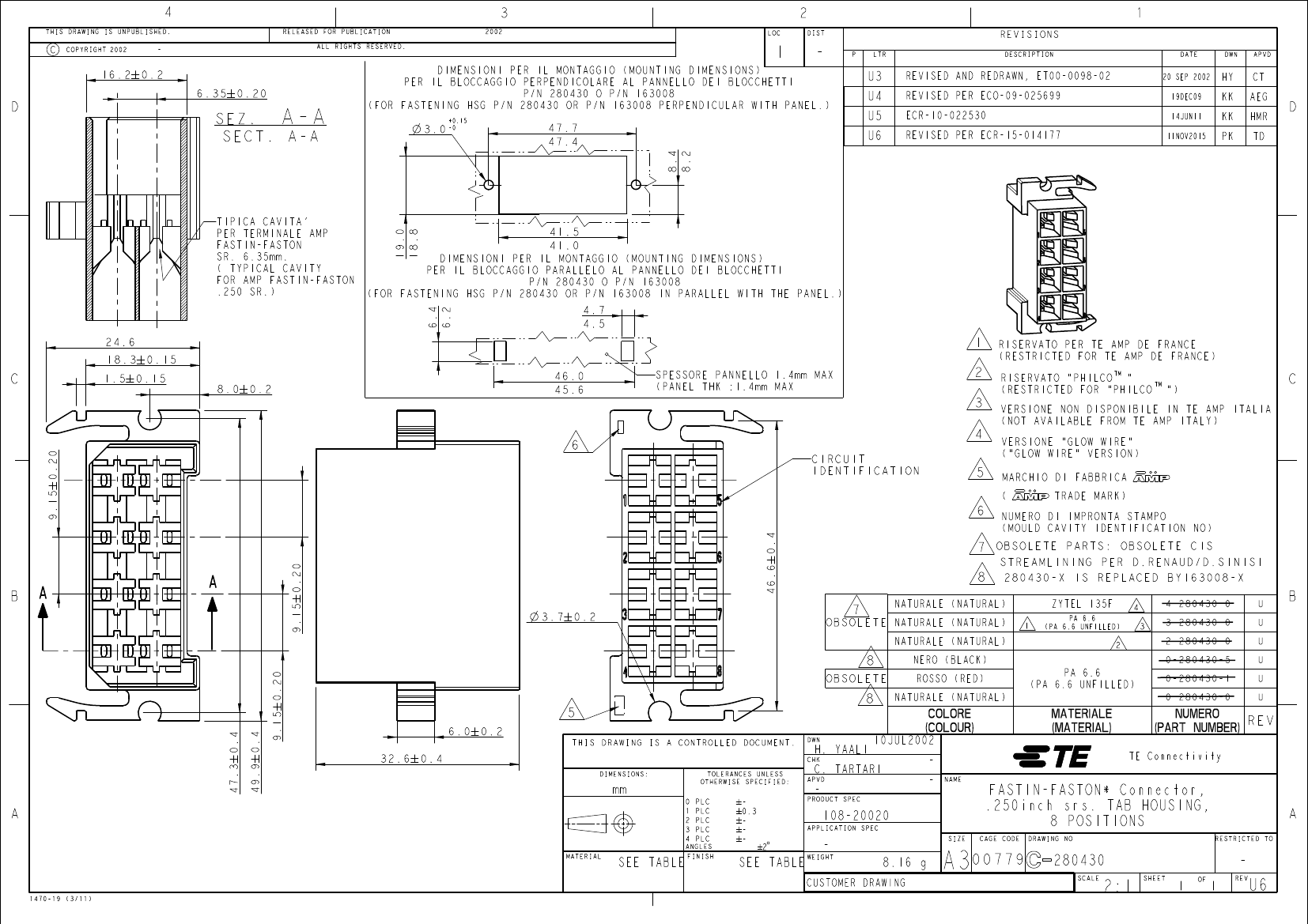

THIS DRAWING IS UNPUBLISHED.
