8259000000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8259000000

8259000000: Descriptioninterface cbl idc male 45mm 60pl; CategoryThe connector; File Size75KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

8259000000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8259000000	-	-	View	Buy Now

8259000000 Overview

interface cbl idc male 45mm 60pl

8259000000 Parametric

Parameter Name	Attribute value
Datasheets
8259000000
Standard Package	1
Category	Connectors, Interconnects
Family	Terminal Blocks - Interface Modules
Process Side Connecti	Terminal Blocks - Screw Connecti
Control Side Connecti	Rectangular, Male
Control Side Cable Retaine	Latches
Positions / Poles	60
Features	-
Voltage - Rated	60VAC, 75VDC
Current Rating (Per Contact)	1A
Operating Temperature	0°C ~ 55°C
Length	7.09" (180.00mm)
Width	1.77" (45.00mm)
Wire Gauge	-
Associated Produc	38340-ND - DIN RAIL 35MMX7.5MM UNSLOT 2M49800-ND - DIN RAIL 35MMX7.5MM UNSLOT 2M0122800000-ND - DIN RAIL 32X15MM UNSLOT STEEL 2M0199360000-ND - BRACKET END TS32 FOR SAK16 PA BG0383530000-ND - ENDPLATE EW 35 VO GREY281-2903-ND - ENDPLATE EW 35 FOR TS 35 PA BG
Other Names	RIIDC60GSE2H/62

Preview

Download Datasheet

View All

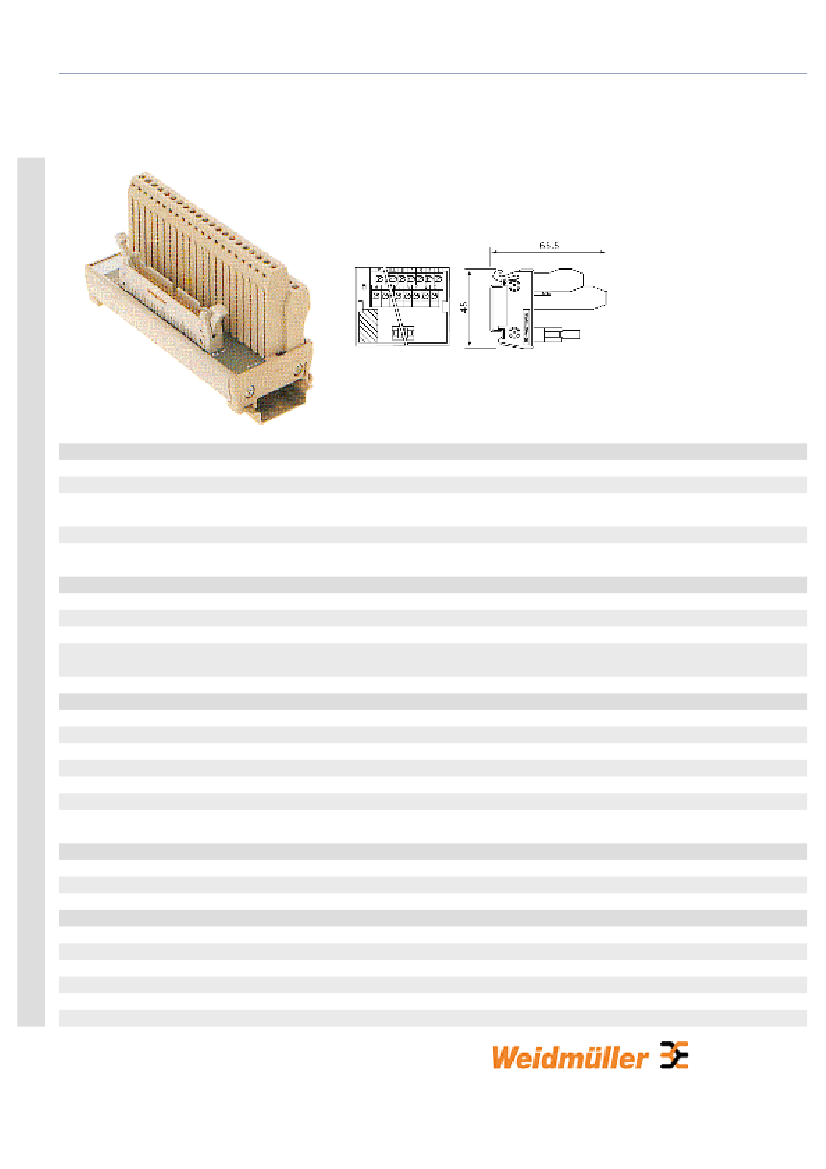

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 603-1 | RSF 45 mm screw

connection / IEC 603-1

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Connection data

Connection on control side

Connection on process side

Contact assembly

Implementation of connection level / plug

connector

Ratings

Ambient temperature (operational)

Number of signals

Rated control voltage

Rated current per connection

Storage temperature

Test torque

Test voltage (~eff)

Insulation coordination (EN 50 178)

Overvoltage category

Pollution severity

Connection cross-section

Flexible, max. (H07V-U)

Flexible, max. AEHK

Flexible, min. (AEHK)

Flexible, min. (H07V-U)

Solid, max. (H07V-U)

Solid, min. (H07V-U)

8259000000

RS F60 LPK 2H/62

Interface unit, Plug-in connector, acc. to IEC

603-1/ DIN 41651, Number of signals: 60

4008190444129

1 pc(s).

Plug-in connector, acc. to IEC 603-1/ DIN 41651

PCB terminal LPK 2 H

60-pole

1:1

0 °C...+55 °C

60 V AC/ 75 V DC

-40 °C...+70 °C

0.4 Nm

1 kV

III

1.5 mm²

0.5 mm²

2.5 mm²

0.5 mm²

-1-
