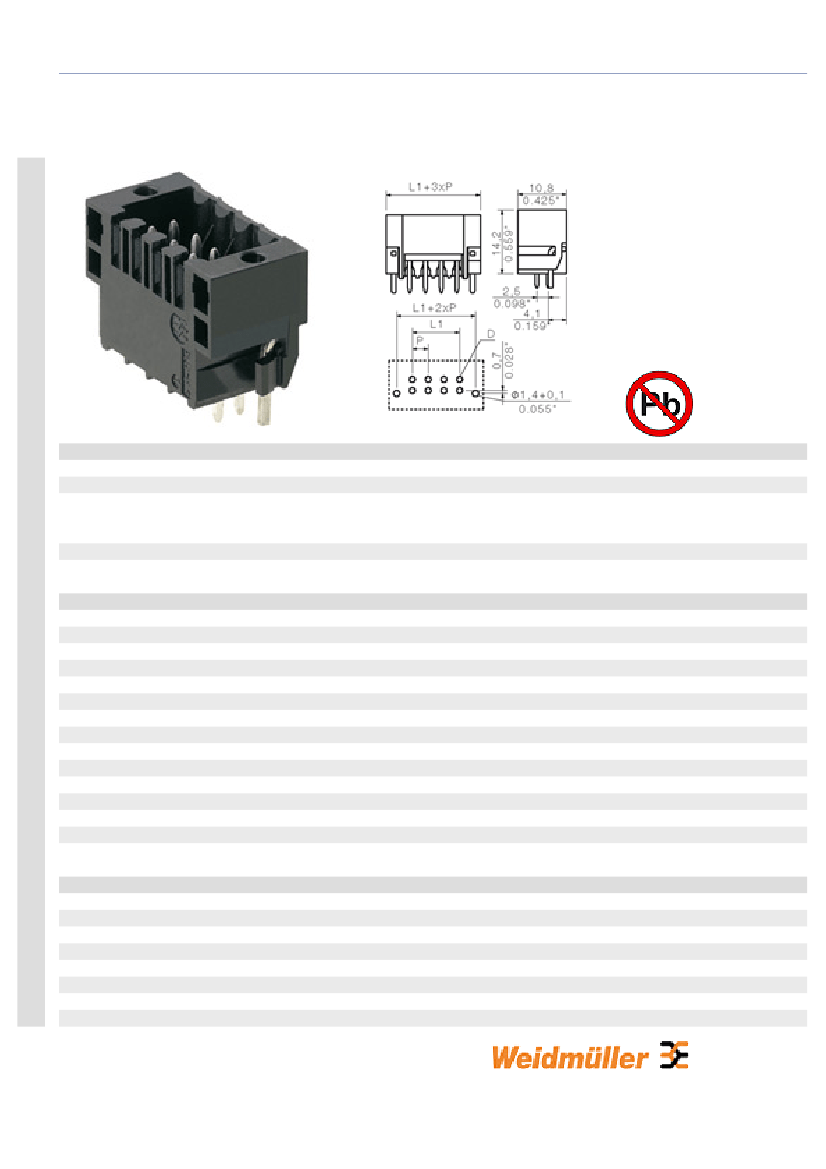

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Plug
connectors, THR solder connection | S2L-SMT 3.5/180 | S2L-SMT 3.5/180LF Box
Material data
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
-25 °C
100
-25 °C
55 °C
93 %
10 A
10 A
9A
8.5 A
50 V
2.5 kV
125 V
1.5 kV
160 V
1.5 kV
3 x 1s with 77 A
50 V
5A
150 V
10 A
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
S2L-SMT.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) 2-row | Plug
connectors, THR solder connection | S2L-SMT 3.5/180 | S2L-SMT 3.5/180LF Box
Similar products
Order No.
1001310000
1795200000
1795210000
1795220000
1795230000
1795240000
1795250000
1795260000
1795270000
1795280000
1795290000
1795300000
1795310000
1795320000
1795330000
1795350000
Part designation
S2L-SMT3.5/04/180LF3.5SN
SW
S2L-SMT3.5/6/180LF3.5SN
S2L-SMT3.5/8/180LF3.5SN
S2L-SMT3.5/10/180LF3.5SN
S2L-SMT3.5/12/180LF3.5SN
S2L-SMT3.5/14/180LF3.5SN
S2L-SMT3.5/16/180LF3.5SN
S2L-SMT3.5/18/180LF3.5SN
S2L-SMT3.5/20/180LF3.5SN
S2L-SMT3.5/22/180LF3.5SN
S2L-SMT3.5/24/180LF3.5SN
S2L-SMT3.5/26/180LF3.5SN
S2L-SMT3.5/28/180LF3.5SN
S2L-SMT3.5/30/180LF3.5SN
S2L-SMT3.5/32/180LF3.5SN
S2L-SMT3.5/36/180LF3.5SN
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 26, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 28, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 30, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 32, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 36, 180°, Box
-3-
