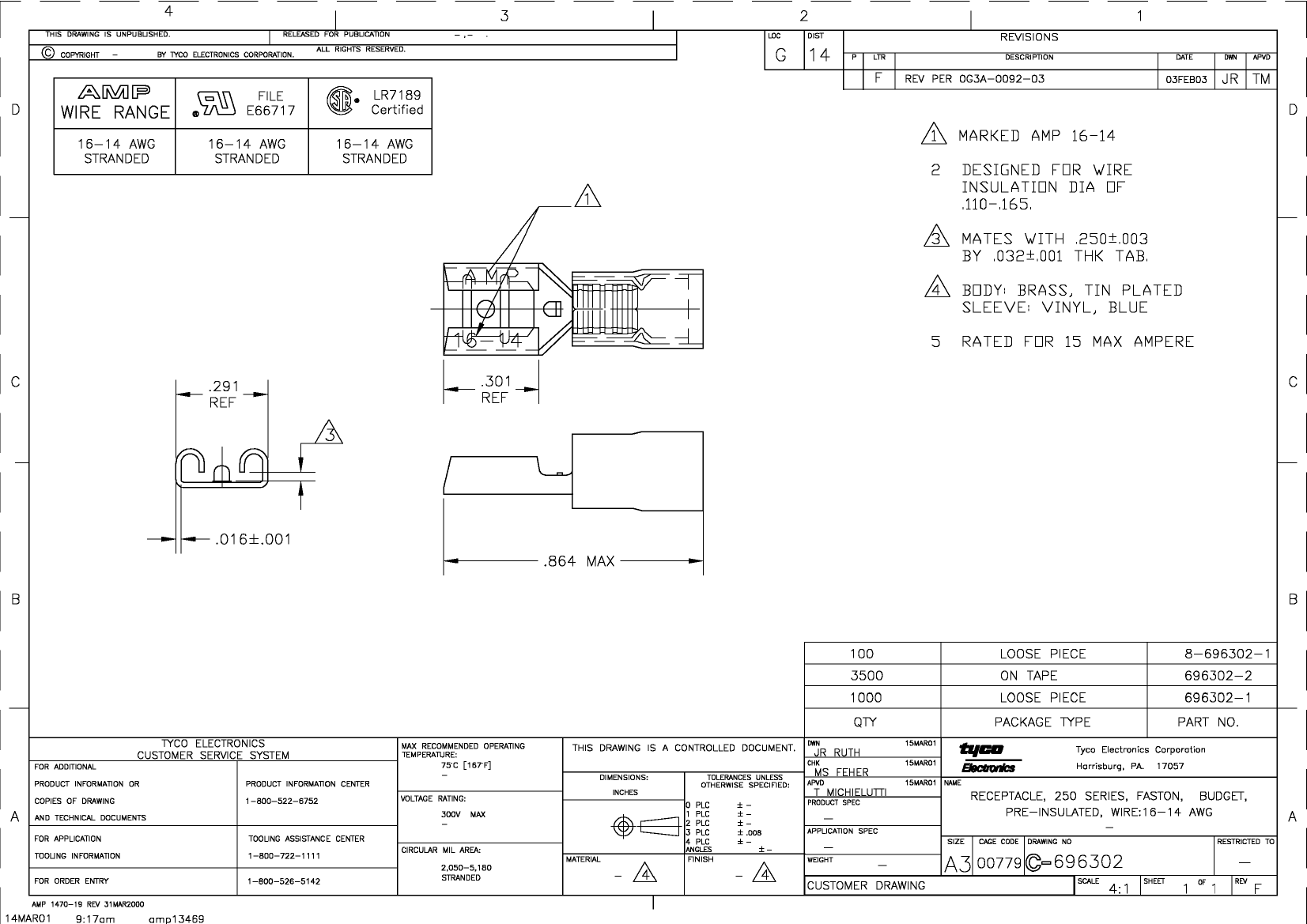

PDF
Preview

8-696302-1

Description
conn QC rcpt 14-16awg 0.250
CategoryThe connector
File Size30KB，1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

8-696302-1 Online Shopping

Suppliers Part Number Price MOQ In stock
8-696302-1 - - View Buy Now

8-696302-1 Overview

conn QC rcpt 14-16awg 0.250

8-696302-1 Parametric

Parameter NameAttribute value
Datasheets
696302
RoHS Informati
8-696302-1 Statement of Compliance
RoHS 2 Stateme
Standard Package1,000
CategoryConnectors, Interconnects
FamilyTerminals - Quick Connects, Quick Disconnect Connectors
PackagingBulk
Terminal TypeStandard
GendeFemale
Tab Width0.250" (6.35mm)
Tab Thickness0.032" (0.81mm)
Tab Length0.301" (7.65mm)
Length - Overall0.864" (21.94mm)
TerminatiCrim
Wire Gauge14-16 AWG
InsulatiNon-Mating End Insulated
Mounting TypeFree Hanging (In-Line)
Features-
ColBlue
Contact MaterialBrass
Contact FinishTi
Insulation Diamete0.110" ~ 0.165" (2.79mm ~ 4.19mm)
For Use WithA108211-ND - 250FASTONRECPHSG NATURAL 3CIRA108190-ND - 250FASTONHSG6/66NATA108189-ND - 250FASTONHSG6/66NATA107650-ND - HSG RECPT FASTON INFINITE SWCA107649-ND - HSG RECPT FASTON INFINITE SWA5-154509-4-ND - CONN RCPT HOUSING 1POS .250A112319-ND - CONN RCPT HSG 2POS .250 BLUEA112318-ND - CONN RCPT HSG 2POS .250 REDA112317-ND - CONN RCPT HSG 2POS .250 NATURALA113837-ND - CONN RCPT HSG 2POS .250 BROWNA113836-ND - CONN RCPT HSG 2POS .250 YELLOWA113835-ND - CONN RCPT HSG 2POS .250 BLUEA113834-ND - CONN RCPT HSG 2POS .250 GREENA113833-ND - CONN RCPT HSG 2POS .250 BLACK925068-ND - CONN RCPT HSG .250 1POS NATRL8-735075-0-ND - CONN RCPT HSG .250 1POS CLEAR2-735075-6-ND - CONN RCPT HSG .250 1POS NATRL1-735075-5-ND - CONN RCPT HSG .250 1POS BLACKA112685-ND - CONN RCPT HSG .250 1POS NATRL735075-5-ND - CONN RCPT HSG .250 1POS BLACK735075-4-ND - CONN RCPT HSG .250 1POS YELLOW735075-1-ND - CONN RCPT HSG .250 1POS REDA113881-ND - CONN RCPT HSG .250 2POS BLACKA113880-ND - CONN RCPT HSG .250 2POS NATRL521664-1-ND - CONN RCPT HSG .250 2POS NATRL521588-1-ND - CONN RCPT HSG .250 2POS NATRLA113878-ND - CONN RCPT HSG .187/.250 3POS521229-2-ND - CONN RCPT HSG .250 2POS REDA113869-ND - CONN RCPT HSG .250 2POS NATRLA113865-ND - CONN RCPT HSG .187/.250 2POS BLKA113848-ND - CONN RCPT HSG .250 3POS BLACKA112243-ND - CONN RCPT HSG .250 1POS NATRLA112244-ND

Preview

Download Datasheet

8-696302-1 Related Products

8-696302-1 696302-2
Description conn QC rcpt 14-16awg 0.250 conn QC rcpt 14-16awg 0.250
Standard Package 1,000 10,500
Category Connectors, Interconnects Connectors, Interconnects
Family Terminals - Quick Connects, Quick Disconnect Connectors Terminals - Quick Connects, Quick Disconnect Connectors
Packaging Bulk Tape & Reel (TR)
Terminal Type Standard Standard
Gende Female Female
Tab Width 0.250" (6.35mm) 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm) 0.032" (0.81mm)
Tab Length 0.301" (7.65mm) 0.301" (7.65mm)
Length - Overall 0.864" (21.94mm) 0.864" (21.94mm)
Terminati Crim Crim
Wire Gauge 14-16 AWG 14-16 AWG
Insulati Non-Mating End Insulated Non-Mating End Insulated
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line)
Col Blue Blue
Contact Material Brass Brass
Contact Finish Ti Ti
Insulation Diamete 0.110" ~ 0.165" (2.79mm ~ 4.19mm) 0.110" ~ 0.165" (2.79mm ~ 4.19mm)
For Use With A108211-ND - 250FASTONRECPHSG NATURAL 3CIRA108190-ND - 250FASTONHSG6/66NATA108189-ND - 250FASTONHSG6/66NATA107650-ND - HSG RECPT FASTON INFINITE SWCA107649-ND - HSG RECPT FASTON INFINITE SWA5-154509-4-ND - CONN RCPT HOUSING 1POS .250A112319-ND - CONN RCPT HSG 2POS .250 BLUEA112318-ND - CONN RCPT HSG 2POS .250 REDA112317-ND - CONN RCPT HSG 2POS .250 NATURALA113837-ND - CONN RCPT HSG 2POS .250 BROWNA113836-ND - CONN RCPT HSG 2POS .250 YELLOWA113835-ND - CONN RCPT HSG 2POS .250 BLUEA113834-ND - CONN RCPT HSG 2POS .250 GREENA113833-ND - CONN RCPT HSG 2POS .250 BLACK925068-ND - CONN RCPT HSG .250 1POS NATRL8-735075-0-ND - CONN RCPT HSG .250 1POS CLEAR2-735075-6-ND - CONN RCPT HSG .250 1POS NATRL1-735075-5-ND - CONN RCPT HSG .250 1POS BLACKA112685-ND - CONN RCPT HSG .250 1POS NATRL735075-5-ND - CONN RCPT HSG .250 1POS BLACK735075-4-ND - CONN RCPT HSG .250 1POS YELLOW735075-1-ND - CONN RCPT HSG .250 1POS REDA113881-ND - CONN RCPT HSG .250 2POS BLACKA113880-ND - CONN RCPT HSG .250 2POS NATRL521664-1-ND - CONN RCPT HSG .250 2POS NATRL521588-1-ND - CONN RCPT HSG .250 2POS NATRLA113878-ND - CONN RCPT HSG .187/.250 3POS521229-2-ND - CONN RCPT HSG .250 2POS REDA113869-ND - CONN RCPT HSG .250 2POS NATRLA113865-ND - CONN RCPT HSG .187/.250 2POS BLKA113848-ND - CONN RCPT HSG .250 3POS BLACKA112243-ND - CONN RCPT HSG .250 1POS NATRLA112244-ND A108211-ND - 250FASTONRECPHSG NATURAL 3CIRA108190-ND - 250FASTONHSG6/66NATA108189-ND - 250FASTONHSG6/66NATA107650-ND - HSG RECPT FASTON INFINITE SWCA107649-ND - HSG RECPT FASTON INFINITE SWA5-154509-4-ND - CONN RCPT HOUSING 1POS .250A112319-ND - CONN RCPT HSG 2POS .250 BLUEA112318-ND - CONN RCPT HSG 2POS .250 REDA112317-ND - CONN RCPT HSG 2POS .250 NATURALA113837-ND - CONN RCPT HSG 2POS .250 BROWNA113836-ND - CONN RCPT HSG 2POS .250 YELLOWA113835-ND - CONN RCPT HSG 2POS .250 BLUEA113834-ND - CONN RCPT HSG 2POS .250 GREENA113833-ND - CONN RCPT HSG 2POS .250 BLACK925068-ND - CONN RCPT HSG .250 1POS NATRL8-735075-0-ND - CONN RCPT HSG .250 1POS CLEAR2-735075-6-ND - CONN RCPT HSG .250 1POS NATRL1-735075-5-ND - CONN RCPT HSG .250 1POS BLACKA112685-ND - CONN RCPT HSG .250 1POS NATRL735075-5-ND - CONN RCPT HSG .250 1POS BLACK735075-4-ND - CONN RCPT HSG .250 1POS YELLOW735075-1-ND - CONN RCPT HSG .250 1POS REDA113881-ND - CONN RCPT HSG .250 2POS BLACKA113880-ND - CONN RCPT HSG .250 2POS NATRL521664-1-ND - CONN RCPT HSG .250 2POS NATRL521588-1-ND - CONN RCPT HSG .250 2POS NATRLA113878-ND - CONN RCPT HSG .187/.250 3POS521229-2-ND - CONN RCPT HSG .250 2POS REDA113869-ND - CONN RCPT HSG .250 2POS NATRLA113865-ND - CONN RCPT HSG .187/.250 2POS BLKA113848-ND - CONN RCPT HSG .250 3POS BLACKA112243-ND - CONN RCPT HSG .250 1POS NATRL
