1796750000

Description
term block hdr 14pos vert 5mm
CategoryThe connector    The connector
File Size81KB,4 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1796750000 Overview

term block hdr 14pos vert 5mm

1796750000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompli
Factory Lead Time9 weeks
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberSL-SMT5.00/180G
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch5 mm
Termination typeSOLDER
Total number of contacts14
UL Flammability Code94V-0
Base Number Matches1

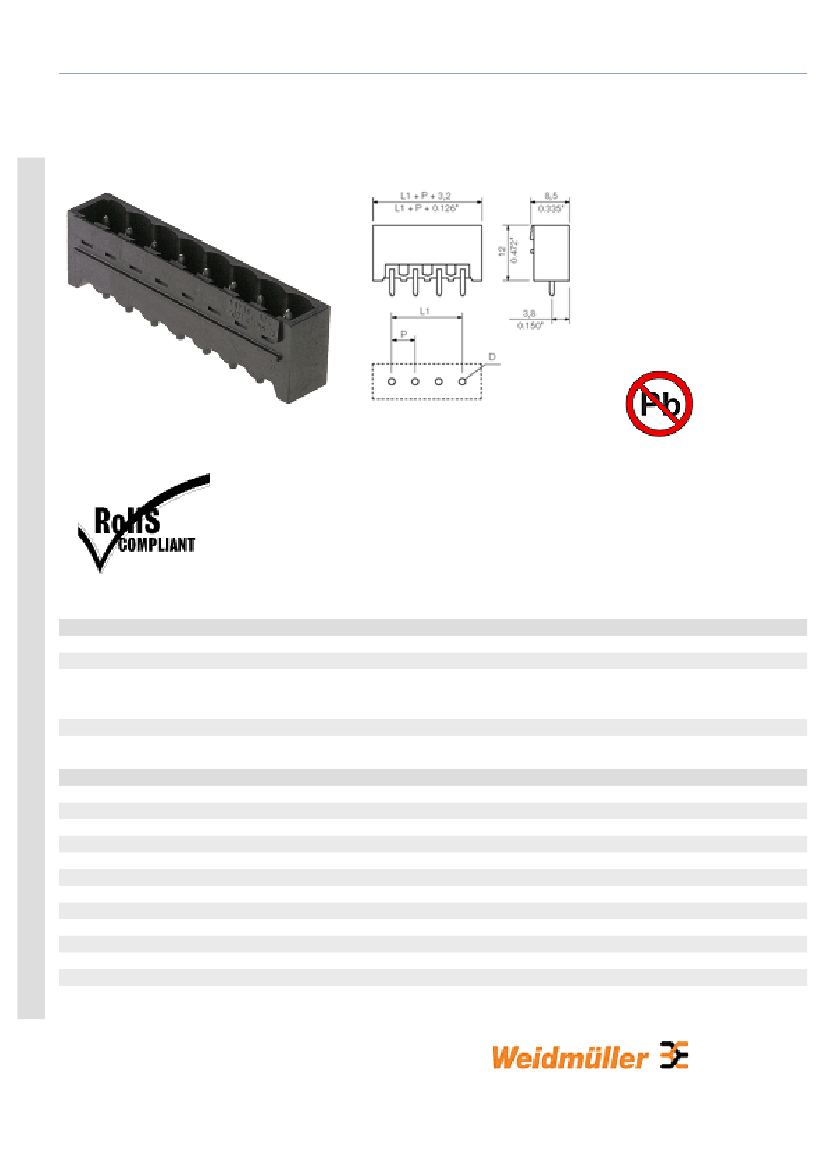

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/180G | SL-SMT 5.00/180G Box
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
1796750000
SL-SMT5.00/14/180G 1.5SN
PCB plug-in connector, Male connectors, Reflow
solder connection, Pitch: 5.00 mm, No. of poles:
14, 180°, Box
4032248237371
50 pc(s).
Reflow solder connection
180°
5 mm
0.197 inch
14
1.5 mm
Yes
1
1
+ 0.1 mm
65 mm
2.559 inch
1 MΩ
-1-
