8019920000: Descriptioninterface cbl dsub female W/scrw; CategoryThe connector The connector; File Size86KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8019920000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8019920000	-	-	View	Buy Now

8019920000 Overview

interface cbl dsub female W/scrw

8019920000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compli
Factory Lead Time	10 weeks
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	5/D
Termination type	SOLDER
Total number of contacts	50

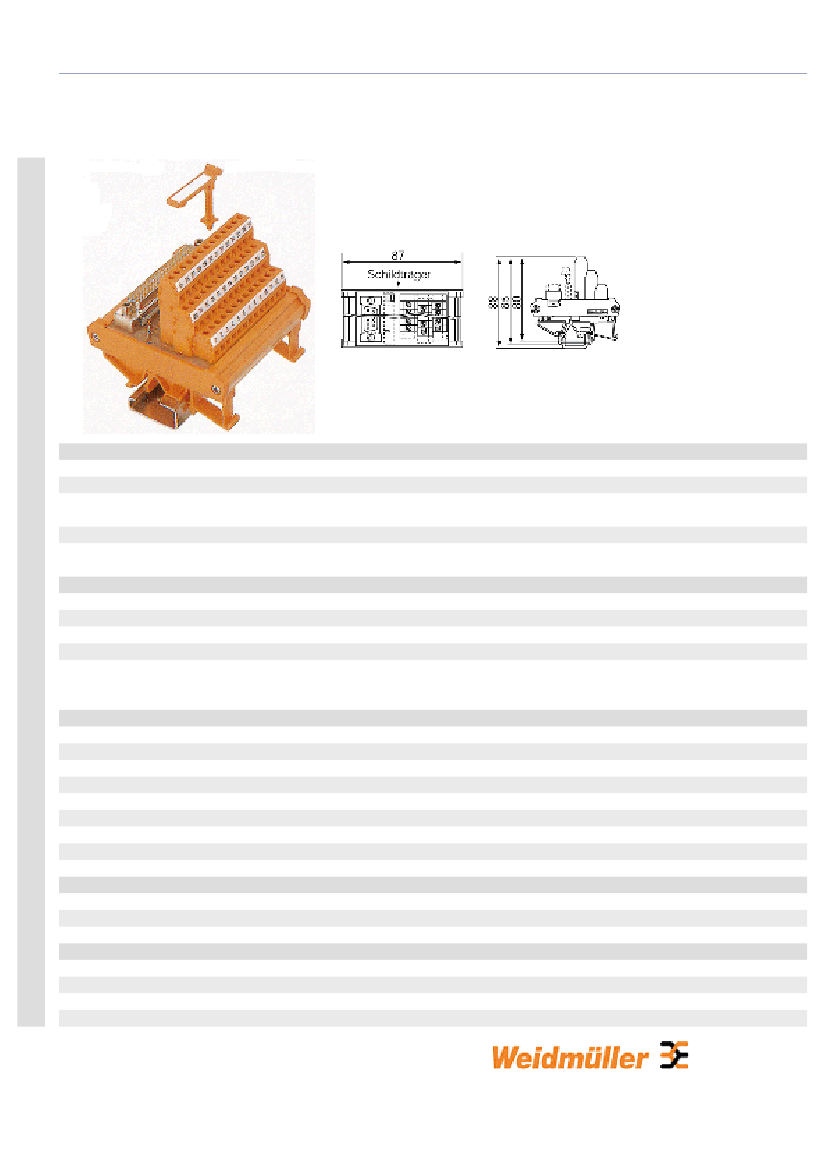

Preview

Download Datasheet

View All

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 807-2 | RSSD screw connection/

SUB-D

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Connection data

Connection on control side

Connection on process side

Contact assembly

Design

Implementation of connection level / plug

connector

Ratings

Ambient temperature (operational)

Number of signals

Rated control voltage

Rated cross-section

Rated current per connection

Storage temperature

Test torque

Test voltage (~eff)

Insulation coordination (EN 50 178)

Overvoltage category

Pollution severity

Connection cross-section

Flexible, max. (H07V-U)

Flexible, max. AEHK

Flexible, min. (AEHK)

Flexible, min. (H07V-U)

8019920000

RS SD50B LP3R

Interface unit, D-SUB, acc. to IEC 807-2, Number

of signals: 50

4008190108922

1 pc(s).

D-SUB, acc. to IEC 807-2

PCB terminal LP3R

50-pole

Socket connector

1:1

0 °C...+55 °C

125 V AC/ 150 V DC

2.5 mm²

1.5 A

-40 °C...+70 °C

0.5 Nm

0.6 kV

III

2.5 mm²

0.5 mm²

-1-
