Part Number

Search

1776120-2

Description
term block top entry 2pos vert
CategoryThe connector
File Size73KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance

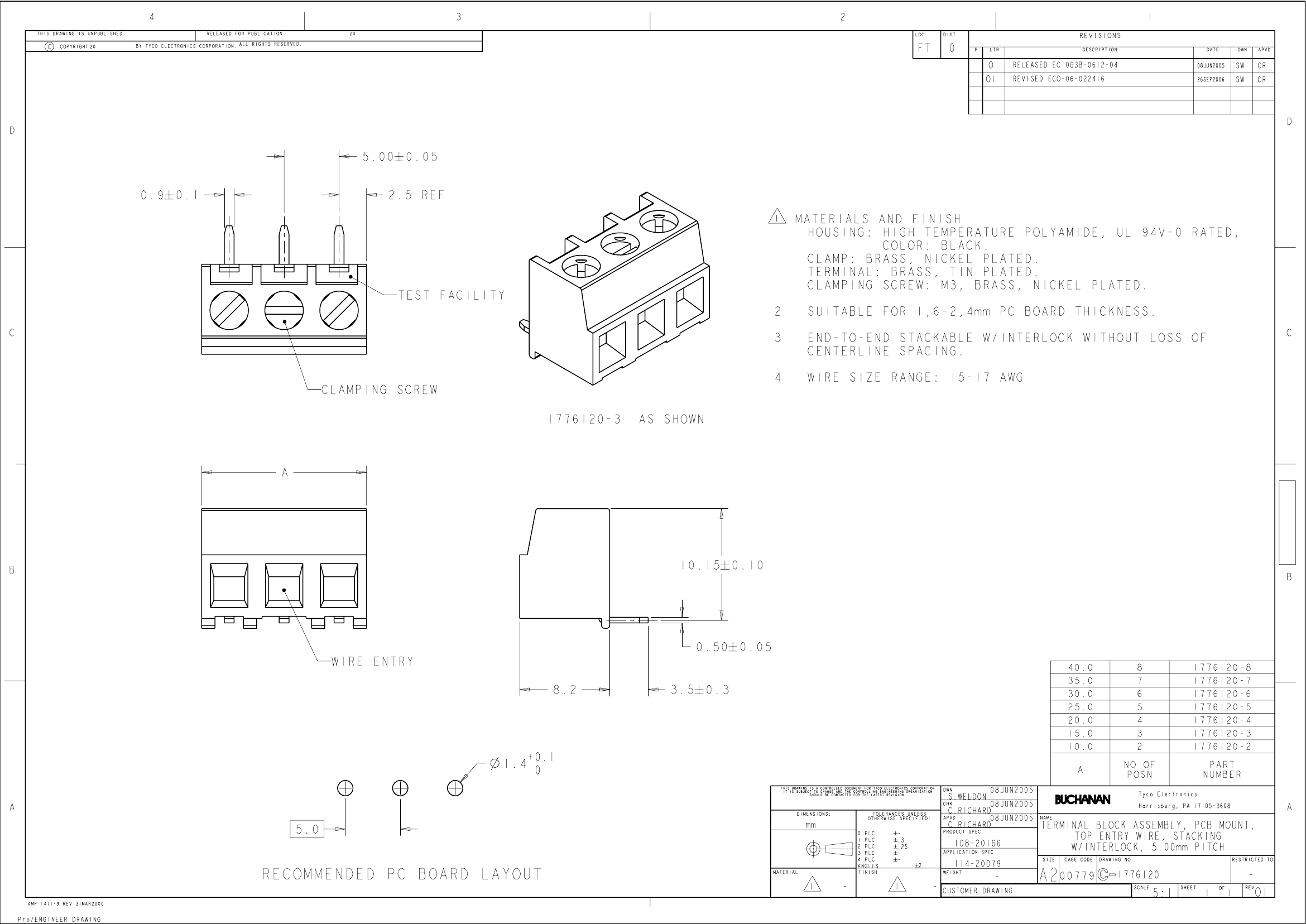

Download Datasheet Parametric Compare View All

1776120-2 Overview

term block top entry 2pos vert

1776120-2 Parametric

Parameter NameAttribute value
Datasheets
1776120
Standard Package1,200
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Wire to Board
PackagingBulk
Number of Levels1
Positions Per Level2
Pitch0.197" (5.00mm)
Mating OrientatiVertical with Board
Curre13.5A
Voltage300V
Wire Gauge15-17 AWG
Mounting TypeThrough Hole
Wire TerminatiScrew - Rising Cage Clam
Features-
ColBlack
Operating Temperature-
Housing MaterialPolyamide (PA), Nyl
Contact Material - PlatingBrass - Tin Plated
Clamp Material - PlatingBrass - Nickel Plated
Screw Material - PlatingBrass - Nickel Plated
Torque - Screw0.68 Nm (6 Lb-In)
Screw ThreadM3

1776120-2 Related Products

1776120-2 1776120-3
Description term block top entry 2pos vert term block top entry 3pos vert
Standard Package 1,200 800
Category Connectors, Interconnects Connectors, Interconnects
Family Terminal Blocks - Wire to Board Terminal Blocks - Wire to Board
Packaging Bulk Bulk
Number of Levels 1 1
Positions Per Level 2 3
Pitch 0.197" (5.00mm) 0.197" (5.00mm)
Mating Orientati Vertical with Board Vertical with Board
Curre 13.5A 13.5A
Voltage 300V 300V
Wire Gauge 15-17 AWG 15-17 AWG
Mounting Type Through Hole Through Hole
Wire Terminati Screw - Rising Cage Clam Screw - Rising Cage Clam
Col Black Black
Housing Material Polyamide (PA), Nyl Polyamide (PA), Nyl
Contact Material - Plating Brass - Tin Plated Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated Brass - Nickel Plated
Torque - Screw 0.68 Nm (6 Lb-In) 0.68 Nm (6 Lb-In)
Screw Thread M3 M3
