Operating Temperature Range, -40°C to +105°C Standard

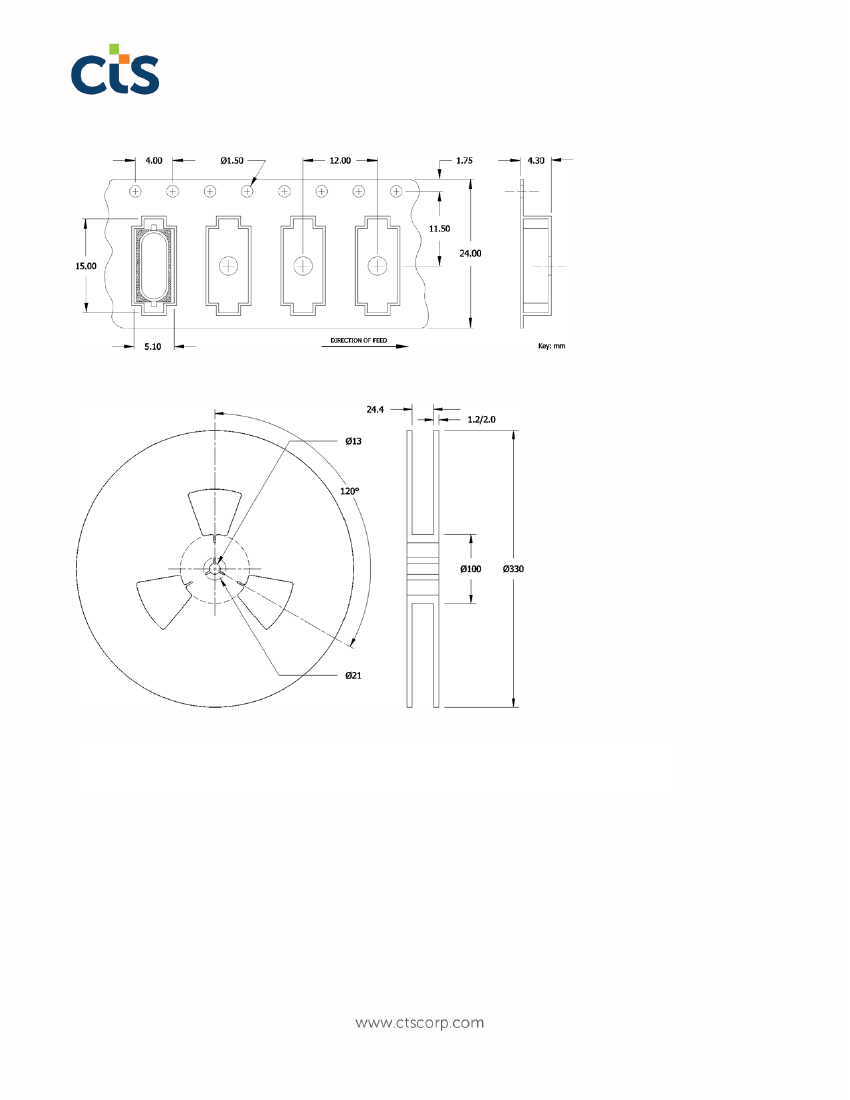

Tape and Reel Packaging, EIA-481
Internet of Things [IoT and IIot]
Automotive Electronics
Mobile Multimedia/Infotainment

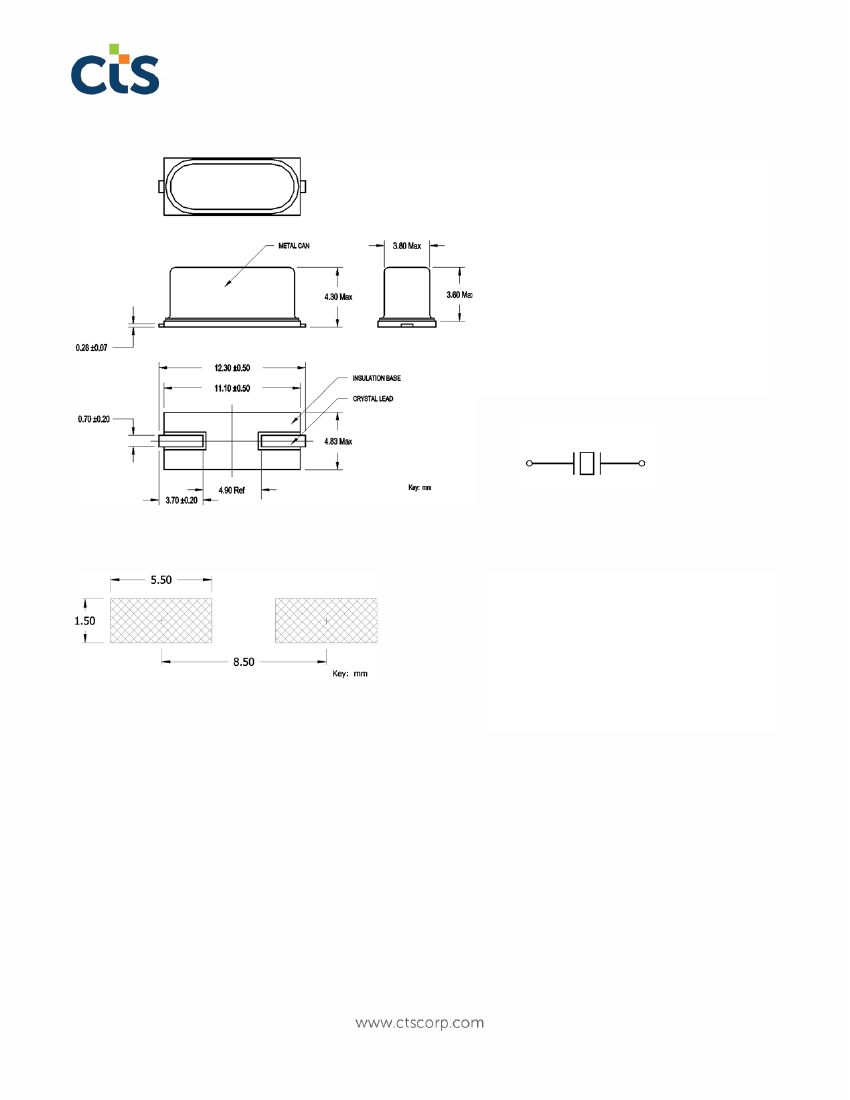

Part Dimensions:
11.1 × 4.83 × 4.3mm
•
587.84mg
Applications
Industrial Control Equipment
M2M Communications
FPGAs and Microcontrollers
Computer Peripherals
Test and Measurement
Commercial Military & Aerospace
Description
CTS Model HTA incorporates a high Q quartz resonator in a proven resistance weld metal package. HTA is ideal
for supporting a wide range of commercial, industrial and automotive applications requiring extended operating
temperature ranges.
Ordering Information
Model
HTA
Frequency Code
[MHz]
XXX
Mode of
Oscillation
F
Tolerance
@ +25°C
3
Temperature
Stability
5
Temperature
Range
G
Load
Capacitance
D
Product
Grade
A
Packaging
T
Code
Frequency
1
Product Frequency Code
Code
1
X
2
Y
3
Code
F
T
Mode
Fundamental
3rd Overtone
Tolerance
±10ppm
±15ppm
±20ppm
±25ppm
±30ppm
Code
X
2
Y
3
Stability
±15ppm
±20ppm
±25ppm
±30ppm
Code
5
6
7
Code Temp. Range
-40°C to +85°C
I
-40°C to +105°C
G
H -40°C to +125°C
2
M -55°C to +125°C
3
Packing
Code
Blank Standard
AEC-Q200
A
Packing
Code
Tape & Reel
T
Code Capacitance Code Capacitance
8pF
18pF
K
D
20pF
9pF
J
E
10pF
24pF
A
F
12pF
30pF
L
G
13pF
32pF
B
H
16pF
Series
C
S
Stability
±50ppm
±100ppm
±150ppm
Notes:
1] Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz.
2] Temperature Stability Codes 5, 6 & 7. Check factory availability when combining other Stability Codes with -40°C to +125°C temperature range.
3] Temperature Stability Code 7. Check factory availability when combining other Stability Codes with -55°C to +125°C temperature range.
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
