ELFA28250: Descriptionterm block hdr 28pos vert 5.08mm; CategoryThe connector; File Size348KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

ELFA28250 Overview

term block hdr 28pos vert 5.08mm

Parameter Name	Attribute value
Datasheets

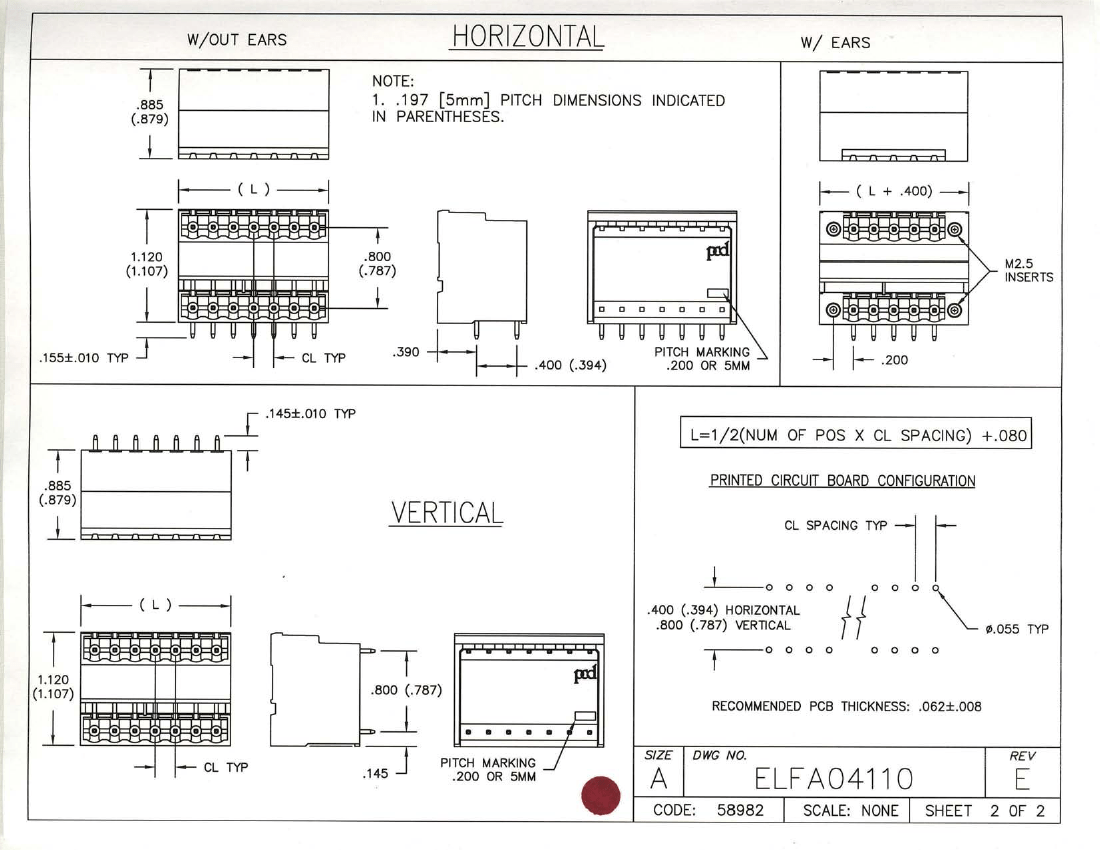

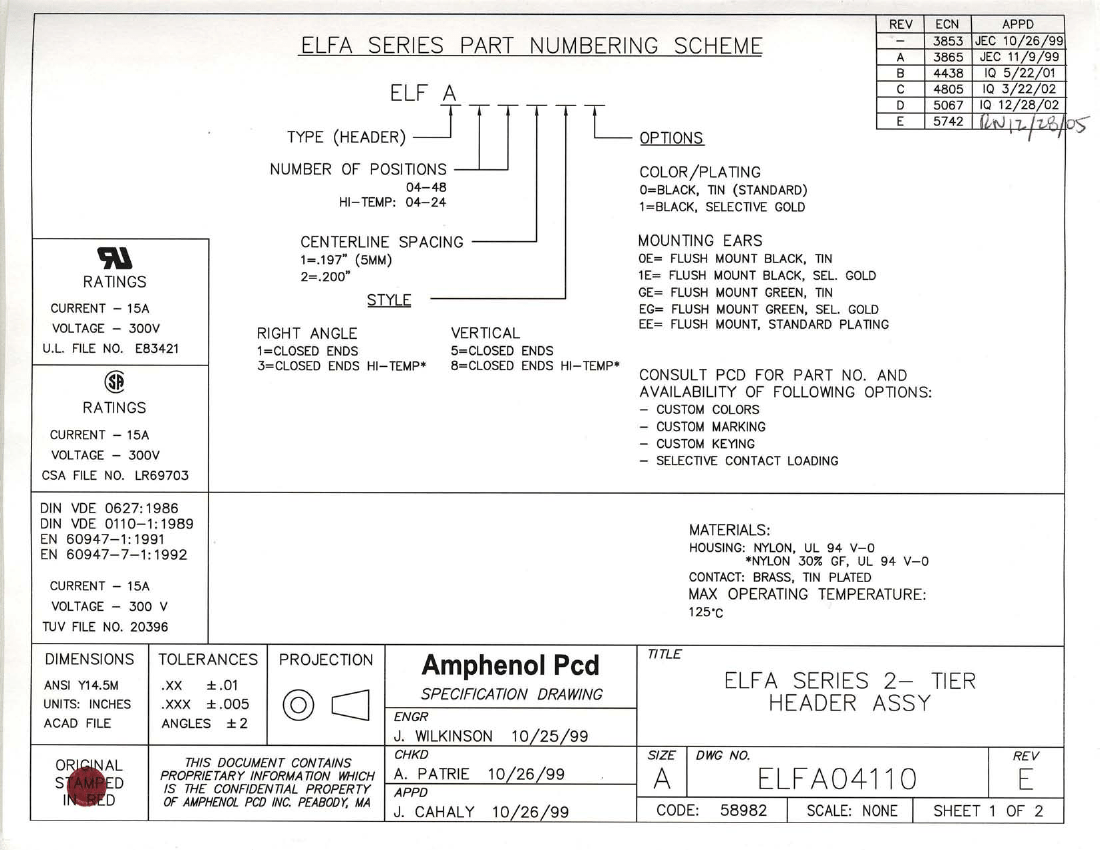

ELFA Series Part Numbering, Drawing
Standard Package	25
Category	Connectors, Interconnects
Family	Terminal Blocks - Headers, Plugs and Sockets
Packaging	Tray
Terminal Block Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	28
Positions Per Level	14
Pitch	0.200" (5.08mm)
Number of Levels	2
Header Orientati	Vertical
Plug Wire Entry	-
Terminati	Solde
Wire Gauge	-
Curre	15A
Voltage	300V
Mounting Type	Through Hole
Features	-
Col	Black
Mating Products	ELFT14260-ND - TERM BLOCK PLUG 14POS 5.08MMELFT14250-ND - TERM BLOCK PLUG 14POS 5.08MMELFP14210-ND - TERM BLOCK PLUG 14POS STR 5.08MMELFK14210-ND - TERM BLOCK PLUG 14POS 5.08MMELFF14240-ND - TERM BLOCK PLUG 14POS 5.08MMELFF14220-ND - TERM BLOCK PLUG 14POS 5.08MMELFB14280-ND - TERM BLOCK HDR 14POS VERT 5.08MMELFB14230-ND - TERM BLOCK HDR 14POS R/A 5.08MMELFF14230-ND - TERM BLOCK PLUG 14POS 5.08MMFXPT14200-ND - TERM BLOCK PLUG 28POS 5.08MM
Associated Produc	ELFLABEL2-ND - ELF MARKING LABEL 13-24ELFLABEL1-ND - ELF MARKING LABEL 1-12300800820 (ELFKEY100)-ND - ELF HEADER POLARIZING KEY
