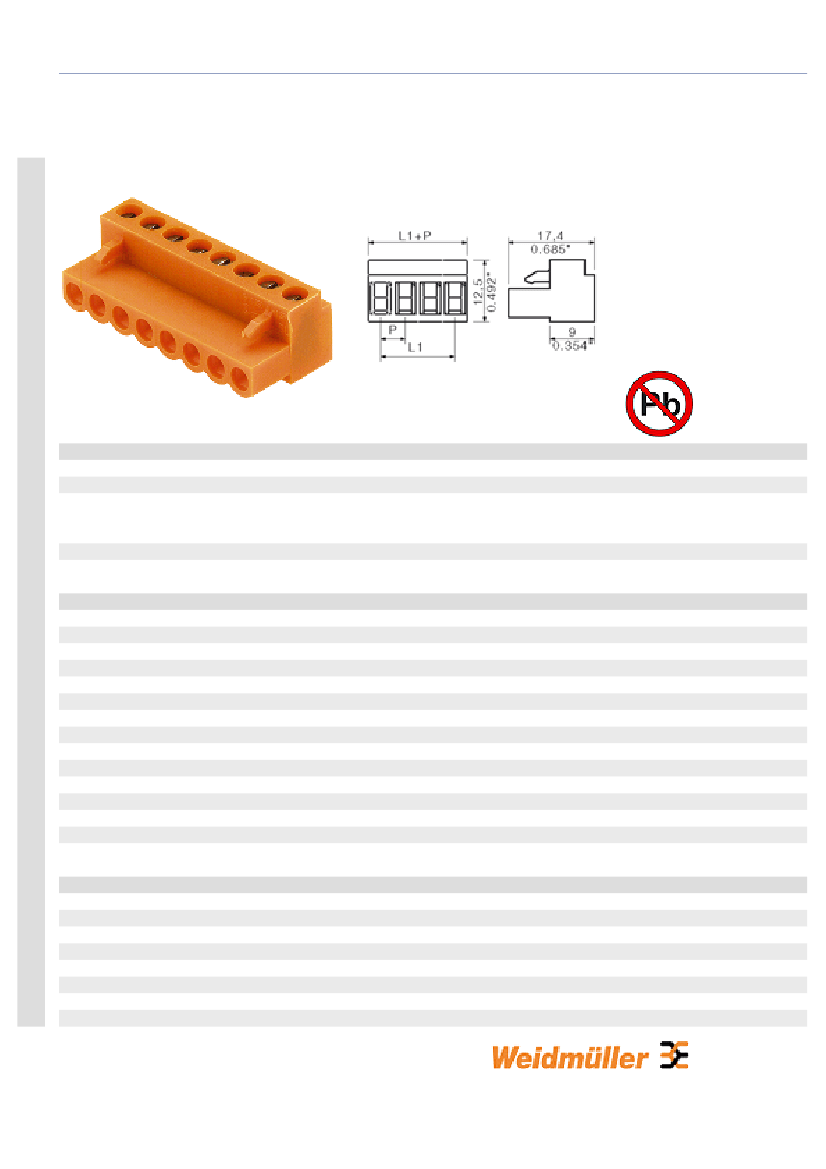

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.08
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1716590000
BL 5.08/14 SN SW
PCB plug-in connector, Female connectors, Leaf
spring connection, Clamping range, max.: 2.08
mm², Pitch: 5.08 mm, No. of poles: 14, 180°, Box
4008190376666
50 pc(s).
Leaf spring connection
180°
5.08 mm
0.2 inch
14
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
6 mm
66.04 mm
2.6 inch
IP 00
PA
black
Similar to RAL 9011
I
V-2
>= 200
CuSn
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.08
Material data
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
0.13 mm²
2.08 mm²
26
14
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1 mm²
2.4 mm x 1.5 mm;
14 A
12 A
12 A
10 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
300 V
10 A
26
14
300 V
10 A
26
14
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.08
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1716320000
1716470000
1723830000
1716330000
1716480000
1723840000
1716340000
1716490000
1723850000
Part designation
BL 5.08/2 SN OR
BL 5.08/2 SN SW
BL 5.08/2 SN GN
BL 5.08/3 SN OR
BL 5.08/3 SN SW
BL 5.08/3 SN GN
BL 5.08/4 SN OR
BL 5.08/4 SN SW
BL 5.08/4 SN GN
Version
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.08
1716350000
1716500000
1723860000
1716360000
1716510000
1723870000
1716370000
1716520000
1723880000
1716380000
1716530000
1723890000
1716390000
1716540000
1723900000
1716400000
1716550000
BL 5.08/5 SN OR
BL 5.08/5 SN SW
BL 5.08/5 SN GN
BL 5.08/6 SN OR
BL 5.08/6 SN SW
BL 5.08/6 SN GN
BL 5.08/7 SN OR
BL 5.08/7 SN SW
BL 5.08/7 SN GN
BL 5.08/8 SN OR
BL 5.08/8 SN SW
BL 5.08/8 SN GN
BL 5.08/9 SN OR
BL 5.08/9 SN SW
BL 5.08/9 SN GN
BL 5.08/10 SN OR
BL 5.08/10 SN SW
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, pressure clamp connection, pitch 5.00/5.08 | BL 5.00/5.08 | BL 5.08
1723910000
1716410000
1716560000
1716420000
1716570000
1723930000
1716430000
1716580000
1716440000
1723950000
1716450000
1716600000
1716460000
1716610000
1723970000
BL 5.08/10 SN GN
BL 5.08/11 SN OR
BL 5.08/11 SN SW
BL 5.08/12 SN OR
BL 5.08/12 SN SW
BL 5.08/12 SN GN
BL 5.08/13 SN OR
BL 5.08/13 SN SW
BL 5.08/14 SN OR
BL 5.08/14 SN GN
BL 5.08/15 SN OR
BL 5.08/15 SN SW
BL 5.08/16 SN OR
BL 5.08/16 SN SW
BL 5.08/16 SN GN
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB plug-in connector, Female connectors, Leaf spring connection,
Clamping range, max.: 2.08 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
