CERAMIC SMD ULTRA MINIATURE QUARTZ CRYSTAL
ABM10
FEATURES:
• 2.5 x 2.0 x 0.5mm ultra miniature package
• Suitable for RoHS reflow profile
• Tight stability available ±10ppm over -10 to +60ºC
• Seam sealed ceramic package assures high precision and reliability
Parameters
Frequency Range
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Equivalent series resistance (R1)
Shunt capacitance (C0)
Load capacita nce (CL)
Drive Level
Aging@25°C±3°C
Insulation Resistance
500
10
10
100
±5
-10
-40
Minimum
12.000
Fundamental
+60
+125
±20
±30
See table 1 below
7
ºC
ºC
ppm
ppm
Ω
pF
pF
µW
ppm
M
Ω
First year
@ 100Vdc ± 15V
Standard
(See options
if other than STD)
Moisture Sensitivity Level (MSL) – This product is Hermetically
Pb
RoHS/RoHS II Compliant
Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
2.5 x 2.0 x 0.5 mm
| | | | | | | | | | | | | |
|
APPLICATIONS:
• Blue-tooth, Wireless applications
• High density applications
• Computers, Modems, Microprocessors • PCMCIA
• Portable radios and MP3 players
• Communication, Test equipment
Maximum
55.000
Units
MH z
Notes
Fundamental
See options
See options
See options
STANDARD SPECIFICATIONS:
Typical
Table 1 – standard ESR
Frequency (MHz)
ESR(Ω) max.
12.000 – 15.999
250
16.000 – 19.999
150
20.000 – 29.999
100
30.000 – 55.000
70
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABM10 -
Frequency in MHz
Please specify the
frequency in MHz.
e.g. 16.000MHz
Load Capacitance
(pF)
Please specify CL
in pF or S for series
(8pF min.)
MHz -
-
-
-
-
Packaging
Blank: Bulk
T: 1000pcs/reel
T3: 3000pcs/reel
Custom ESR if other
than standard
R□
□: Specify
a value in
Ω
(e.g.: R40)
Freq. Tolerance
1: ± 10 ppm
7: ± 15 ppm
3: ± 25 ppm
4: ± 30 ppm
± 50 ppm
I50
A50
E50
C50
N50
D50
J50
K50
± 100 ppm
I100
A100
E100
C100
N100
D100
J100
K100
± 10 ppm ± 15 ppm ± 20 ppm ± 30 ppm
Operating Temp.
I10
I15
I20
I30
0°C ~ +50°C
A10
A15
A20
STD*
-10°C ~ +60°C
E10
E15
E20
E30
-20°C ~ +70°C
C10
C15
C20
C30
-30°C ~ +70°C
N10
N15
N20
N30
-30°C ~ +85°C
X
X
D20
D30
-40°C ~ +85°C
X
X
X
X
-40°C ~ +105°C
X
X
X
X
-40°C ~ +125°C
* Please leave blank, as this is the standard/default spec. Contact Abracon for tighter frequency stability
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.21.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
CERAMIC SMD ULTRA MINIATURE QUARTZ CRYSTAL
ABM10

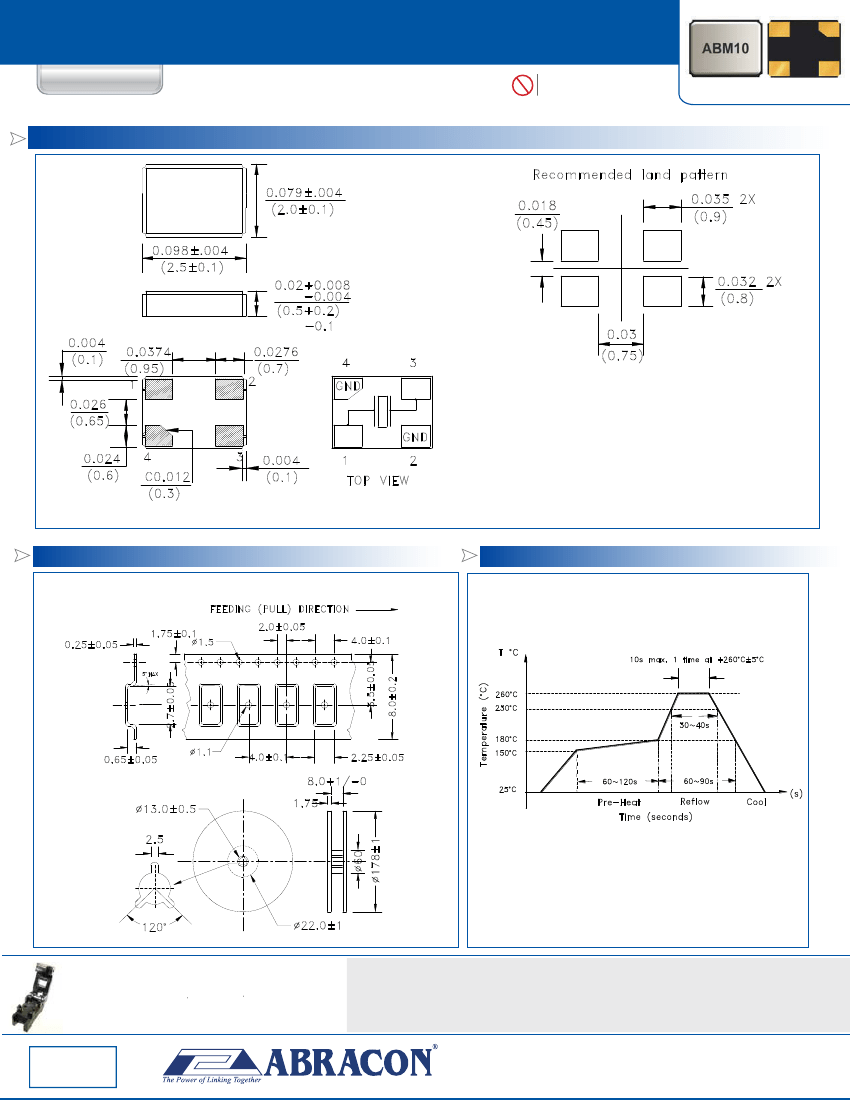

OUTLINE DRAWING:
Pb
RoHS/RoHS II Compliant
2.5 x 2.0 x 0.5 mm
| | | | | | | | | | | | | |
|
Note:
From the top view (marking side), pin #1 is always
located at the bottom left corner of the package. This is
regardless of the location of the Chamfer, since due to
material availability, the Chamfer could be located on
pin#1, 2 or 4. Be advised that the Chamfer location has no
impact on the electrical performance of the device.
Dimensions: inches (mm)
TAPE & REEL:
T: 1000pcs/reel
T3: 3000pcs/reel
REFLOW PROFILE:
Dimensions: mm
Need a test socket for the ABM10 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here. P/N: AXS-2520-04-10
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial,
Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military,
Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure
could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating
-
environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for
more information.
