1-1776257-6 datasheet, PDF - EEWORLD Datasheet

1-1776257-6: Descriptionterminal block 16pos 5.08mm vert; CategoryThe connector; File Size192KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

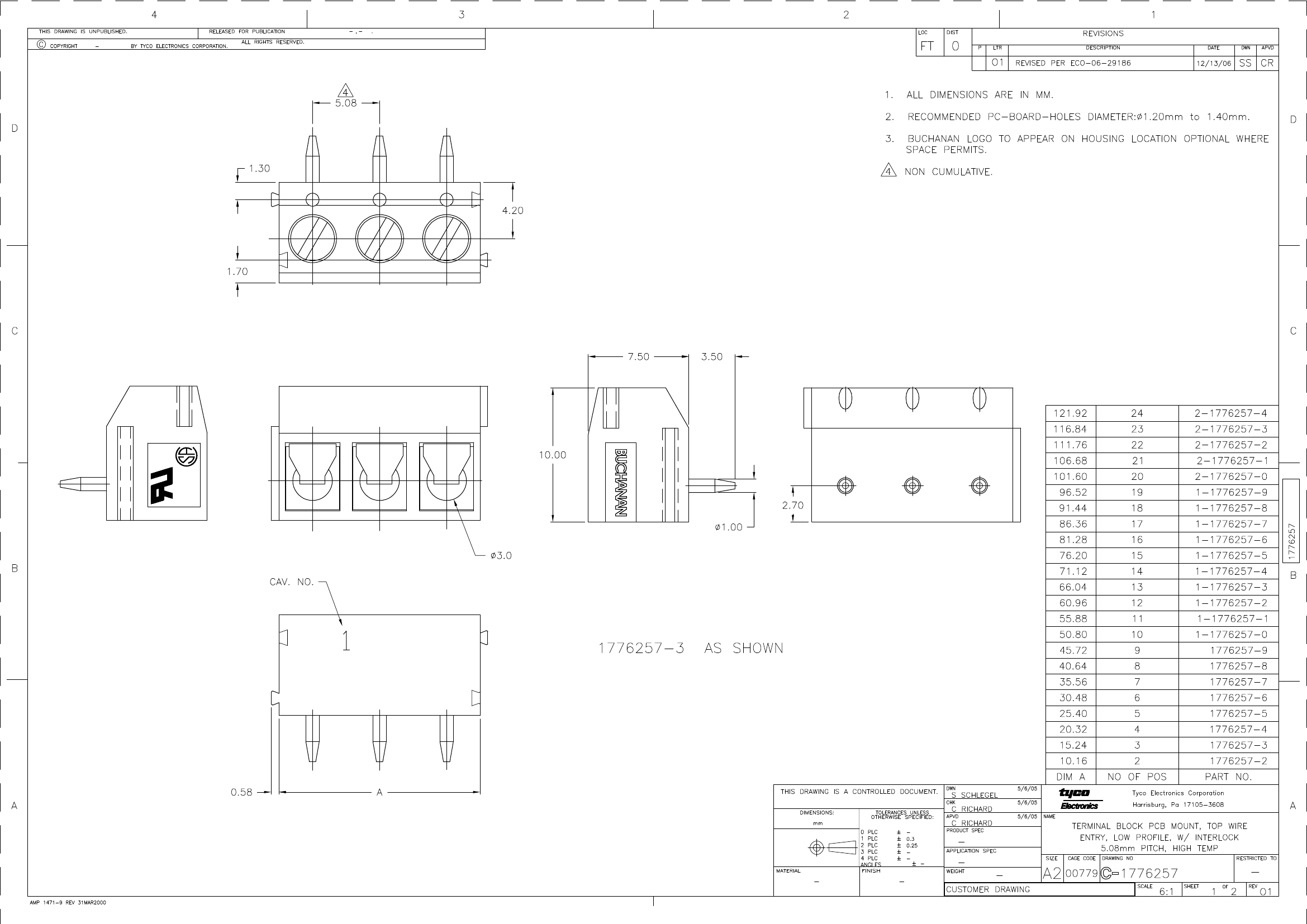

1-1776257-6 Overview

terminal block 16pos 5.08mm vert

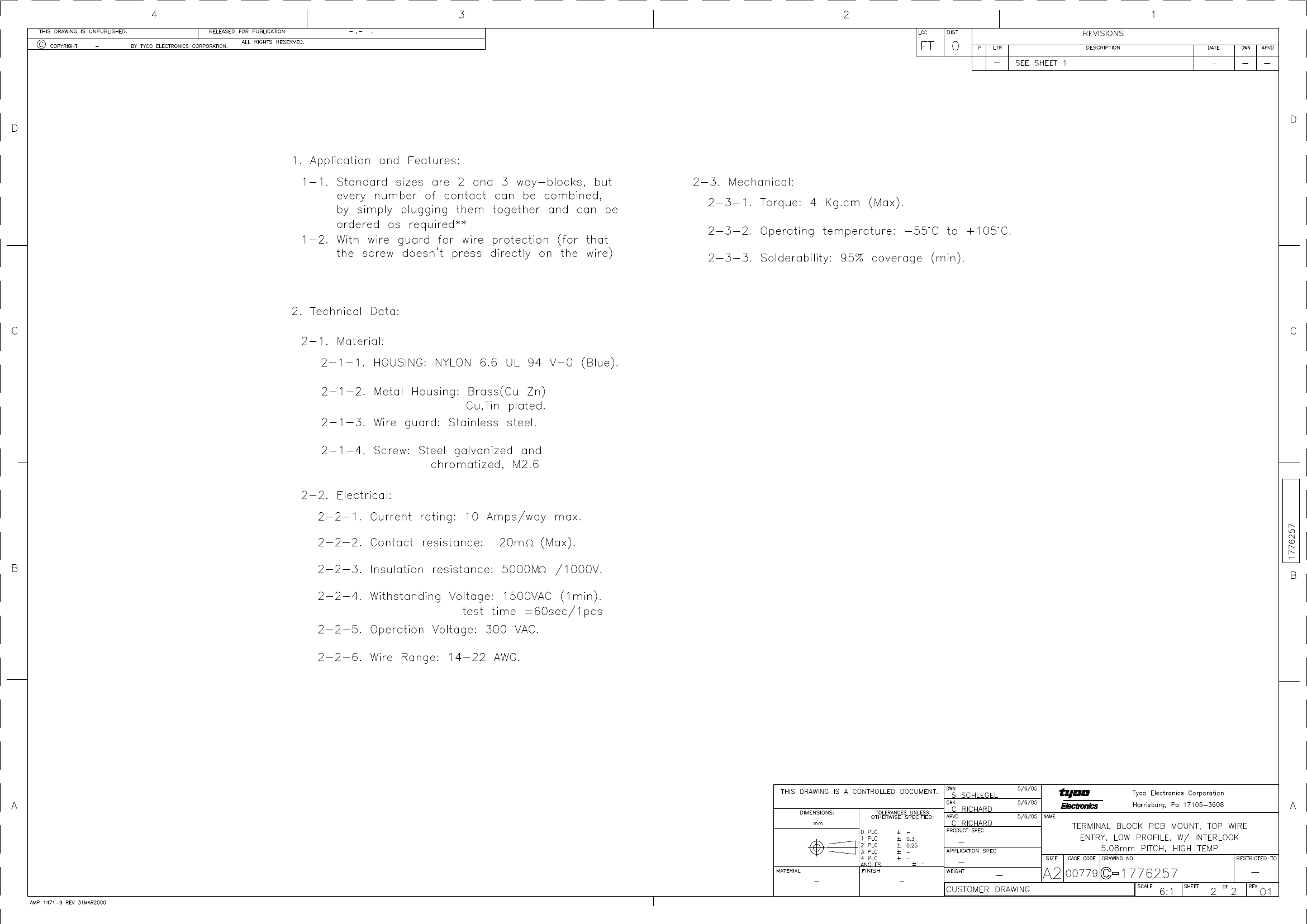

Parameter Name	Attribute value
Datasheets
1776257
Standard Package	800
Category	Connectors, Interconnects
Family	Terminal Blocks - Wire to Board
Packaging	Bulk
Number of Levels	1
Positions Per Level	16
Pitch	0.200" (5.08mm)
Mating Orientati	Vertical with Board
Curre	10A
Voltage	300V
Wire Gauge	14-22 AWG
Mounting Type	Through Hole
Wire Terminati	Screw - Rising Cage Clam
Features	Interlocking (Side)
Col	Blue
Operating Temperature	-55°C ~ 105°C
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Torque - Screw	0.4 Nm (3.5 Lb-In)
Screw Thread	M2.6
