XC6415DAE2MR-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> XC6415DAE2MR-G

XC6415DAE2MR-G: DescriptionFixed Positive LDO Regulator, 2 Output, 3.4V1, 3.4V2, CMOS, PDSO6,; CategoryPower/power management The power supply circuit; File Size1MB，24 Pages; ManufacturerTOREX; Websitehttp://www.torex.co.jp/chinese/; Environmental Compliance

Download Datasheet Parametric View All

XC6415DAE2MR-G Overview

Fixed Positive LDO Regulator, 2 Output, 3.4V1, 3.4V2, CMOS, PDSO6,

XC6415DAE2MR-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7158473062
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	9
Maximum drop-back voltage 1	0.15 V
Nominal dropback voltage 1	0.08 V
Maximum drop-back voltage 2	0.15 V
Maximum input voltage	6 V
Minimum input voltage	3.9 V
JESD-30 code	R-PDSO-G6
JESD-609 code	e3
length	2.9 mm
Maximum load regulation	0.05%
Humidity sensitivity level	1
Number of functions	1
Output times	2
Number of terminals	6
Maximum output current 1	0.2 A
Maximum output current 2	0.2 A
Maximum output voltage 1	3.468 V
Minimum output voltage 1	3.332 V
Nominal output voltage 1	3.4 V
Maximum output voltage 2	3.434 V
Minimum output voltage 2	3.366 V
Nominal output voltage 2	3.4 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Maximum seat height	1.3 mm
surface mount	YES
technology	CMOS
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	2%
width	1.6 mm

Preview

Download Datasheet

View All

XC6415

Series

Dual LDO Regulator with ON/OFF Switch

ETR0332-010

■GENERAL

DESCRIPTION

The XC6415 series is a highly accurate, CMOS Dual LDO voltage regulator. Performance features include low output noise,

high ripple rejection rate, and low dropout. Extremely dense power supply circuit can be organized with a 2 channeled high speed

voltage regulator in low ON resistance which is built-in to an ultra small USP-6C package.

The output voltage for each regulator is set independently by laser trimming and selectable in 0.05V increments within a range

of 0.8 to 5.0V. The EN function allows the output of each regulator to be turned off independently. In this state, the electric charge

at the output capacitor (C

) will be discharged via the internal auto-discharge switch, and as a result the V

OUT

pin quickly returns

to the V

level.

The output stabilization capacitor (C

) is also compatible with low ESR ceramic capacitors. The high level of output stability is

maintained even during frequent load fluctuations, due to the excellent transient response performance. Because regulator 1 and

2 are completely isolated, a cross talk between each channel, which causes a problem during load fluctuations, can be greatly

reduced.

■APPLICATIONS

●

Smart phones / Mobile phones

●

Portable game consoles

●

Digital still cameras / camcorders

●

Digital audio equipment

●

Mobile devices / terminals

■FEATURES

Output Current

Dropout Voltage

Operating Voltage Range

Output Voltage Range

High Accuracy

: 200mA (300mA limit, TYP.)

: 95mV @ I

OUT

=100mA

OUT

=3.0V

: 1.5V ~ 6.0V

: 0.8V ~ 5.0V

(0.05V increments)

: + 1% @ V

OUT

>2.0V

+ 2% @ V

OUT

≧1.5V

+ 20mV @V

OUT

<2.0V

+ 30mV @V

OUT

＜1.5V

: 28μA/ch (TYP.)

: Less than 0.1μA

: 65dB@1kHz

: -40

C ~ 85

: 1.0μF ceramic capacitors

: USP-6C, SOT-26, USPN-6

: EU RoHS Compliant, Pb Free

Low Power Consumption

Stand-by Current

Ripple Rejection

Operating Ambient Temperature

Low ESR Capacitor

Packages

Environmentally Friendly

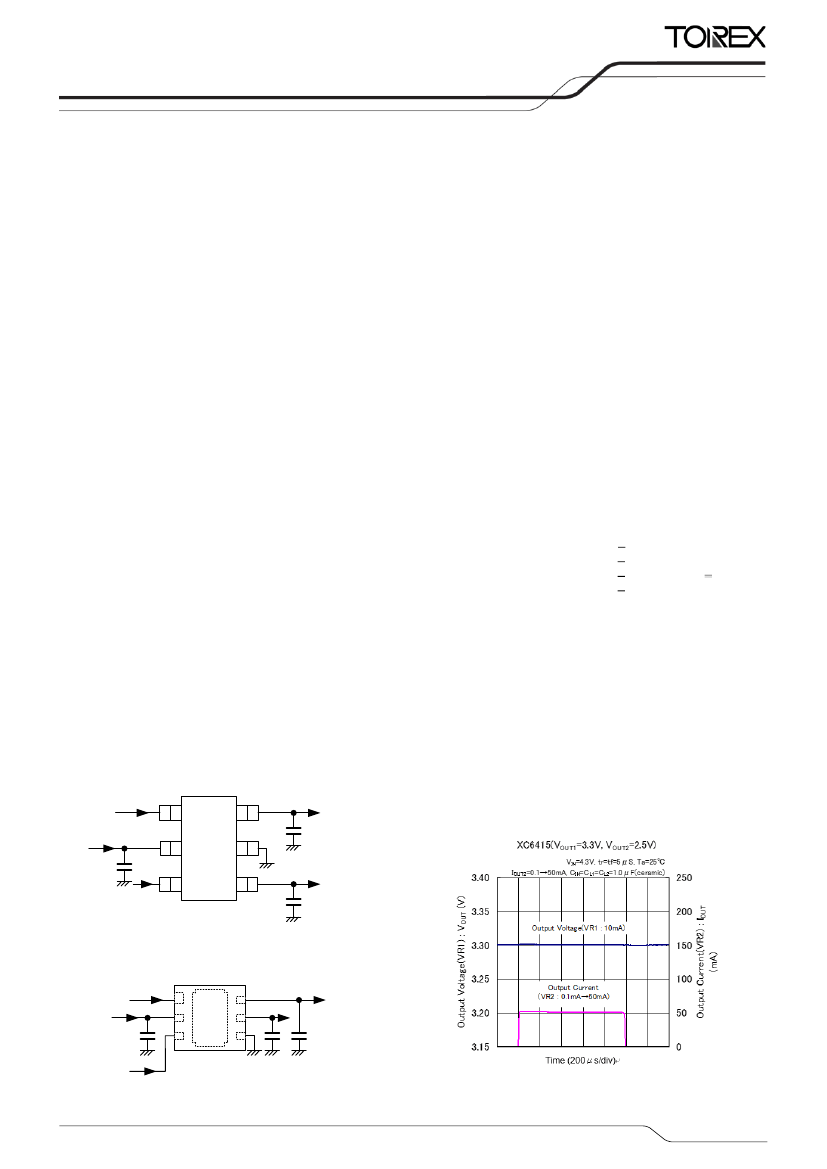

■TYPICAL

APPLICATION CIRCUITS

EN1

OUT1

■TYPICAL

PERFORMANCE

CHARACTERISTICS

●

Cross Talk

OUT2

EN2

SOT-26

(TOP VIEW)

1. EN2

2. V

3. EN1

6. V

OUT2

5. V

OUT1

4. V

USP-6C

(TOP VIEW)

1/24
