CDPH-2-B-ST-06-SD-GD30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> CDPH-2-B-ST-06-SD-GD30

CDPH-2-B-ST-06-SD-GD30: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CDPH-2-B-ST-06-SD-GD30 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

CDPH-2-B-ST-06-SD-GD30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166993270
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	1.051 inch
body length	0.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Operating voltage:

Insulator material:

Contact material:

Contact plating:

Contact resistance:

Insulator resistance:

Withstanding:

Operating temperature:

5 amps

250 VAC

PBT, glass reinforced, UL94V-0

Phosphor bronze

Tin, gold or duplex

10 milliohms max.

5,000 megohms min

1,000 VAC

-55˚C to +125˚C

C=0.100 X No. of positions

D=C-0.100

Series

CDPH

No. of Rows

Type

No. of Pins

Pin Length

SD or CS(A/B/E)

Plating

RoHS compliant

Rev.

Description

Pin header, 2=Dual rows ST=Straight

1-40 (single row) SD=Standard (3.0mm mating, 2.3mm tail) SGXX=Duplex

GDXX=Gold

dual insulator 1=Single row RA=Right angle

2-80 (double row) CS=Customer specified pin length. See XX=Flash if blank, TN=Tin

SM=Surface mount

diagram for A, B and E dimensions

03, 05, 10, 15, 30µ”

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

Central Components Manufacturing

08/10/99

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

08/10/99

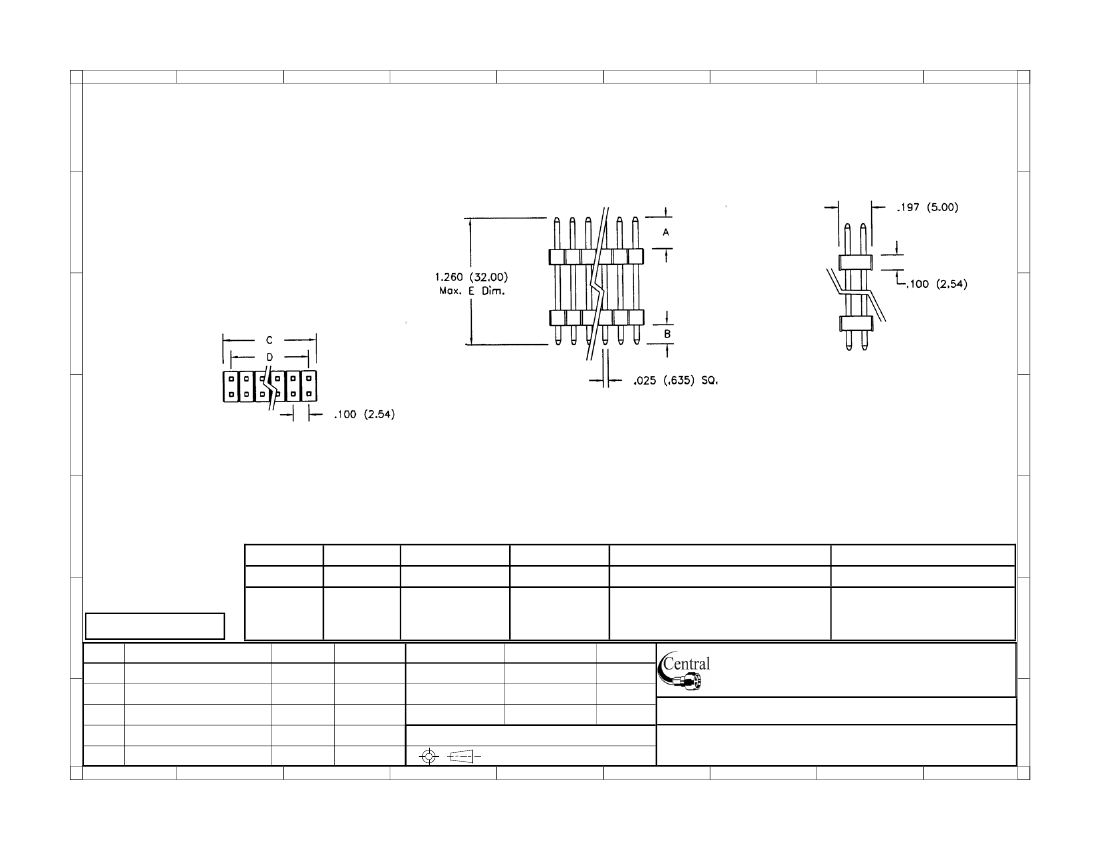

08/10/99 Part No.:

CDPH-2-B-ST-XX-CS(A/B/E)-XX

Description: Dual insulator pin header

0.00 ± 0.20 Angles ± 3’

UNIT: mm
