C200-404-1-N-D106-P-B57-S-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> C200-404-1-N-D106-P-B57-S-C

C200-404-1-N-D106-P-B57-S-C: DescriptionRack and Panel Connector,; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

C200-404-1-N-D106-P-B57-S-C Overview

Rack and Panel Connector,

C200-404-1-N-D106-P-B57-S-C Parametric

Parameter Name	Attribute value
Objectid	4004302895
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-81659
body width	2 inch
subject depth	1.255 inch
body length	2.012 inch
Connector type	RACK AND PANEL CONNECTOR
Contact point gender	MALE AND FEMALE
empty shell	NO
Filter function	YES
insulator material	PLASTIC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Guideline	MIL
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Termination type	CRIMP
Total number of contacts	106

C200-404-1-N-D106-P-B57-S-C Preview

ARINC 404

MIL-C-81659

Sabritec's ARINC 404 filter connectors are

designed to meet or exceed all applicable

requirements of the military specification. These

connectors are intermateable and interchangeable

with the standard non-filtered connectors.

Material and Finishes

Shell

Insulator

Contacts

Grommet & Seal

Ground Plane

Capacitor

Inductor

Aluminum alloy/Steel/Composite

High grade plastic/epoxy

Copper alloy, gold plate

Silicon base elastomer

Beryllium copper, silver plate

Barium Titanate

Ferrite bead

Connector Description Code

P200 - 404 - 2 - N - A106 - P - B57 - P - P

FILTER TYPE:

Pi, L, C

PREFIX:

SHELL SIZE:

1, 2, 3, 4

PLATING:

C - Cadmium (Yellow Chromate)

N - Electroless Nickel

CONTACT TERMINATION:

S - Solder Cup

P - PC Tail

C - Crimp

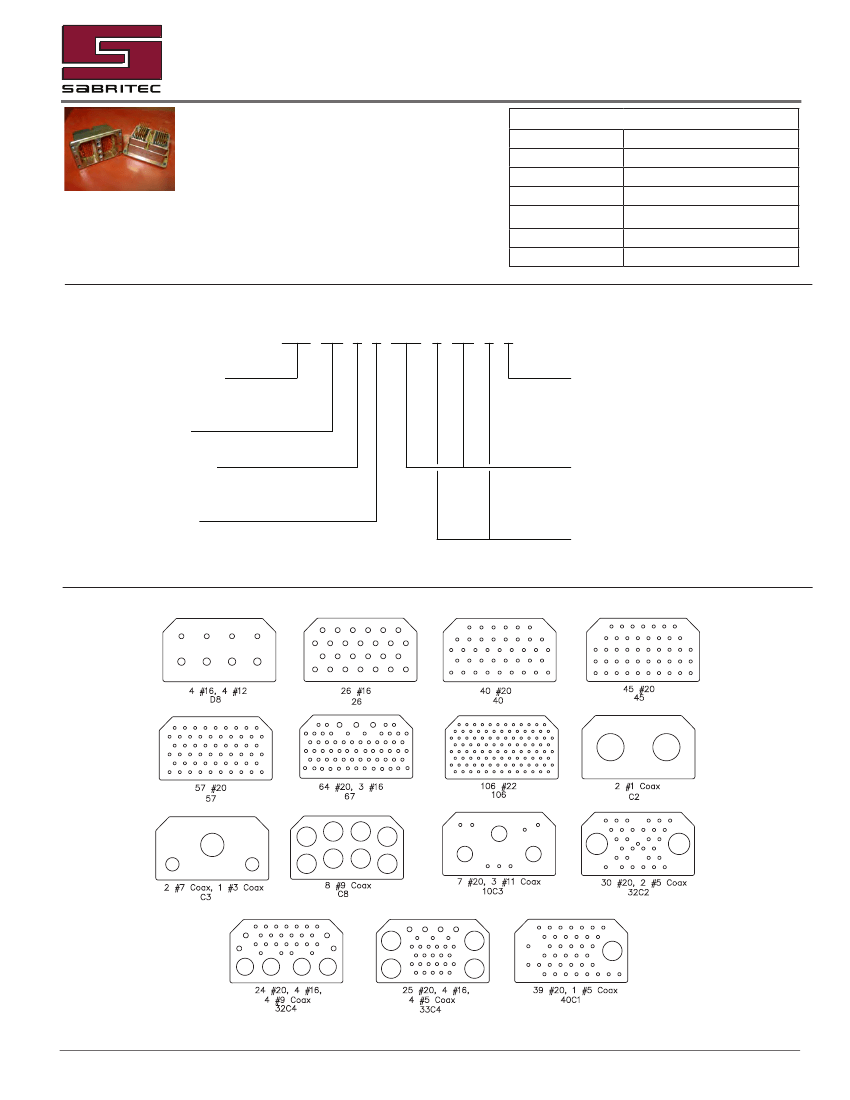

INSERT ARRANGEMENTS:

Cavity A, B, C, D

CONTACT TYPE:

P - Pin

S - Socket

Insert Arrangements

Sabritec provides specialty, enhanced performance connectors and cable assemblies and as such does not currently offer circular, rack and panel, or D-subminiature connectors that are listed

on military standard Qualified Products Lists (QPL) per applicable detail specification sheets. Sabritec’s connectors are fully intermateable with applicable QPL products and meet the applicable

requirements of all military standards listed in this catalog.

17550 Gillette Avenue, Irvine, CA 92614 • www.sabritec.com • Tel: (949) 250-1244 • Fax (949) 250-1009

Pg. 33

ARINC 404

MIL-C-81659

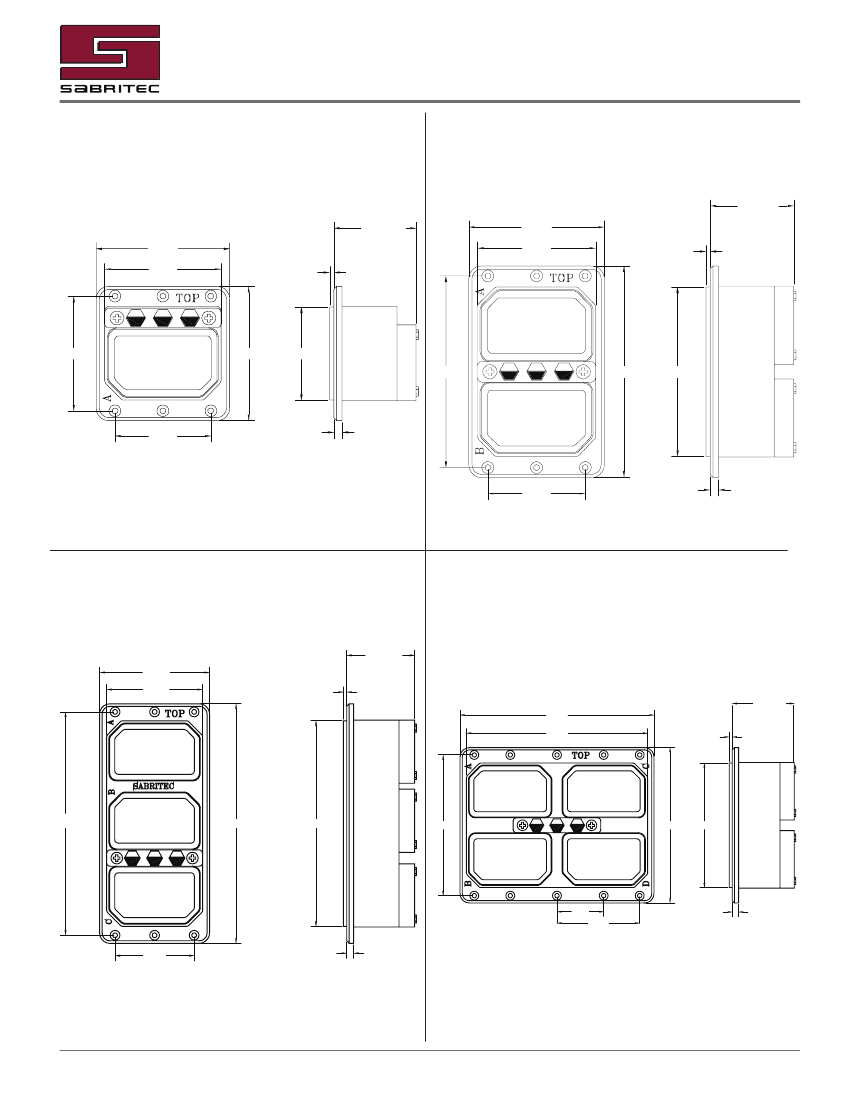

Shell Size 1

Shell Size 2

(2.000)

(1.750)

1.450 MAX

Pi Filter

1.380 MAX

C Filter

(.060)

(2.000)

(1.750)

1.450 MAX

Pi Filter

1.380 MAX

C Filter

(.060)

(1.720)

(2.012)

(1.405)

(2.783)

(3.075)

(2.468)

(1.437)

(.125)

(1.437)

(.125)

Shell Size 3

Shell Size 4

(2.000)

(1.750)

1.450 MAX

Pi Filter

1.380 MAX

C Filter

(.060)

(3.865)

(3.610)

1.450 MAX

Pi Filter

1.380 MAX

C Filter

(.060)

(4.024)

(4.318)

(3.711)

(2.783)

(3.110)

(2.468)

(.930)

(1.648)

(.125)

(1.437)

(.125)

Pg. 34

17550 Gillette Avenue, Irvine, CA 92614 • www.sabritec.com • Tel: (949) 250-1244 • Fax (949) 250-1009
