380598-2 datasheet, PDF - EEWORLD Datasheet

380598-2: Descriptionconn socket rcpt .018-.040 30au; CategoryThe connector; File Size79KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

380598-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380598-2	-	-	View	Buy Now

conn socket rcpt .018-.040 30au

Parameter Name	Attribute value
Datasheets
380598
3D Model

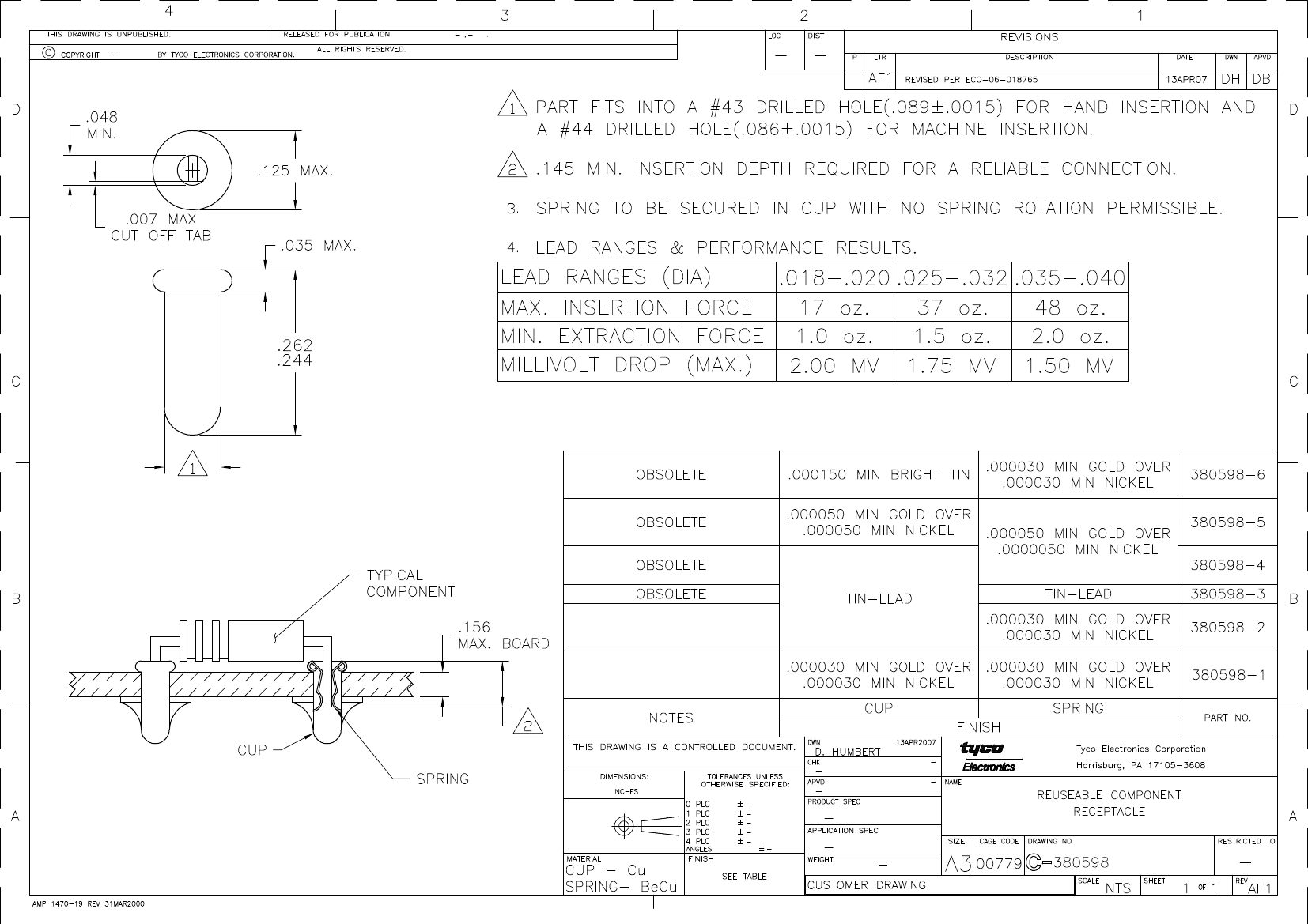

380598-2.pdf
Standard Package	50,000
Category	Connectors, Interconnects
Family	Terminals - PC Pin Receptacles, Socket Connectors
Packaging	Bulk
Tail Type	No Tail
Terminati	Solde
Length - Overall	0.262" (6.65mm)
Accepts Pin Diamete	0.018" ~ 0.040" (0.46mm ~ 1.02mm)
Mounting Hole Diamete	0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Pin Hole Diamete	0.048" (1.22mm)
Flange Diamete	0.125" (3.18mm)
Tail Diamete	-
Socket Depth	0.145" (3.68mm)
Contact Material	Beryllium Coppe
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Features	-
Operating Temperature	-
Board Thickness	0.156" (3.96mm)
Insertion Force	0.12Nm ~ 0.34Nm
Other Names	380598-2-NDA29071

	380598-2	380598-1	380598-3
Description	conn socket rcpt .018-.040 30au	conn socket rcpt .018-.040 30au	conn socket rcpt .018-.040 tin
Standard Package	50,000	2,000	2,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminals - PC Pin Receptacles, Socket Connectors	Terminals - PC Pin Receptacles, Socket Connectors	Terminals - PC Pin Receptacles, Socket Connectors
Packaging	Bulk	Bulk	Bulk
Tail Type	No Tail	No Tail	No Tail
Terminati	Solde	Solde	Solde
Length - Overall	0.262" (6.65mm)	0.262" (6.65mm)	0.262" (6.65mm)
Accepts Pin Diamete	0.018" ~ 0.040" (0.46mm ~ 1.02mm)	0.018" ~ 0.040" (0.46mm ~ 1.02mm)	0.018" ~ 0.040" (0.46mm ~ 1.02mm)
Mounting Hole Diamete	0.086" ~ 0.089" (2.18mm ~ 2.26mm)	0.086" ~ 0.089" (2.18mm ~ 2.26mm)	0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Pin Hole Diamete	0.048" (1.22mm)	0.048" (1.22mm)	0.048" (1.22mm)
Flange Diamete	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)
Socket Depth	0.145" (3.68mm)	0.145" (3.68mm)	0.145" (3.68mm)
Contact Material	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe
Contact Finish	Gold	Gold	Tin-Lead
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	-
Board Thickness	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Insertion Force	0.12Nm ~ 0.34Nm	0.12Nm ~ 0.34Nm	0.12Nm ~ 0.34Nm
Other Names	380598-2-NDA29071	380598-1-NDA29070	380598-3-NDA29072
