8-520264-1: Descriptionconn QC rcpt 18-22awg 0.250; CategoryThe connector; File Size56KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

8-520264-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-520264-1	-	-	View	Buy Now

conn QC rcpt 18-22awg 0.250

Parameter Name	Attribute value
Datasheets

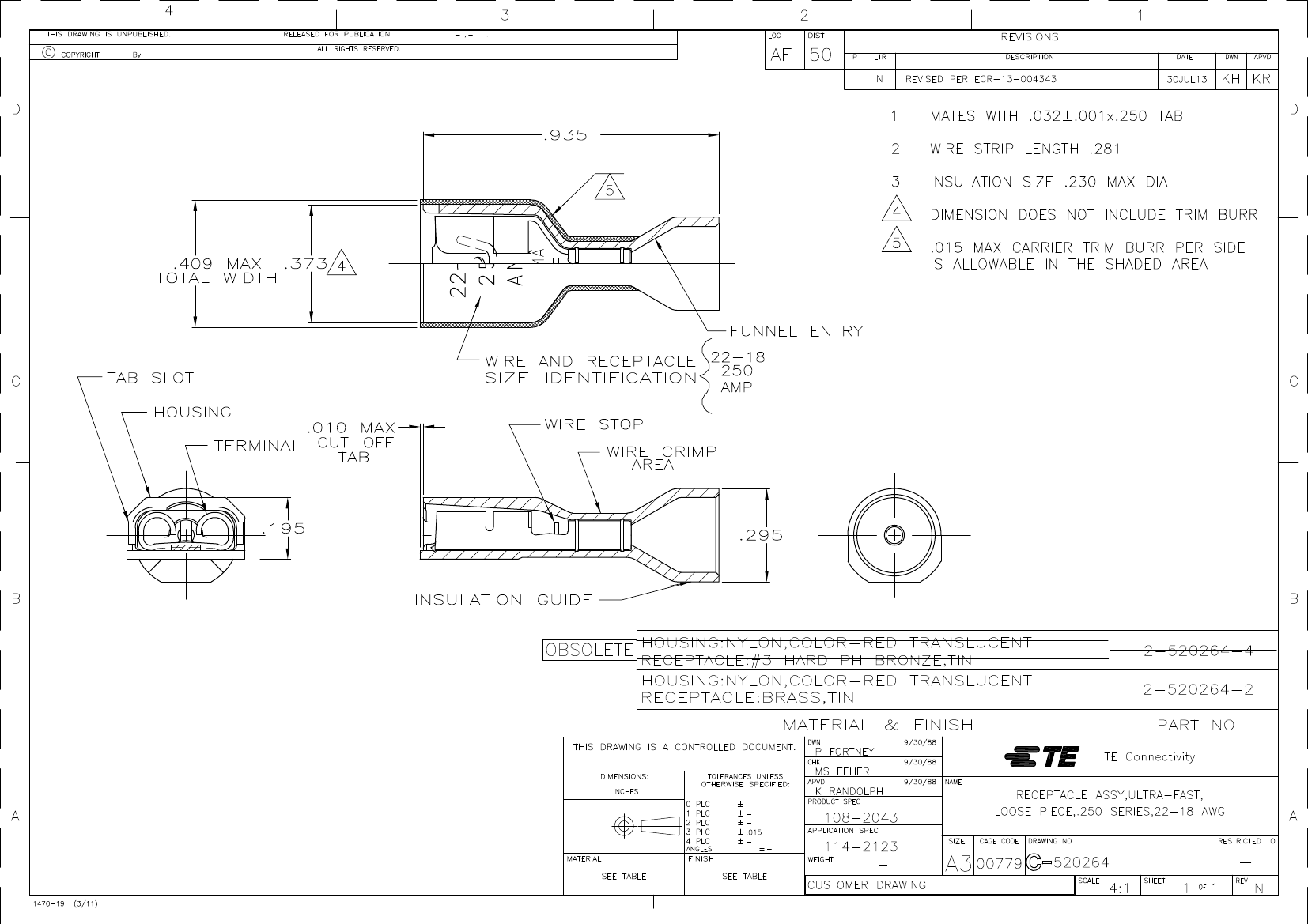

520264 Drawing
Standard Package	1,000
Category	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Bulk
Terminal Type	Standard
Gende	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	-
Length - Overall	0.935" (23.75mm)
Terminati	Crim
Wire Gauge	18-22 AWG
Insulati	Fully Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Col	Red
Contact Material	Brass
Contact Finish	Ti
Insulation Diamete	0.230" (5.84mm)
Associated Produc	58628-1-ND - TOOL PROCRIMP 14-26AWG ULTRAFASTA9796-ND - TOOL DIESET 14-26AWG ULTRAFASTA28007-ND - DIE SET ULTRA-FASTONS 22-18 AWG

	8-520264-1
Description	conn QC rcpt 18-22awg 0.250
Standard Package	1,000
Category	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Bulk
Terminal Type	Standard
Gende	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Length - Overall	0.935" (23.75mm)
Terminati	Crim
Wire Gauge	18-22 AWG
Insulati	Fully Insulated
Mounting Type	Free Hanging (In-Line)
Col	Red
Contact Material	Brass
Contact Finish	Ti
Insulation Diamete	0.230" (5.84mm)
Associated Produc	58628-1-ND - TOOL PROCRIMP 14-26AWG ULTRAFASTA9796-ND - TOOL DIESET 14-26AWG ULTRAFASTA28007-ND - DIE SET ULTRA-FASTONS 22-18 AWG
