0190070007: Descriptionconn QC rcpt 18-22awg 0.250; CategoryThe connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0190070007 Overview

conn QC rcpt 18-22awg 0.250

0190070007 Parametric

Parameter Name	Attribute value
Datasheets
0190070007
190070007 Drawings
Insulkrimp®
Prod Spec
RoHS Informati
190070007 Cert of Compliance
Featured Produc
Solderless Terminals Interactive Guide
Standard Package	1,500
Category	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Reel
Terminal Type	Angled - 90°, Flag
Gende	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	-
Length - Overall	-
Terminati	Crim
Wire Gauge	18-22 AWG
Insulati	Fully Insulated
Mounting Type	Free Hanging (In-Line), Right Angle
Features	-
Col	Red
Contact Material	Brass
Contact Finish	Ti
Insulation Diamete	0.240" (6.10mm)
Associated Produc	0638026200-ND - MINI MAC APPLICATOR - REAR FEED0192920015-ND - KRIMPING DIE 22-18 ELEC FLAG0192870046-ND - DIES INSULATED FLAGS 22-18AWG
Other Names	019007-000719007-0007190070007AA-2220XZ

Preview

Download Datasheet

View All

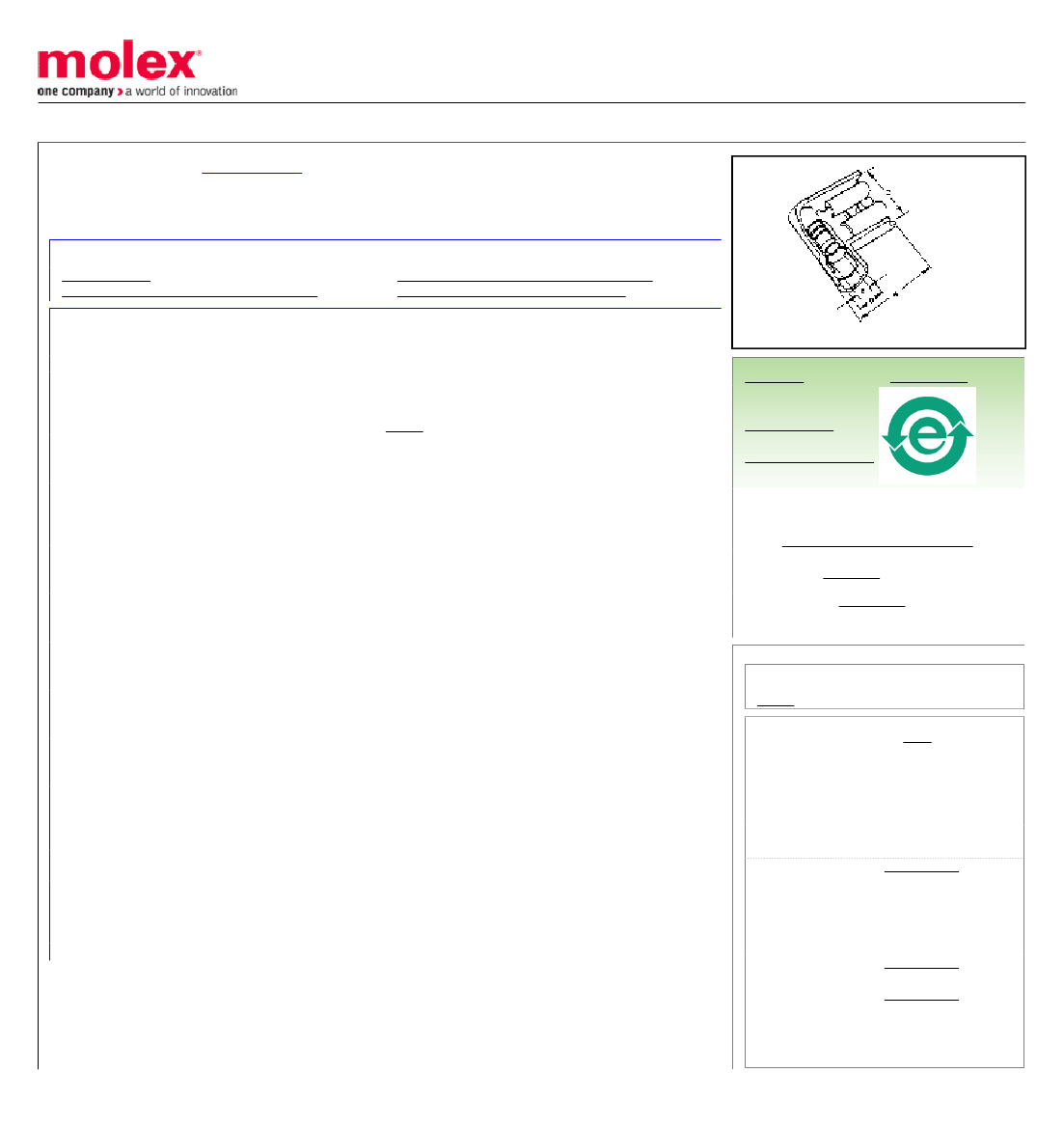

This document was generated on 03/28/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

19007-0007

Active

Flag InsulKrimp™ Quick Disconnect, Female, for 18-22 (0.80-0.35mm²) Wire, Metal

Strip, Tab 6.35 x 0.81mm

Documents:

Drawing (PDF)

Product Specification PS-19902-008 (PDF)

Product Specification PS-19902-011 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

Agency Certification

CSA

LR18689

E79133

General

Product Family

Series

Crimp Quality Equipment

Product Name

Type

Quick Disconnects

19007

Yes

InsulKrimp™

Quick Disconnect

Physical

Barrel Type

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Insulation

Lock to Mating Part

Material - Metal

Material - Resin

Orientation

Packaging Type

Polarized to Mating Part

Tab Thickness

Tab Width

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

Natural

94V-2

Female

Nylon (PA)

None

Brass

Nylon

Flag

Reel

0.81mm

6.35mm

-65°C to +105°C

6.10mm max.

18, 20, 22

0.35 - 0.80

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

19007Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Rear Feed Mini-

0638026200

Mac™ Applicator

for Flag Quick

Disconnect Female

Terminals, 18-22

AWG Wire

Applicator Perishable 0192920015

Tool Kit

ASP Tool Kit,

0192870046

Perishable, Used in

ASP-101RF Press

that Processes Metal

Strip Product

Electrical

Voltage - Maximum

600V

Material Info

Old Part Number

AA-2220XZ

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-19902-008, PS-19902-011

SD-19007-004

0190070007 Related Products

	0190070007
Description	conn QC rcpt 18-22awg 0.250
Standard Package	1,500
Category	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Reel
Terminal Type	Angled - 90°, Flag
Gende	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Terminati	Crim
Wire Gauge	18-22 AWG
Insulati	Fully Insulated
Mounting Type	Free Hanging (In-Line), Right Angle
Col	Red
Contact Material	Brass
Contact Finish	Ti
Insulation Diamete	0.240" (6.10mm)
Associated Produc	0638026200-ND - MINI MAC APPLICATOR - REAR FEED0192920015-ND - KRIMPING DIE 22-18 ELEC FLAG0192870046-ND - DIES INSULATED FLAGS 22-18AWG
Other Names	019007-000719007-0007190070007AA-2220XZ
