8SP36-02-1-05N-F datasheet, PDF

8SP36-02-1-05N-F: DescriptionRotary Switch, 5 Positions, DP5T, Maintained, 0.25A, 28VDC, 12 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size470KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric View All

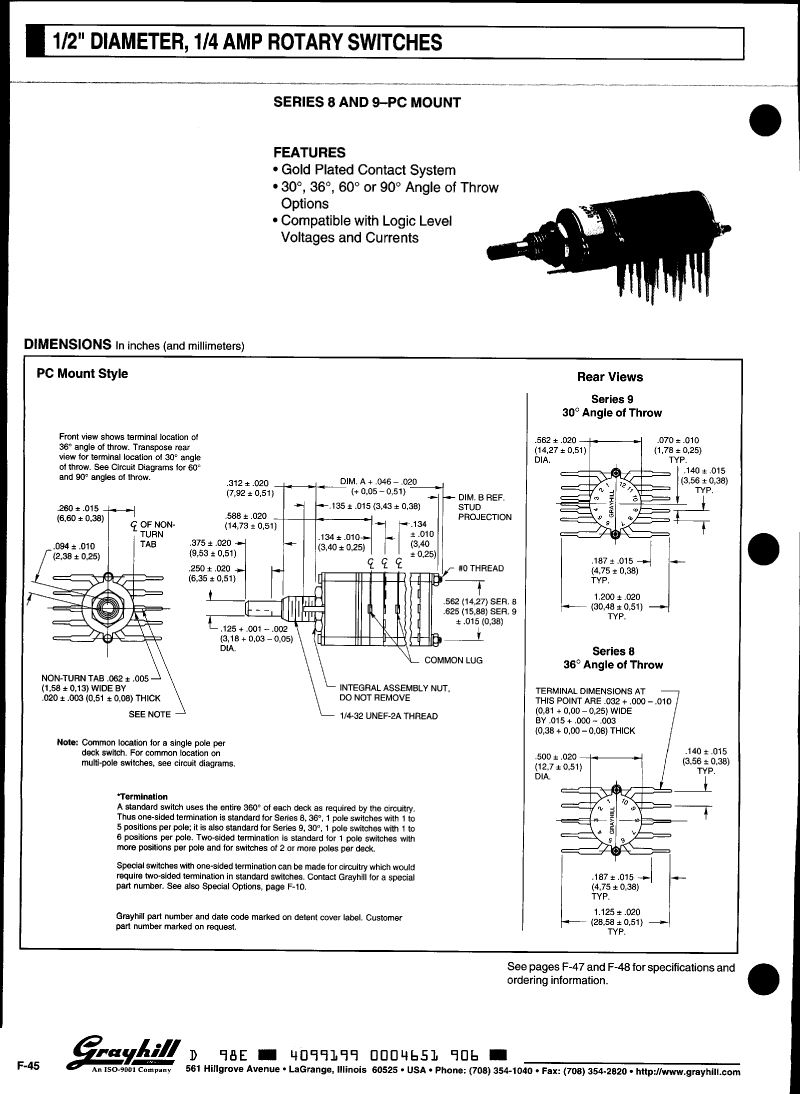

8SP36-02-1-05N-F Overview

Rotary Switch, 5 Positions, DP5T, Maintained, 0.25A, 28VDC, 12 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight,

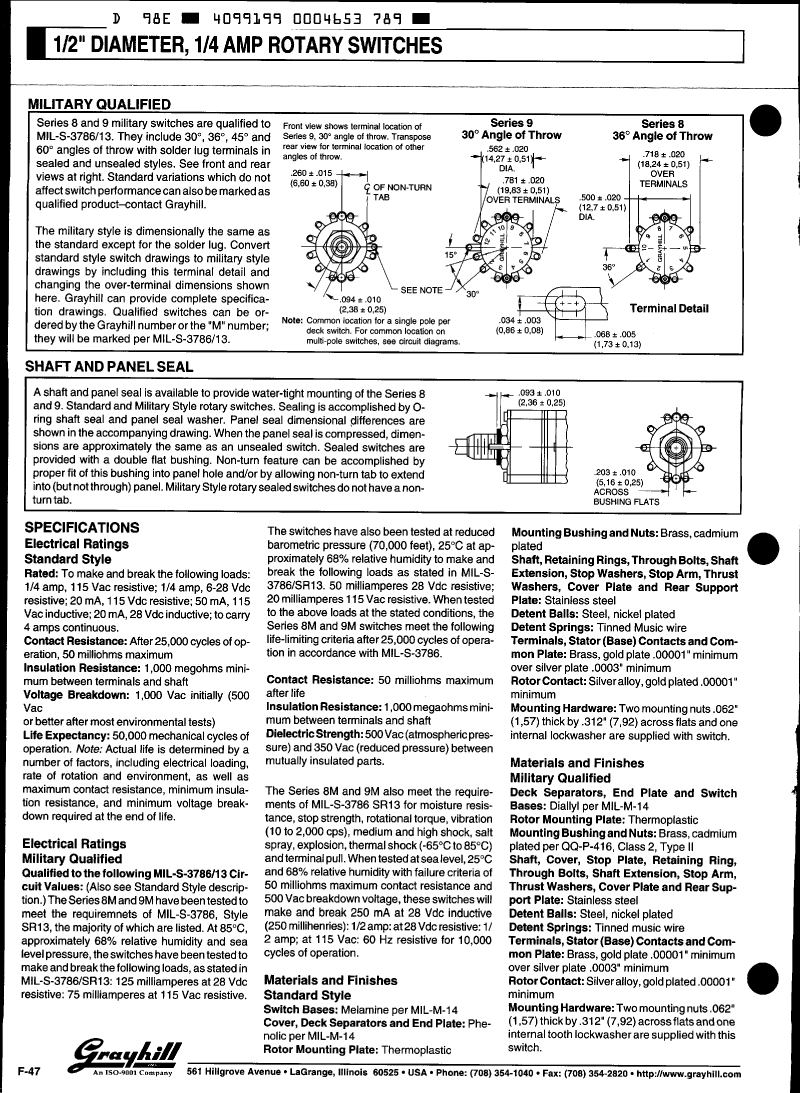

Parameter Name	Attribute value
Objectid	1153545847
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.1
Actuator length	0.375 inch
Actuator material	STAINLESS STEEL
Actuator type	ROTARY SHAFT
body height	31.1912 mm
Body length or diameter	14.2748 mm
Casing diameter	0.25 inch
Nozzle length	0.312 inch
Casing type	1/4-32
center contact material	SILVER
Center contact plating	GOLD
Contact (AC) maximum rated load I	0.05A@115VAC
Contact (AC) maximum rated R load	0.25A@115VAC
Maximum contact current (AC)	0.25 A
Maximum contact current (DC)	0.25 A
Contact (DC) maximum rated R load	0.25A@28VDC
Contact resistance	0.05 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	500VAC V
Electrical life	25000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD
Graduation angle	36 deg
Insulation resistance	1000000000 Ω
insulator material	MELAMINE PHENOLIC
Installation features	THROUGH HOLE-STRAIGHT

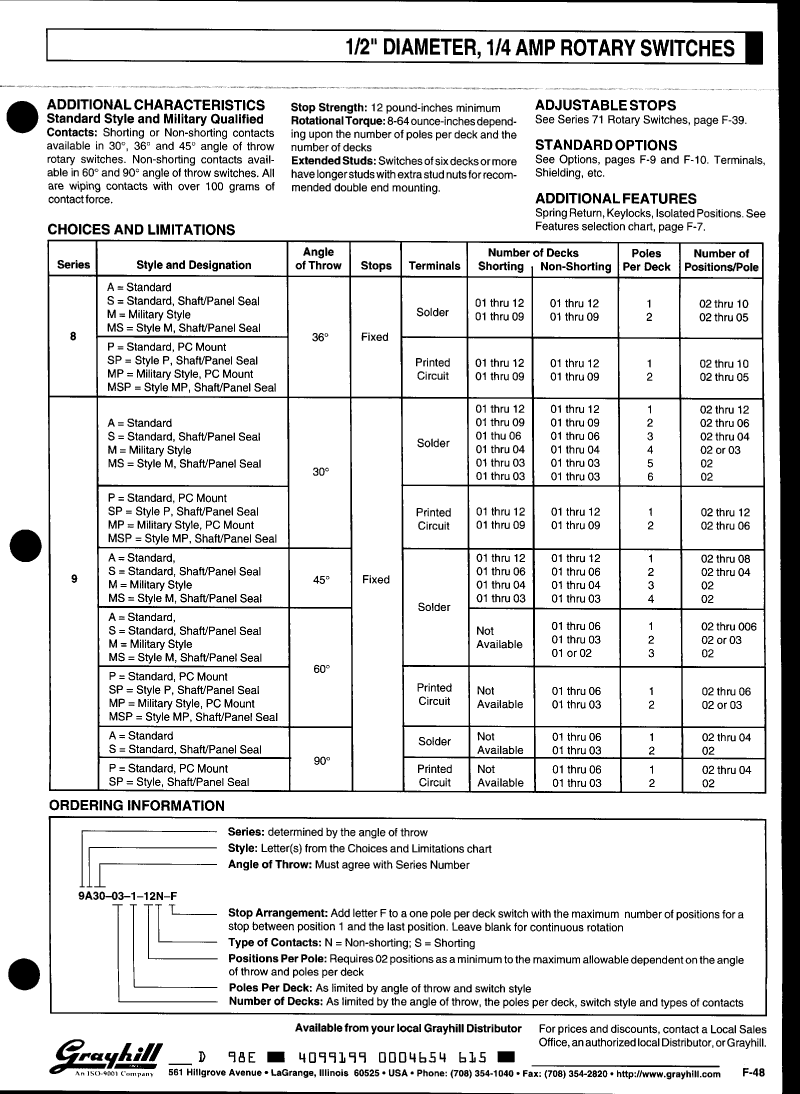

Number of positions	5
PCB hole count	12
surface mount	NO
Switch action	MAINTAINED

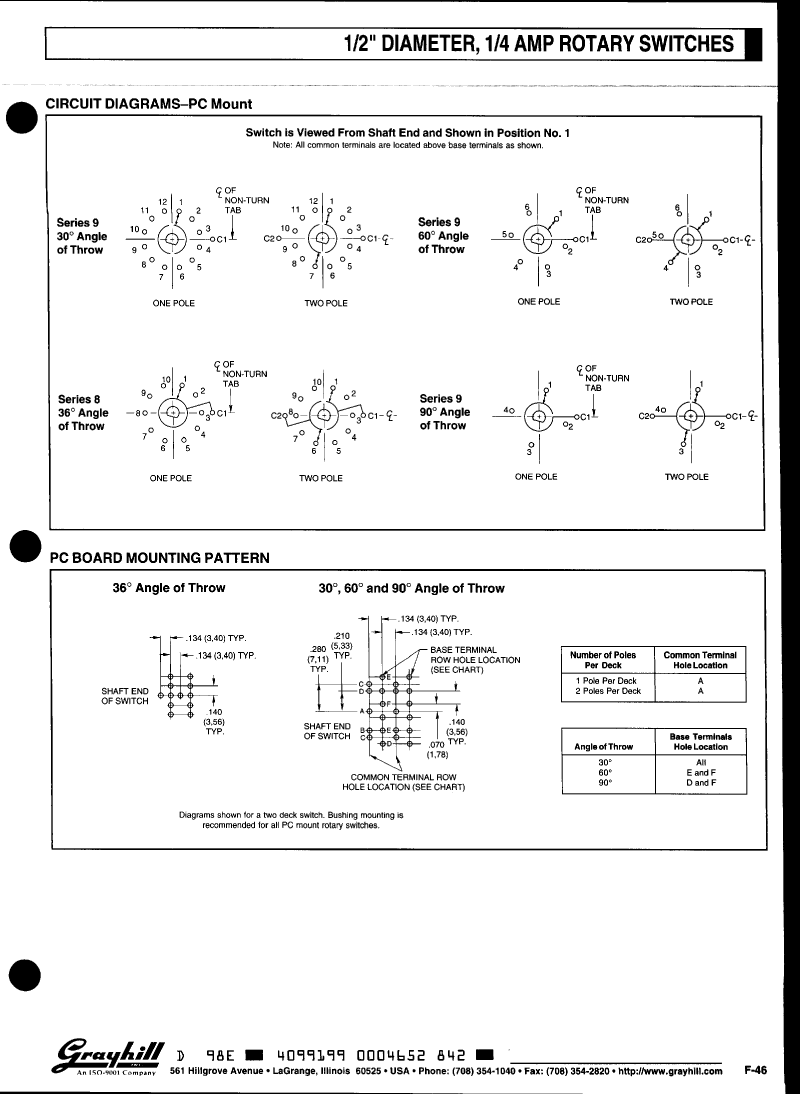

switch function	DP5T
Switch type	ROTARY SWITCH
Terminal length	0.187 inch
Terminal material	BRASS
Termination type	SOLDER
