8-34294-1 datasheet, PDF - EEWORLD Datasheet

8-34294-1: Descriptionconn rect tab tongue 22-16awg; CategoryThe connector; File Size32KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

8-34294-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-34294-1	-	-	View	Buy Now

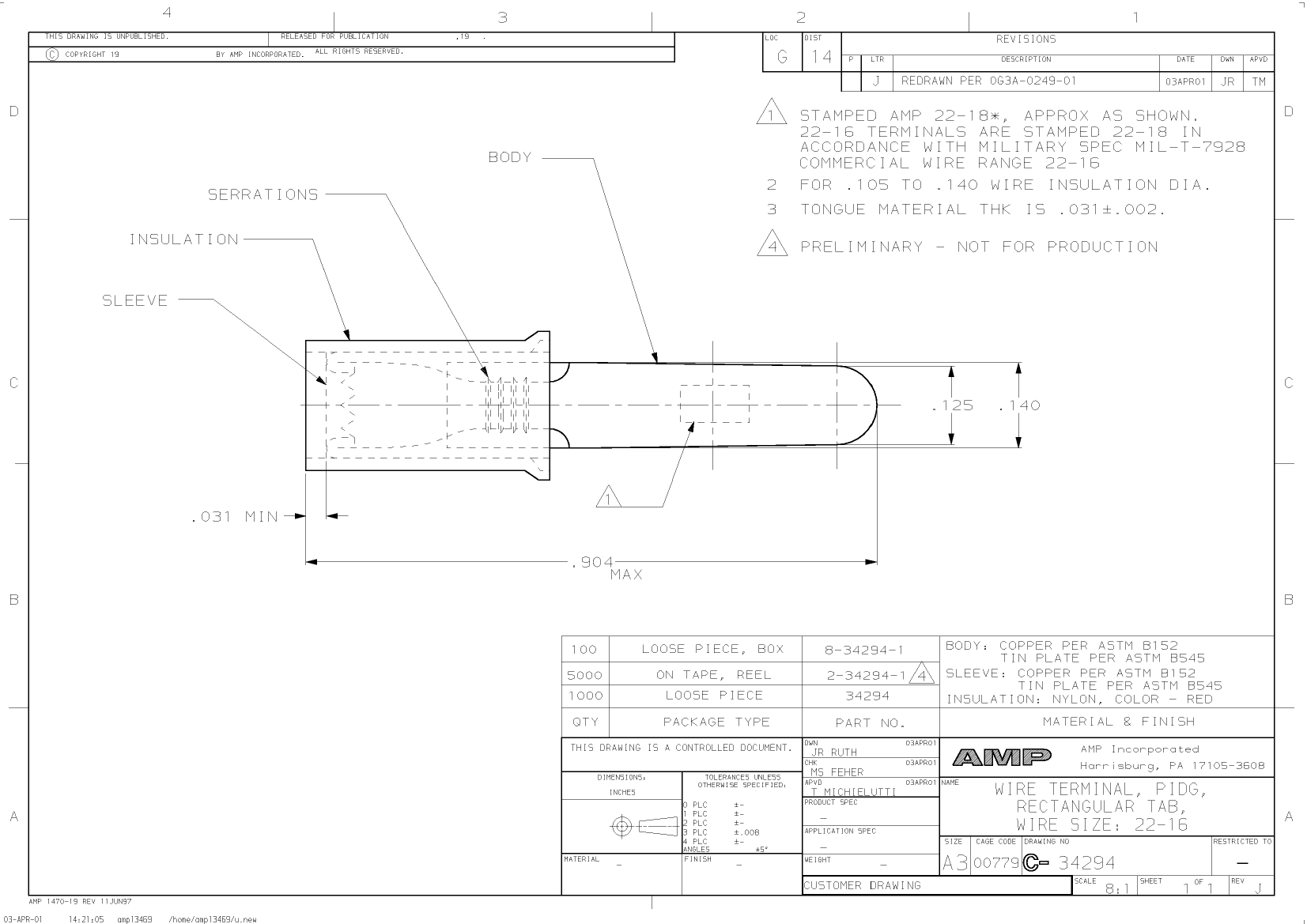

conn rect tab tongue 22-16awg

Parameter Name	Attribute value
Datasheets
34294
Standard Package	100
Category	Connectors, Interconnects
Family	Terminals - Rectangular Connectors
Packaging	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	-
Terminal Style	No Stud Hole
Tab Thickness	0.031" (0.79mm)
Length - Overall	0.904" (22.96mm)
Width - Outer Edges	0.140" (3.56mm)
Mounting Type	Free Hanging (In-Line)
Terminati	Crim
Wire Gauge	16-22 AWG
Insulati	Non-Mating End Insulated
Features	Serrated Terminati
Col	Red
Contact Finish	Ti
Contact Material	Coppe
Diameter - Barrel ID	-
Diameter - Barrel OD	-
Diameter - Ring ID	-
Associated Produc	69151-1-ND - TOOL HAND PIDG S EXP 16-22AWG47386-5-ND - HAND TOOL PIDG 16-26AWG217202-1-ND - T-HEAD CRIMPER NORM CLOSEDA27484-ND - HAND TOOL PIDG 16-26AWGA9811-ND - TOOL CRIMP INSUL TERM W/DIE SETA9991-ND - DIESET SPLICE TERMINALS

	8-34294-1	34294
Description	conn rect tab tongue 22-16awg	conn tab tong str pidg 22-16awg
Standard Package	100	1,000
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Terminals - Rectangular Connectors	Terminals - Rectangular Connectors
Packaging	Bulk	Bulk
Terminal Type	Rectangular Tongue	Rectangular Tongue
Terminal Style	No Stud Hole	No Stud Hole
Tab Thickness	0.031" (0.79mm)	0.031" (0.79mm)
Length - Overall	0.904" (22.96mm)	0.904" (22.96mm)
Width - Outer Edges	0.140" (3.56mm)	0.140" (3.56mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Terminati	Crim	Crim
Wire Gauge	16-22 AWG	16-22 AWG
Insulati	Non-Mating End Insulated	Non-Mating End Insulated
Features	Serrated Terminati	Serrated Terminati
Col	Red	Red
Contact Finish	Ti	Ti
Contact Material	Coppe	Coppe
Associated Produc	69151-1-ND - TOOL HAND PIDG S EXP 16-22AWG47386-5-ND - HAND TOOL PIDG 16-26AWG217202-1-ND - T-HEAD CRIMPER NORM CLOSEDA27484-ND - HAND TOOL PIDG 16-26AWGA9811-ND - TOOL CRIMP INSUL TERM W/DIE SETA9991-ND - DIESET SPLICE TERMINALS	69151-1-ND - TOOL HAND PIDG S EXP 16-22AWG47386-5-ND - HAND TOOL PIDG 16-26AWG217202-1-ND - T-HEAD CRIMPER NORM CLOSEDA27484-ND - HAND TOOL PIDG 16-26AWGA9811-ND - TOOL CRIMP INSUL TERM W/DIE SETA9991-ND - DIESET SPLICE TERMINALS
