DZ23C39-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DZ23C39-7

DZ23C39-7: Descriptiondiode zener dual 39v sot23-3; Categorysemiconductor Discrete semiconductor; File Size153KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

DZ23C39-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DZ23C39-7	-	-	View	Buy Now

DZ23C39-7 Overview

diode zener dual 39v sot23-3

DZ23C39-7 Parametric

Parameter Name	Attribute value
Datasheets
DZ23C2V7 - DZ23C51
Product Photos
SOT23
Standard Package	3,000
Category	Discrete Semiconductor Products
Family	Diodes - Zener - Arrays
Packaging	Tape & Reel (TR)
Configurati	1 Pair Common Cathode
Voltage - Zener (Nom) (Vz)	39V
Tolerance	±5%
Power - Max	300mW
Impedance (Max) (Zzt)	90 Ohm
Current - Reverse Leakage @ V	-
Voltage - Forward (Vf) (Max) @ If	-
Operating Temperature	-65°C ~ 150°C
Mounting Type	Surface Mou
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3

Preview

Download Datasheet

View All

DZ23C2V7 - DZ23C51

300mW DUAL SURFACE MOUNT ZENER DIODE

Features



Dual Zeners in Common Cathode Configuration

300 mW Power Dissipation

Ideally Suited for Automated Insertion

V

For Both Diodes in One Case is



Common Anode Style Available, See AZ Series

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3 & 4)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 lead frame

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Polarity: See Diagram

Weight: 0.008 grams (approximate)

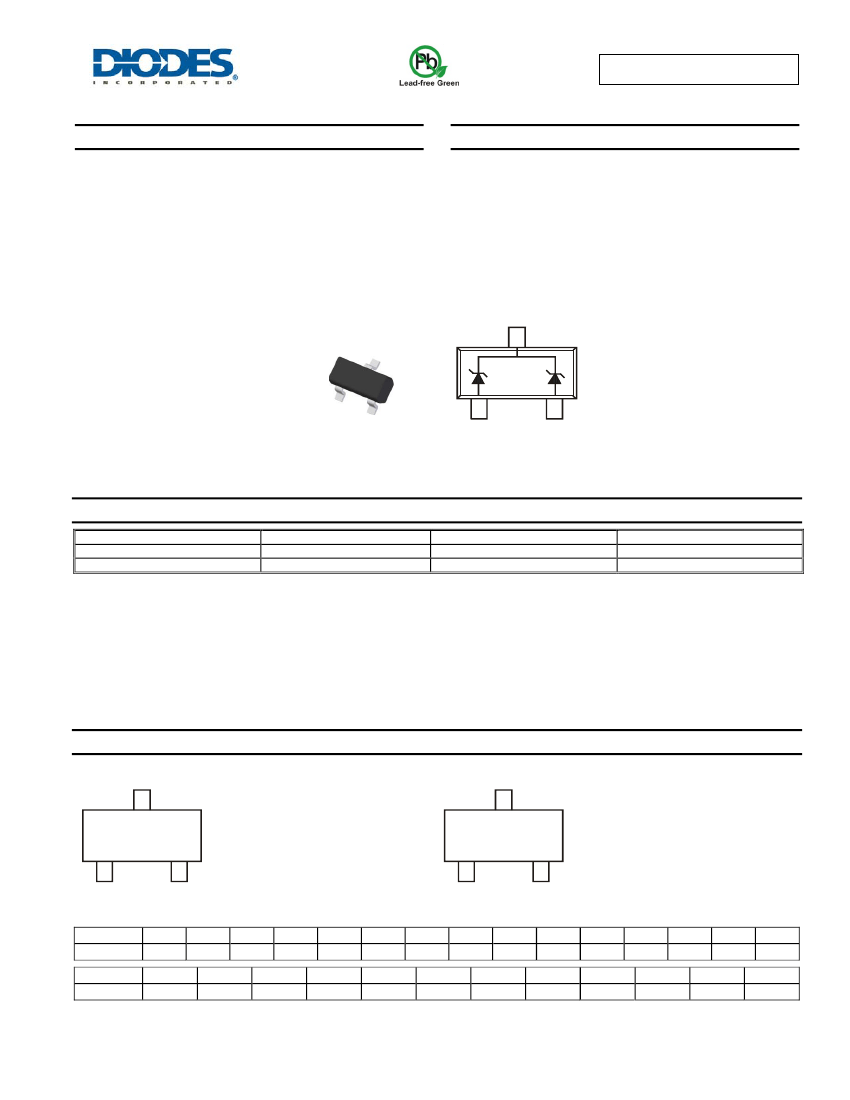

SOT23

Top View

Device Schematic

Ordering Information

(Note 5)

Device

(Type Number)-7-F*

(Type Number)Q-7-F*

Notes:

Qualification

Commercial

Automotive

Packaging

SOT23

Shipping

3000/Tape & Reel

*Add “-7-F” to the appropriate type number in Electrical Characteristics Table on Page 2. Example: 6.2V Zener = DZ23C6V2-7-F.

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Product manufactured with Date Code OW (week 42, 2009) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code OW are built with Non-Green Molding Compound and may contain Halogens or Sb

Fire Retardants.

5. For Packaging Details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

Kxx

K = SAT (Shanghai Assembly / Test site)

xx = Product Type Marking Code

See Electrical Characteristics Table

YM = Date Code Marking

Y = Year (ex: Z = 2012)

M = Month (ex: 9 = September)

Cxx

C = CAT (Chengdu Assembly / Test site)

xx = Product Type Marking Code

See Electrical Characteristics Table

YM = Date Code Marking

Y = Year (ex: Z = 2012)

M = Month (ex: 9 = September)

Date Code Key

Year

1998

Code

Month

Code

Jan

…

Feb

2002

2003

Mar

2004

Apr

…

May

2010

Jun

2011

2012

Jul

2013

Aug

2014

Sep

2015

Oct

2016

2017

Nov

2018

Dec

DZ23C2V7 - DZ23C51

Document number: DS18002 Rev. 20 - 2

1 of 5

www.diodes.com

July 2013
