MALE PCB
PINS

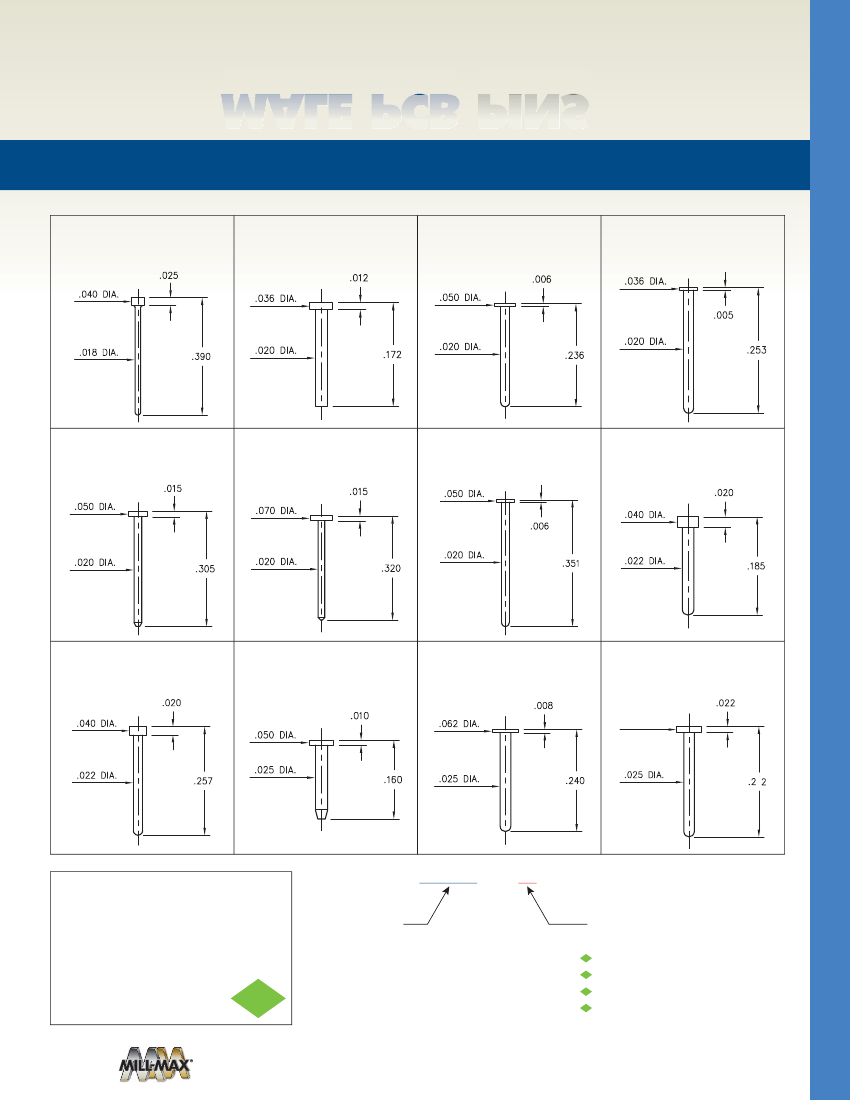

PRINTED CIRCUIT PINS • NAIL HEAD TYPE
4209
4209-0-00-XX-00-00-33-0
Solder mount in .022 mounting hole
5063
5063-0-00-XX-00-00-33-0
Solder mount in .024 mounting hole
4965
4965-0-00-XX-00-00-33-0
Solder mount in .024 mounting hole
6547
6547-0-00-XX-00-00-33-0
Solder mount in .024 mounting hole
4071
4071-0-00-XX-00-00-33-0
Solder mount in .024 mounting hole
8808
8808-0-00-XX-00-00-33-0
Solder mount in .024 mounting hole
4964
4964-0-00-XX-00-00-33-0
Solder mount in .024 mounting hole
9185
9185-0-00-XX-00-00-33-0
Solder mount in .026 mounting hole
8257
8257-0-00-XX-00-00-33-0
Solder mount in .026 mounting hole
5035
5035-0-00-XX-00-00-33-0
Solder mount in .029 mounting hole
5240
5240-0-00-XX-00-00-33-0
Solder mount in .029 mounting hole
2650
2650-0-00-XX-00-00-33-0
Solder mount in .029 mounting hole
.072 DIA.
7
SPECIFICATIONS:
Pin Material:
Brass Alloy 360, 1/2 Hard
( Except where noted )
Dimensions: Inches
Tolerances On:
Lengths: ± .005
Diameters: ± .002
Angles:
±2°
RoHS - 2
2011/65/EU
ORDER CODE: XXXX - X - 00 -
XX
- 00 - 00 - XX - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200
”
TIN/LEAD OVER NICKEL
80
200
”
TIN OVER NICKEL (RoHS)
15
10
”
GOLD OVER NICKEL (RoHS)
21
20
”
GOLD OVER NICKEL (RoHS)
34
50
”
GOLD OVER NICKEL (RoHS)
