UPA1C562MHD1CC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPA1C562MHD1CC

UPA1C562MHD1CC: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 5600uF,; CategoryPassive components capacitor; File Size53KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UPA1C562MHD1CC Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 5600uF,

UPA1C562MHD1CC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	763889028
package instruction	,
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	6.7
capacitance	5600 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM (WET)
length	31.5 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	2810 mA
Terminal pitch	7.5 mm

Preview

Download Datasheet

View All

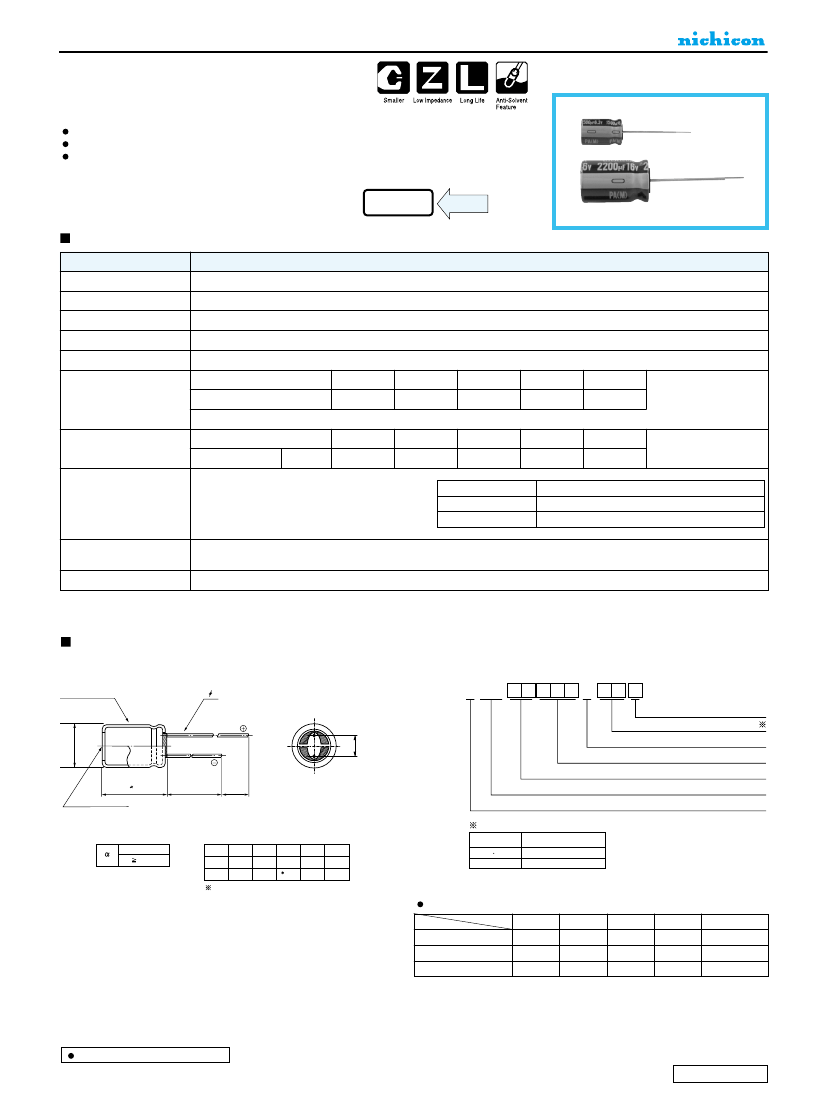

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, Low lmpedance,

High Reliability For Switching Power Supplies

series

Lower impedance than PW series.

Smaller case size and high ripple current.

Compliant to the RoHS directive (2011/65/EU).

Specifications

ltem

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Low

Impedance

Performance Characteristics

– 55 to +105˚C

6.3 to 35V

180 to 10000µF

± 20% at 120Hz, 20˚C

After 1 minute's application of rated voltage, leakage current is not more than 0.03CV or 4 (µA), whichever is greater.

Rated voltage (V)

6.3

0.22

0.19

0.16

0.14

0.12

120Hz 20˚C

Tangent of loss angle (tan

δ)

tan

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Stability at Low Temperature

6.3

Capacitance change

tan

Leakage current

120Hz

Impedance ratio ZT / Z20 (MAX.) Z–55˚C / Z+20˚C

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus

rated ripple current is applied for 5000 hours (3000

hours for

φD=8,

4000 hours for

φD=10)

at 105˚C, the

peak voltage shall not exceed the rated voltage.

Within ± 20% of the initial capacitance value (6.3V, 10V : ± 30%)

200% or less than the initial specified value (6.3V, 10V : 300%)

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Type numbering system (Example : 10V 470µF)

10 11

Sleeve (P.E.T.)

U PA 1 A 4 7 1 M P D

Size code

Configuration

0.5

+ 0.5MAX.

Capacitance tolerance (± 20%)

Rated capacitance (470µF)

Rated voltage (10V)

Pressure relief vent

MAX.

MIN

Series name

Type

Configuration

(mm)

(L < 20) 1.5

(L 20) 2.0

Pb-free leadwire

Pb-free PET sleeve

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

8 10

12.5 to 18

In case L > 25 for the

φ12.5

dia. unit, lead dia.

d = 0.8mm.

Frequency coefficient of rated ripple current

Cap. (µF)

Frequency

50Hz

0.55

0.70

0.80

120Hz

0.65

0.75

0.85

300Hz

0.75

0.80

0.90

1kHz

0.85

0.90

0.95

10kHz or more

1.00

•

Please refer to page 20 about the end seal configuration.

180 to 330

390 to 1000

1200 to 10000

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100C
