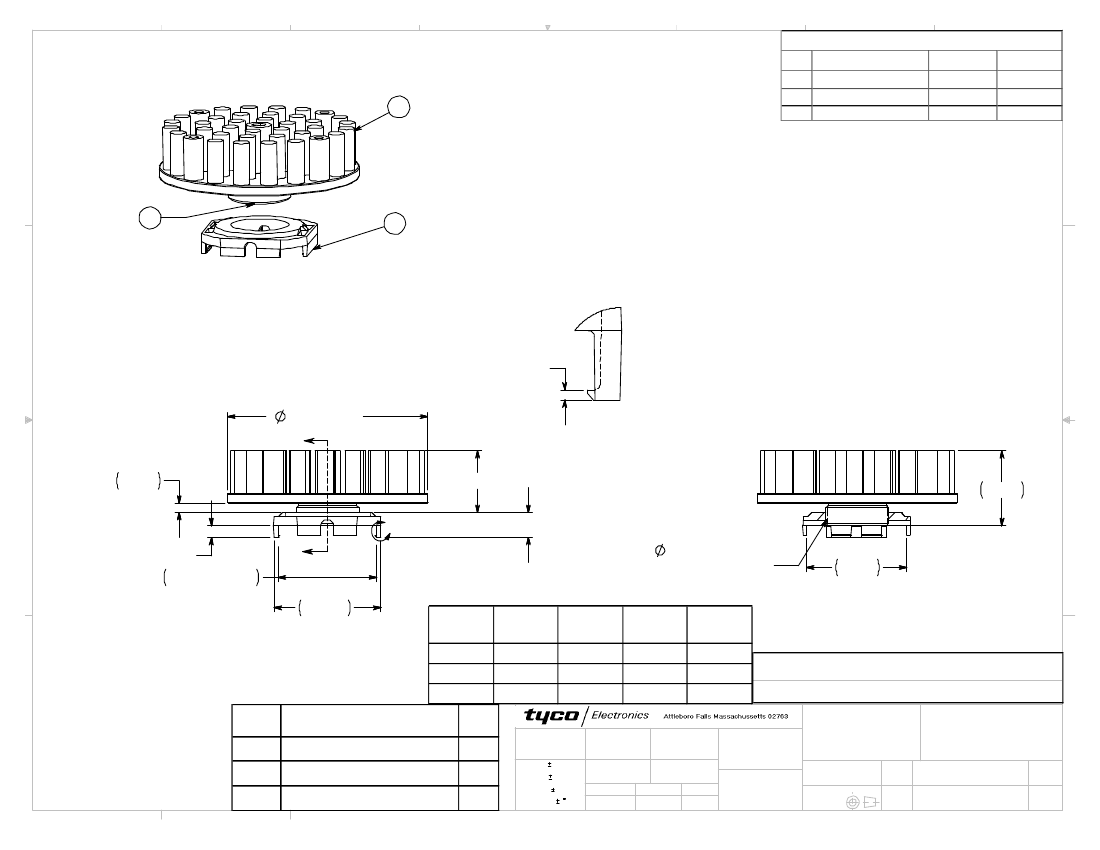

PIN-FIN HS:
2.000 DIA.
0.750 HT.
NOTE:
1. MATERIAL:
A
D
HEAT SINK: ALUM. (BLACK ANODIZE)
CLIP:
BLACK PEI (UL94-VO)
3
1
4-LEG CLIP SIZE: 25mm
2. BEFORE THE HEATSINK APPLICATION, THE USER
SHOULD IDENTIFY THE SPECIFICATION OF MAXIMUM
LOAD ON THE BGA PACKAGE.
HEATSINK TORQUE SPECIFICATIONS CONVERTED TO FORCE.
BARE DIE PACKAGE:
1.5 INCH - LB TORQUE = 8.5 LBS FORCE
2.0 INCH - LB TORQUE =11.4 LBS FORCE
FULL SIZE LID PACKAGE:
1.5 INCH - LB TORQUE = 8.3 LBS FORCE
2.0 INCH - LB TORQUE = 11.1 LBS FORCE
C
C
.016±.002
2.000±.020
B
.095
B
3. REMOVE CLIP WITH REMOVAL TOOL P/N: 1542616-1.
4. RoHS COMPLIANT AND CERTIFIED.
DETAIL A
SCALE =6X
.620 MAX
A
.245 ±.005
5/8" - 27 UNS-2A
THREAD
1.069
.998
SECTION B-B
.750
B
.115 ±.005
.983 LIP LEG
B
° C/W @ ° C/W @ ° C/W @ ° C/W @
Power
Ambient 200 LFM 400 LFM 600 LFM
5 Watts
8.85
4.55
3.45
2.55
10 Watts
15 Watts
7.97
7.41
DO NOT SCALE
A
4.52
4.57
DRAWN BY:
3.39
3.34
DATE
2.45
2.42
MATERIAL:
2/25/05
CUSTOMER DRAWING
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
CONFIDENTIAL PROPERTY OF TYCO
ELECTRONICS. NOT TO BE DISCLOSED
TO OTHERS. REPRODUCED OR USED FOR
ANY PURPOSES EXCEPT AS AUTHORIZED
IN WRITING BY AN AUTHORIZED OFFICIAL
OF TYCO. MUST BE RETURNED TO TYCO
ON DEMAND, ON COMPLETION OF ORDERS
OR OTHER PURPOSES FOR WHICH LENT.
DIMENSONS ARE IN:
TITLE:
A
ITEM
1
2
3
8
7
DESCRIPTION
MOUNTING CLIP
HEAT SINK
INTERFACE
QTY
1
1
1
UNLESS OTHERWISE
SPECIFIED
TOLERANCES ARE:
.XX
.XXX
.XXXX
ANGLES
.
.
.
E.TAO
ENGINEER:
DATE
SEE NOTE
FINISH:
25mm PIN FIN
HEATSINK ASSEMBLY
(HTS285NF-D)
5-1542001-3
SHEET:
B.PETROCELLI
FILENAME
PROJECT
6/15/05
SYSTEM
INCHES
SEE NOTE
TNIRD ANGLE
PROJECTION
SCALE:
1:1
SIZE:
PART NO:
1 OF 1
A
DWG. NO.
C-5-1542001-3
