2MJ-2524U110 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2MJ-2524U110

2MJ-2524U110: DescriptionCircular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

2MJ-2524U110 Overview

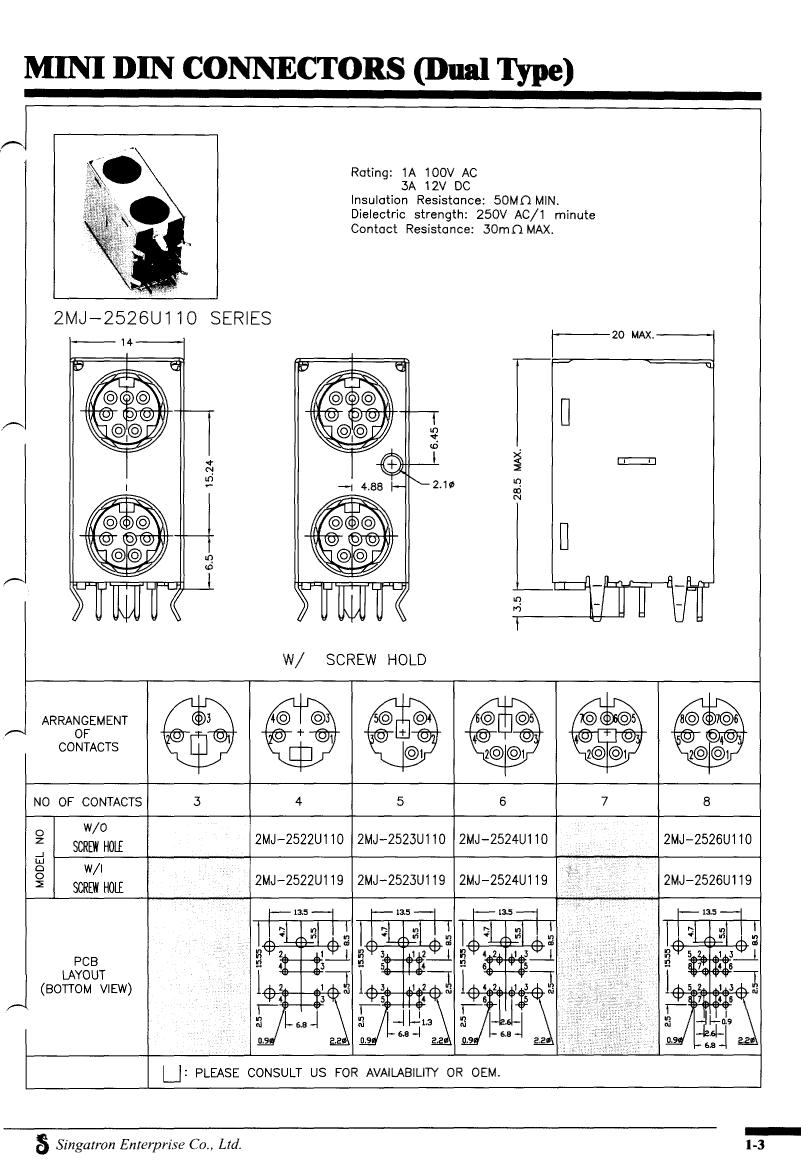

Circular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Receptacle

2MJ-2524U110 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	WITHOUT SCREW HOLE
body width	1.122 inch
subject depth	0.61 inch
body length	0.551 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	250VAC V
Insulation resistance	50000000 Ω
Manufacturer's serial number	2MJ-2524U110
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

2MJ-2524U110 Related Products

	2MJ-2524U110	2MJ-2526U110	2MJ-2522U110	2MJ-2523U110	2MJ-2526U119	2MJ-2524U119	2MJ-2522U119	2MJ-2523U119
Description	Circular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Receptacle	Circular DIN Connector, 8+8 Contact(s), Female, Board Mount, Solder Terminal, Receptacle	Circular DIN Connector, 4+4 Contact(s), Female, Board Mount, Solder Terminal, Receptacle	Circular DIN Connector, 5+5 Contact(s), Female, Board Mount, Solder Terminal, Receptacle	Circular DIN Connector, 8+8 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 6+6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 4+4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 5+5 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITHOUT SCREW HOLE	WITHOUT SCREW HOLE	WITHOUT SCREW HOLE	WITHOUT SCREW HOLE	WITH SCREW HOLE	WITH SCREW HOLE	WITH SCREW HOLE	WITH SCREW HOLE
body width	1.122 inch	1.122 inch	1.122 inch	1.122 inch	1.122 inch	1.122 inch	1.122 inch	1.122 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch	0.61 inch
body length	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Manufacturer's serial number	2MJ-2524U110	2MJ-2526U110	2MJ-2522U110	2MJ-2523U110	2MJ-2526U119	2MJ-2524U119	2MJ-2522U119	2MJ-2523U119
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	2	2	2	2	2	2	2	2
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	16	8	10	16	12	8	10
Base Number Matches	1	1	1	1	1	1	1	1
