5-1542001-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> 5-1542001-2

5-1542001-2: Description25mm HS assy A-temp; CategoryThermal management products; File Size41KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

5-1542001-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1542001-2	-	-	View	Buy Now

5-1542001-2 Overview

25mm HS assy A-temp

5-1542001-2 Parametric

Parameter Name	Attribute value
Datasheets

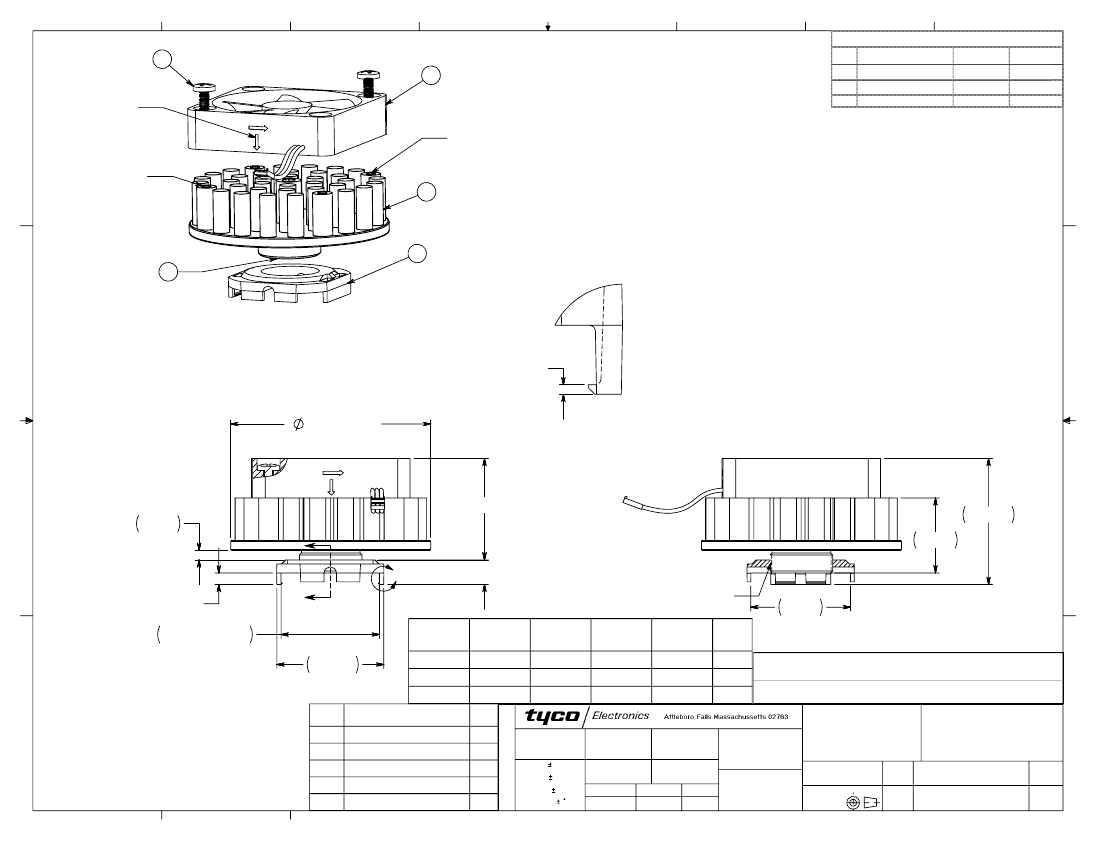

5-1542001-2 Drawing
RoHS Informati
5-1542001-2 Statement of Compliance
RoHS 2 Stateme
Standard Package	250
Category	Fans, Thermal Manageme
Family	Thermal - Heat Sinks
Other Names	HTS285BS-U

Preview

Download Datasheet

View All

LTR

REVISION(S)

DESCRIPTION

ECN: 0S60-0180-04

ECR-06-022996

INIT

APP'D

B.P 8/10/04

AIR FLOW

DIRECTION

FAN: 40X40X10mm, 12V, 3 WIRE

BALL/SLEEVE BEARING TYPE

1. MATERIAL:

E.T 8/6/04

E.T 9/28/06 V.K 8/28/06

ALIGN SCREW

WITH HOLE

ALIGN SCREW

WITH HOLE

HEAT SINK: ALUM. (BLACK ANODIZE)

CLIP:

BLACK PEI (UL94-VO)

2. BEFORE THE HEATSINK APPLICATION, THE USER

SHOULD IDENTIFY THE SPECIFICATION OF MAXIMUM

LOAD ON THE BGA PACKAGE.

HEATSINK TORQUE SPECIFICATIONS CONVERTED TO FORCE.

PIN FIN: 2.000 DIA.

0.750 HT.

4-LEG CLIP SIZE: 25mm

BARE DIE PACKAGE:

1.5 POUND-FORCE INCH TORQUE = 8.5 POUND-FORCE

(0.17 NEWTON TORQUE = 37.81 NEWTON)

2.0 POUND-FORCE INCH TORQUE = 11.4 POUND-FORCE

(0.23 NEWTON METER TORQUE = 50.71NEWTON)

FULL SIZE LID PACKAGE:

1.5 POUND-FORCE INCH TORQUE = 8.3 POUND-FORCE

(0.17 NEWTON TORQUE = 36.92NEWTON)

.016±.002

2.0 POUND-FORCE INCH TORQUE = 11.1 POUND-FORCE

(0.23 NEWTON METER TORQUE = 49.38NEWTON)

3. REMOVE CLIP WITH REMOVAL TOOL P/N: 1542616-1.

2.000±.020

DETAIL A

SCALE = 6X

4. RoHS COMPLIANT AND CERTIFIED.

1.014 MAX

.095

1.259

.750

.115±.005

.983 LIP LEG

1.069

.245±.005

5/8 - 27 UNS-2A

THREAD

W ITH

FAN

2.07

2.00

1.97

MATERIAL:

8/6/04

DATE

.998

SECTION B-B

° C/W @ ° C/W @ ° C/W @ ° C/W @

Power

Ambient 200 LFM 400 LFM 600 LFM

5 W atts

8.85

4.55

3.45

2.55

10 W atts

7.97

4.52

3.39

2.45

15 W atts

7.41

4.57

3.34

2.42

DESCRIPTION

MOUNTING CLIP

HEAT SINK

FAN

SCREWS

INTERFACE

CUSTOMER DRAWING

SPECIFICATIONS ARE SUBJECT TO CHANGE W ITHOUT NOTICE

CONFIDENTIAL PROPERTY OF TYCO

ELECTRONICS. NOT TO BE DISCLOSED

TO OTHERS. REPRODUCED OR USED FOR

ANY PURPOSES EXCEPT AS AUTHORIZED

IN WRITING BY AN AUTHORIZED OFFICIAL

OF TYCO. MUST BE RETURNED TO TYCO

ON DEMAND, ON COMPLETION OF ORDERS

OR OTHER PURPOSES FOR WHICH LENT.

DIMENSONS ARE IN:

ITEM

QTY

DO NOT SCALE

TITLE:

UNLESS OTHERWISE

SPECIFIED

TOLERANCES ARE:

.XX

.XXX

.XXXX

ANGLES

DRAWN BY:

DATE

E.TAO

ENGINEER:

SEE NOTE

FINISH:

25mm PIN FIN

HEATSINK ASSEMBLY

(HTS285BS-U)

PART NO:

B.PETROCELLI

FILENAME

8/10/04

SYSTEM

INCHES

SEE NOTE

TNIRD ANGLE

PROJECTION

SCALE:

1:1

SIZE:

5-1542001-2

SHEET:

1 OF 1

PROJECT

DWG. NO.

C-5-1542001-2

REV:
