CGS3312M: Description12.5 MHz, OTHER CLOCK GENERATOR, PDSO8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size115KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CGS3312M Overview

12.5 MHz, OTHER CLOCK GENERATOR, PDSO8

CGS3312M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	0.150 INCH, MS-012, SOIC-8
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	110 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Master clock/crystal nominal frequency	110 MHz
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

View All

CGS3311 • CGS3312 • CGS3313 • CGS3314 • CGS3315 • CGS3316 • CGS3317 • CGS3318 • CGS3319 CMOS Crystal

Clock Generators

September 1995

Revised March 1999

CGS3311 • CGS3312 • CGS3313 • CGS3314 • CGS3315 •

CGS3316 • CGS3317 • CGS3318 • CGS3319

CMOS Crystal Clock Generators

General Description

The CGS3311, CGS3312, CGS3313, CGS3314,

CGS3315, CGS3316, CGS3317, CGS3318 and CGS3319

devices are designed for Clock Generation and Support

(CGS) applications up to 110 MHz. The CGS331x series of

devices are crystal controlled CMOS oscillators requiring a

minimum of external components. The 331x devices pro-

vide selectable output divide ratio (and selectable crystal

drive level). The circuit is designed to operate over a wide

frequency range using fundamental model or overtone

crystals.

Features

Fairchild’s CGS family of devices for high frequency

clock source applications

Crystal frequency operation range:

fundamental: 10 MHz to 100 MHz typical

3rd or 5th overtone: 10 MHz to 85 MHz

Programmable oscillator drive

Selectable fast output edge rates

Output symmetry circuit to adjust 50% duty cycle point

between CMOS and TTL levels

Output current drive of 48 mA for I

FACT™ CMOS output levels

Output has high speed short circuit protection

Basic oscillator type: Pierce

Hysteresis inputs to improve noise margin

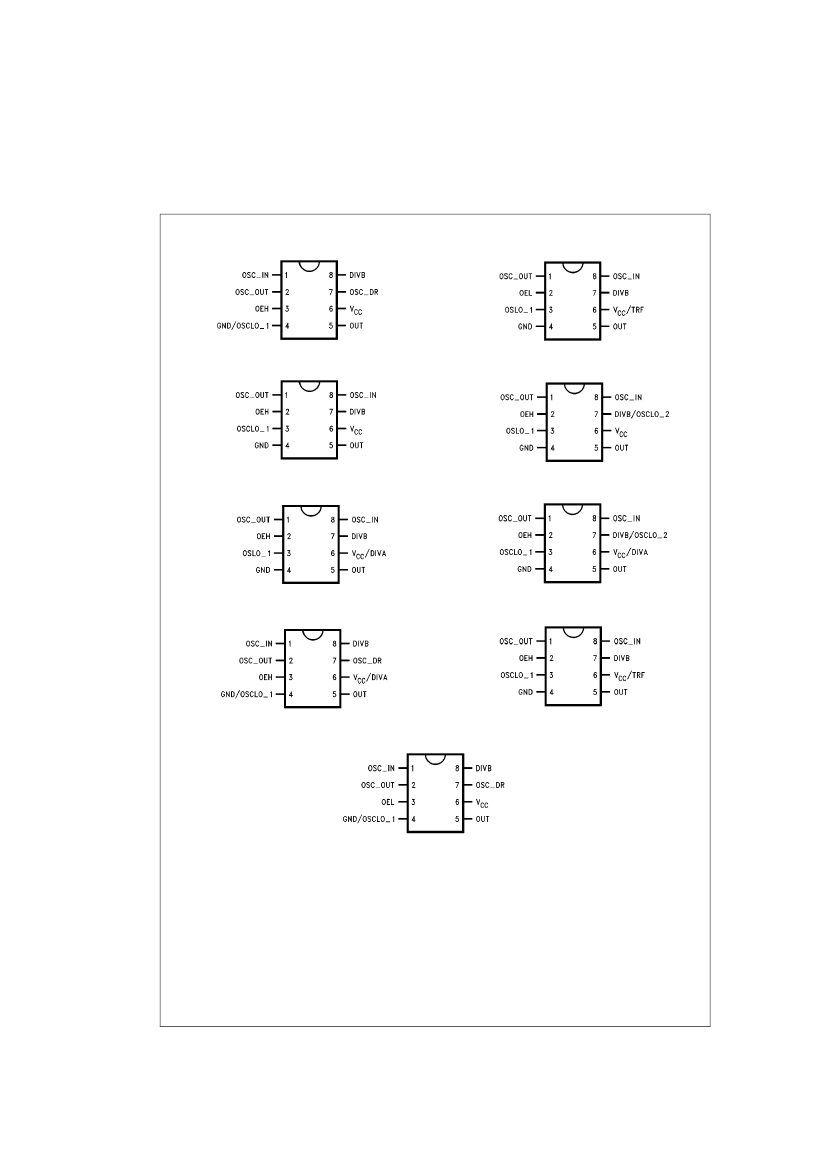

Ordering Code:

Order Number

CGS3311M

CGS3312M

CGS3313M

CGS3314M

CGS3315M

CGS3316M

CGS3317M

CGS3318M

CGS3319M

Package Number Package Description

M08A

8-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

FACT™ is a trademark of Fairchild Semiconductor Corporation.

DS010980.prf

www.fairchildsemi.com

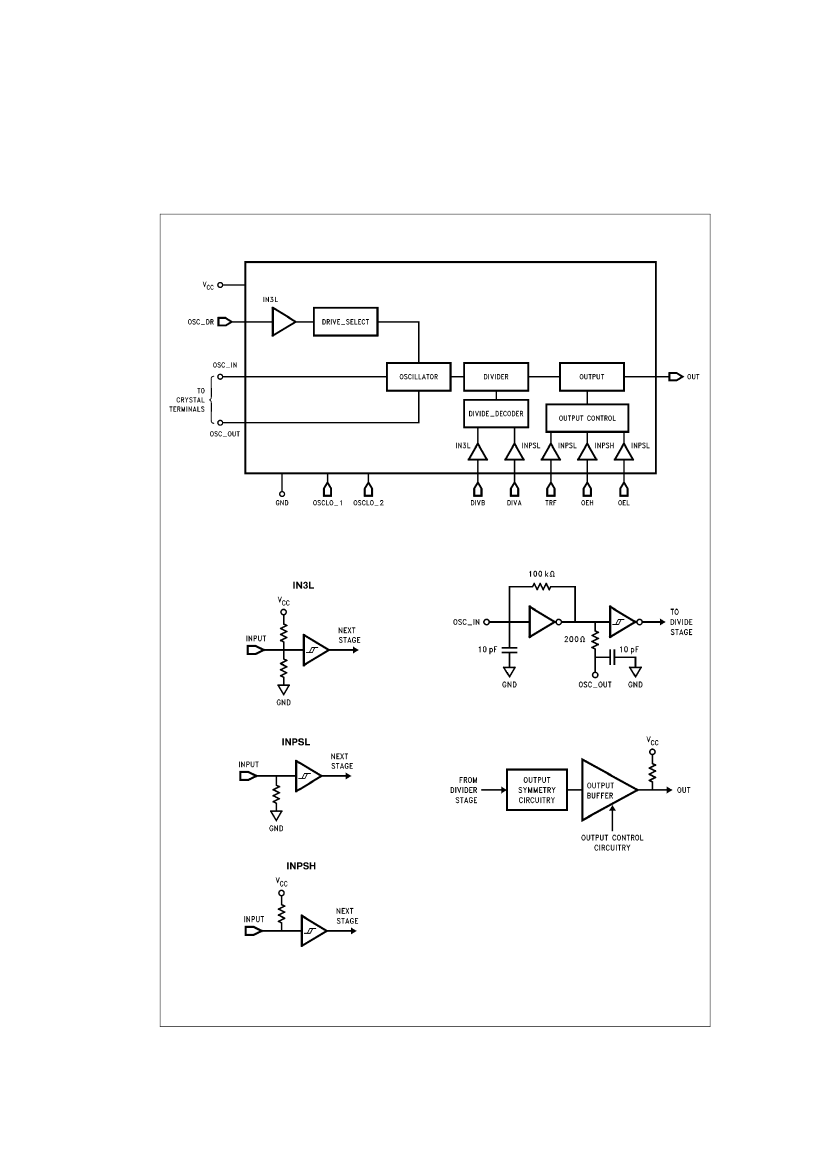

CGS3312M Related Products

	CGS3312M	CGS3311	CGS3311M	CGS3315M	CGS3313M	CGS3316M	CGS3317M
Description	12.5 MHz, OTHER CLOCK GENERATOR, PDSO8	12.5 MHz, OTHER CLOCK GENERATOR, PDSO8	110 MHz, OTHER CLOCK GENERATOR, PDSO8	12.5 MHz, OTHER CLOCK GENERATOR, PDSO8	12.5 MHz, OTHER CLOCK GENERATOR, PDSO8	12.5 MHz, OTHER CLOCK GENERATOR, PDSO8	12.5 MHz, OTHER CLOCK GENERATOR, PDSO8
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 Cel	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
surface mount	YES	Yes	YES	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	pair	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	conform to	-	conform to	incompatible	conform to	incompatible	incompatible
Maker	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	SOIC	-	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	0.150 INCH, MS-012, SOIC-8	-	0.150 INCH, MS-012, SOIC-8	0.150 INCH, MS-012, SOIC-8	0.150 INCH, MS-012, SOIC-8	SOP, SOP8,.25	0.150 INCH, MS-012, SOIC-8
Contacts	8	-	8	8	8	8	8
Reach Compliance Code	unknow	-	unknow	compli	unknown	unknow	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G8	-	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e3	-	e3	e0	e3	e0	e0
length	4.9 mm	-	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Maximum output clock frequency	110 MHz	-	110 MHz	110 MHz	13.75 MHz	27.5 MHz	3.4375 MHz
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP8,.25	-	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	-	260	-	260	NOT SPECIFIED	-
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V
Master clock/crystal nominal frequency	110 MHz	-	110 MHz	110 MHz	110 MHz	110 MHz	110 MHz
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	-	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	-	5 V	5 V	5 V	5 V	5 V
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
width	3.9 mm	-	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER	-	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER	CLOCK GENERATOR, OTHER
