PFB0612UHE-F00 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Thermal management products> PFB0612UHE-F00

Preview

PFB0612UHE-F00: Description12v DC fan 60x60x38 MM; CategoryThermal management products; File Size437KB，1 Pages; ManufacturerDELTA; Websitehttp://www.deltaww.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PFB0612UHE-F00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PFB0612UHE-F00	-	-	View	Buy Now

PFB0612UHE-F00 Overview

12v DC fan 60x60x38 MM

PFB0612UHE-F00 Parametric

Parameter Name	Attribute value
Datasheets
PFB 60x60x38MM
PFB0612UHE-F00
Product Photos
PFB0612UHE-F00
Other Related Documents
Part Number Break-Down and Other Notes
Product Training Modules
Fan Options
RoHS Informati
DC Fans RoHS Cert of Compliance
Standard Package	120
Category	Fans, Thermal Manageme
Family	DC Fans
Voltage - Rated	12VDC
Size / Dimensi	Square - 60mm L x 60mm H x 38mm W
Air Flow	67.8 CFM (1.92m³/min)
Static Pressure	2.129 in H2O (530.3 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Noise	61.5 dB(A)
Power (Watts)	16.8W
RPM	12000 RPM
Terminati	3 Wire Leads
Ingress Protecti	-
Weigh	0.287 lb (130.18g)
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)
Current Rating	1.4A
Voltage Range	7 ~ 13.2VDC
Life Expectancy	50000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Dynamic Catalog	PFB Series
Associated Produc	1053-1401-ND - FAN GUARD 60MM WIRE MESH BLACK1053-1400-ND - FAN GUARD 60MM WIRE MESH NATURAL1053-1392-ND - FAN FILTER 60MM 45PPI1053-1391-ND - FAN FILTER 60MM 30PPI1053-1379-ND - FAN GUARD PLASTIC 60MM1053-1378-ND - FAN GUARD METAL 60MM381-2395-ND - FAN FILTER ASSEMBLY 60MM09250-F/100-ND - FINGER/FLTR ASM 60MM PLAS 100PPI259-1625-ND - FAN GUARD 60MM METAL09250-R-ND - PLASTIC FAN GUARD RETAINER 60MMQ834-ND - FAN FILTER MILL (NO FINISH) 60MM06250-C-ND - FAN FILTER IRRIDITE CLEAR 60MMQ833-ND - FAN FILTER ANODIZED BLACK 60MMQ329-ND - FILTER GUARD EMI 60MMQ324-ND - FILTER MEDIA 60MM WHITEQ319-ND - FINGER GUARD 60MM BLACK08212-ND - FAN GUARD 60MMCR190-ND - FINGER GUARD 60MM PLASTICRMS-060-NV-ND - FILTER METAL SCREEN 60X60RFG-060-NV-ND - FINGER GUARD 60X60RFF-060-NV-ND - FILTER FELT 60X60RCPF-060-NV-ND - ASSY GUARD/COVER/FILTER 60X60RCP-060-NV-ND - ASSY GUARD/CVR/SCREEN/FLTR 60X60381-2527-ND - FAN GUARD 60MM METALRMF-60/10-ND - FILTER, METALLICRFG-60-ND - FAN FINGER GUARD 60 X 608467K-ND - GUARD FAN FOR 2 1/2" FAN PLASTIC8465K-ND - GUARD ASSY 2.36"SQ FOR 2 1/2"FAN8449K-ND - GUARD FINGER FOR 2 1/2" FAN METCR373-ND - FA

Preview

Download Datasheet

View All

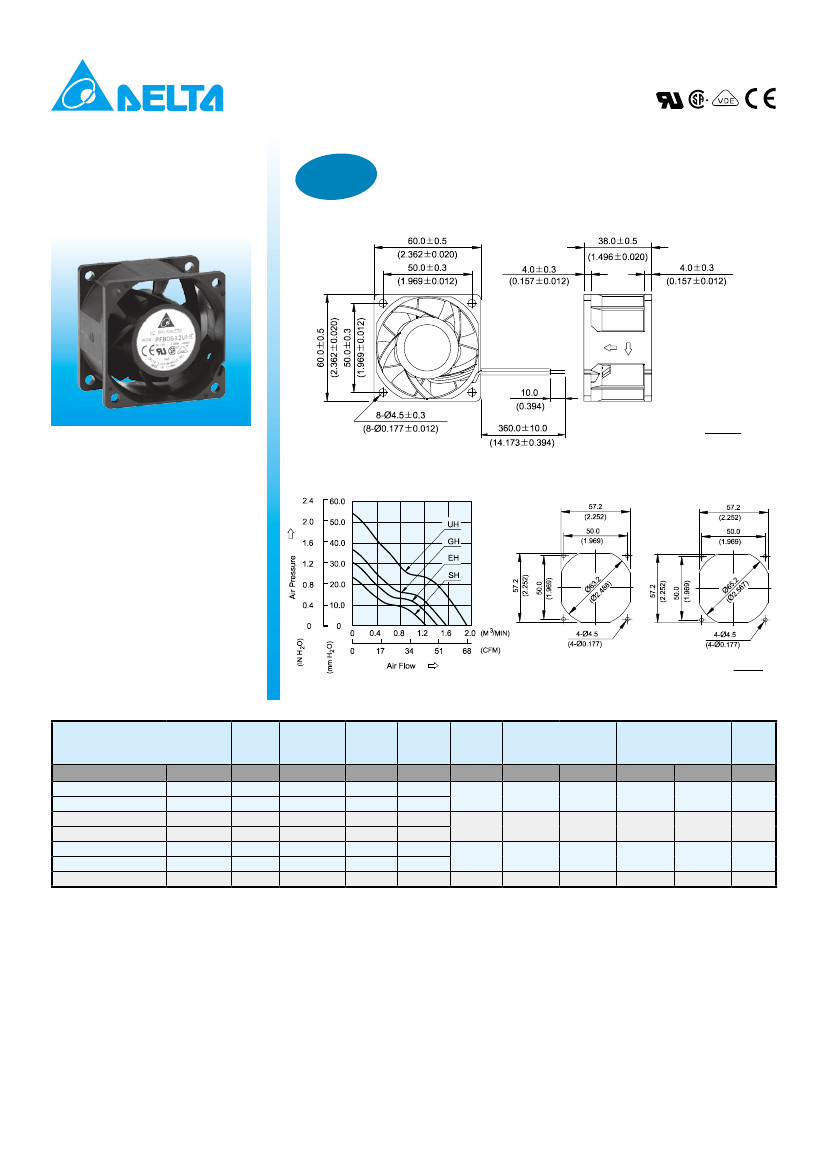

PFB

60 x 60 x 38 MM SERIES

DRAWING

■

DIMENSIONS

LABEL

UNIT :

mm

(INCH)

*

Bearing Type

Ball Bearings

*

Material

Impeller & Frame: Plastic (UL 94V-0)

Lead Wires :

*

UL 1007 AWG #24 OR Equivalent

Red Wire Positive(+)

Black Wire Negative(-)

*

Weight : 130g (4.59 oz)

■

P

& Q CURVE

(AT RATED VOLTAGE)

PFB0612/24XE

■

MOUNTING

OUTLET SIDE

PANEL CUTOUT

INLET SIDE

UNIT:

mm

(INCH)

MODEL

PART NO.

PFB0612SHE

PFB0624SHE

PFB0612EHE

PFB0624EHE

PFB0612GHE

PFB0624GHE

PFB0612UHE

FUNCTION

-R00 / -F00

Rated

Voltage

VDCz

12

24

12

24

12

24

12

Operating

Voltage

Range

VDC

7.0 to 13.2

14.0 to 26.4

7.0 to 13.2

14.0 to 26.4

7.0 to 13.2

14.0 to 26.4

7.0 to 13.2

Rated

Current

Amp

0.48

0.28

0.63

0.36

0.85

0.48

1.40

Rated

Input

Power

Watt

5.76

6.72

7.56

8.64

10.20

11.52

16.80

Speed

R.P.M.

8000

9000

10000

12000

Maximum

Air Flow

m

3

/min

1.234

1.428

1.575

1.922

CFM

43.57

50.43

55.62

67.85

Maximum

Air Pressure

mmH

2

O

23.32

30.56

36.68

54.10

IN H

2

O

0.918

1.203

1.444

2.129

Noise

dB-A

50.5

54.0

57.5

61.5

* Function type is optional.

* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.

* Noise is measured in anechoic chamber in free air, one meter from intake side.

* All readings are typical values at rated voltage.

* Specifications are subject to change without notice.

102

http://www.deltaww.com

PFB0612UHE-F00 Related Products

	PFB0612UHE-F00	PFB0612GHE-T500	PFB0624GHE-TD88
Description	12v DC fan 60x60x38 MM	fan DC axial 12v ip55 60x38mm	60x60x38mm 24vdc fan W/sst ip55
Standard Package	120	120	120
Category	Fans, Thermal Manageme	Fans, Thermal Manageme	Fans, Thermal Manageme
Family	DC Fans	DC Fans	DC Fans
Voltage - Rated	12VDC	12VDC	24VDC
Size / Dimensi	Square - 60mm L x 60mm H x 38mm W	Square - 60mm L x 60mm H x 38mm W	Square - 60mm L x 60mm H x 38mm W
Air Flow	67.8 CFM (1.92m³/min)	55.6 CFM (1.57m³/min)	55.6 CFM (1.57m³/min)
Static Pressure	2.129 in H2O (530.3 Pa)	1.444 in H2O (359.7 Pa)	1.444 in H2O (359.7 Pa)
Bearing Type	Ball	Ball	Ball
Fan Type	Tubeaxial	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach)	-	Speed Sensor (Tach)
Noise	61.5 dB(A)	57.5 dB(A)	57.5 dB(A)
Power (Watts)	16.8W	10.2W	10.3W
RPM	12000 RPM	10000 RPM	10000 RPM
Terminati	3 Wire Leads	2 Wire Leads	3 Wire Leads
Ingress Protecti	-	IP55 - Dust Protected, Water Resis	IP55 - Dust Protected, Water Resis
Weigh	0.287 lb (130.18g)	0.287 lb (130.18g)	0.287 lb (130.18g)
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)	14 ~ 140°F (-10 ~ 60°C)	14 ~ 140°F (-10 ~ 60°C)
Current Rating	1.4A	0.850A	0.430A
Voltage Range	7 ~ 13.2VDC	7 ~ 13.2VDC	14 ~ 26.4VDC
Life Expectancy	50000 hrs @ 40°C	50000 hrs @ 40°C	50000 hrs @ 40°C
Material - Frame	Plastic	Plastic	Plastic
Material - Blade	Plastic	Plastic	Plastic
Dynamic Catalog	PFB Series	PFB Series	PFB Series
Associated Produc	1053-1401-ND - FAN GUARD 60MM WIRE MESH BLACK1053-1400-ND - FAN GUARD 60MM WIRE MESH NATURAL1053-1392-ND - FAN FILTER 60MM 45PPI1053-1391-ND - FAN FILTER 60MM 30PPI1053-1379-ND - FAN GUARD PLASTIC 60MM1053-1378-ND - FAN GUARD METAL 60MM381-2395-ND - FAN FILTER ASSEMBLY 60MM09250-F/100-ND - FINGER/FLTR ASM 60MM PLAS 100PPI259-1625-ND - FAN GUARD 60MM METAL09250-R-ND - PLASTIC FAN GUARD RETAINER 60MMQ834-ND - FAN FILTER MILL (NO FINISH) 60MM06250-C-ND - FAN FILTER IRRIDITE CLEAR 60MMQ833-ND - FAN FILTER ANODIZED BLACK 60MMQ329-ND - FILTER GUARD EMI 60MMQ324-ND - FILTER MEDIA 60MM WHITEQ319-ND - FINGER GUARD 60MM BLACK08212-ND - FAN GUARD 60MMCR190-ND - FINGER GUARD 60MM PLASTICRMS-060-NV-ND - FILTER METAL SCREEN 60X60RFG-060-NV-ND - FINGER GUARD 60X60RFF-060-NV-ND - FILTER FELT 60X60RCPF-060-NV-ND - ASSY GUARD/COVER/FILTER 60X60RCP-060-NV-ND - ASSY GUARD/CVR/SCREEN/FLTR 60X60381-2527-ND - FAN GUARD 60MM METALRMF-60/10-ND - FILTER, METALLICRFG-60-ND - FAN FINGER GUARD 60 X 608467K-ND - GUARD FAN FOR 2 1/2" FAN PLASTIC8465K-ND - GUARD ASSY 2.36"SQ FOR 2 1/2"FAN8449K-ND - GUARD FINGER FOR 2 1/2" FAN METCR373-ND - FA	1053-1401-ND - FAN GUARD 60MM WIRE MESH BLACK1053-1400-ND - FAN GUARD 60MM WIRE MESH NATURAL1053-1392-ND - FAN FILTER 60MM 45PPI1053-1391-ND - FAN FILTER 60MM 30PPI1053-1379-ND - FAN GUARD PLASTIC 60MM1053-1378-ND - FAN GUARD METAL 60MM381-2395-ND - FAN FILTER ASSEMBLY 60MM09250-F/100-ND - FINGER/FLTR ASM 60MM PLAS 100PPI259-1625-ND - FAN GUARD 60MM METAL09250-R-ND - PLASTIC FAN GUARD RETAINER 60MMQ834-ND - FAN FILTER MILL (NO FINISH) 60MM06250-C-ND - FAN FILTER IRRIDITE CLEAR 60MMQ833-ND - FAN FILTER ANODIZED BLACK 60MMQ329-ND - FILTER GUARD EMI 60MMQ324-ND - FILTER MEDIA 60MM WHITEQ319-ND - FINGER GUARD 60MM BLACK08212-ND - FAN GUARD 60MMCR190-ND - FINGER GUARD 60MM PLASTICRMS-060-NV-ND - FILTER METAL SCREEN 60X60RFG-060-NV-ND - FINGER GUARD 60X60RFF-060-NV-ND - FILTER FELT 60X60RCPF-060-NV-ND - ASSY GUARD/COVER/FILTER 60X60RCP-060-NV-ND - ASSY GUARD/CVR/SCREEN/FLTR 60X60381-2527-ND - FAN GUARD 60MM METALRMF-60/10-ND - FILTER, METALLICRFG-60-ND - FAN FINGER GUARD 60 X 608467K-ND - GUARD FAN FOR 2 1/2" FAN PLASTIC8465K-ND - GUARD ASSY 2.36"SQ FOR 2 1/2"FAN8	-
